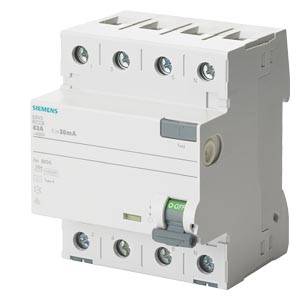

Siemens 5SV33473 5SV3347-3 RCCB F 80 A 0.03 A 400 V
EAN:
Part number:
Item no:
Product type
RCCB
Number of pins
4
Release characteristics
F
Differential current rating
0.03 A
Nominal current - rounded value
80 A
Datasheet (PDF)
Number
Total (€ 928.57 / piece)
€ 928.57
plus VAT.
14-day return policy included
Technical specifications
- Mechanical life (Cycles): 10000
- IP20, for distributor installation, with the connected conductors
- Product type
RCCB
- Number of pins
4
- Release characteristics
F
- Differential current rating
0.03 A
- Nominal current
80 A
- Nominal current - rounded value
80 A

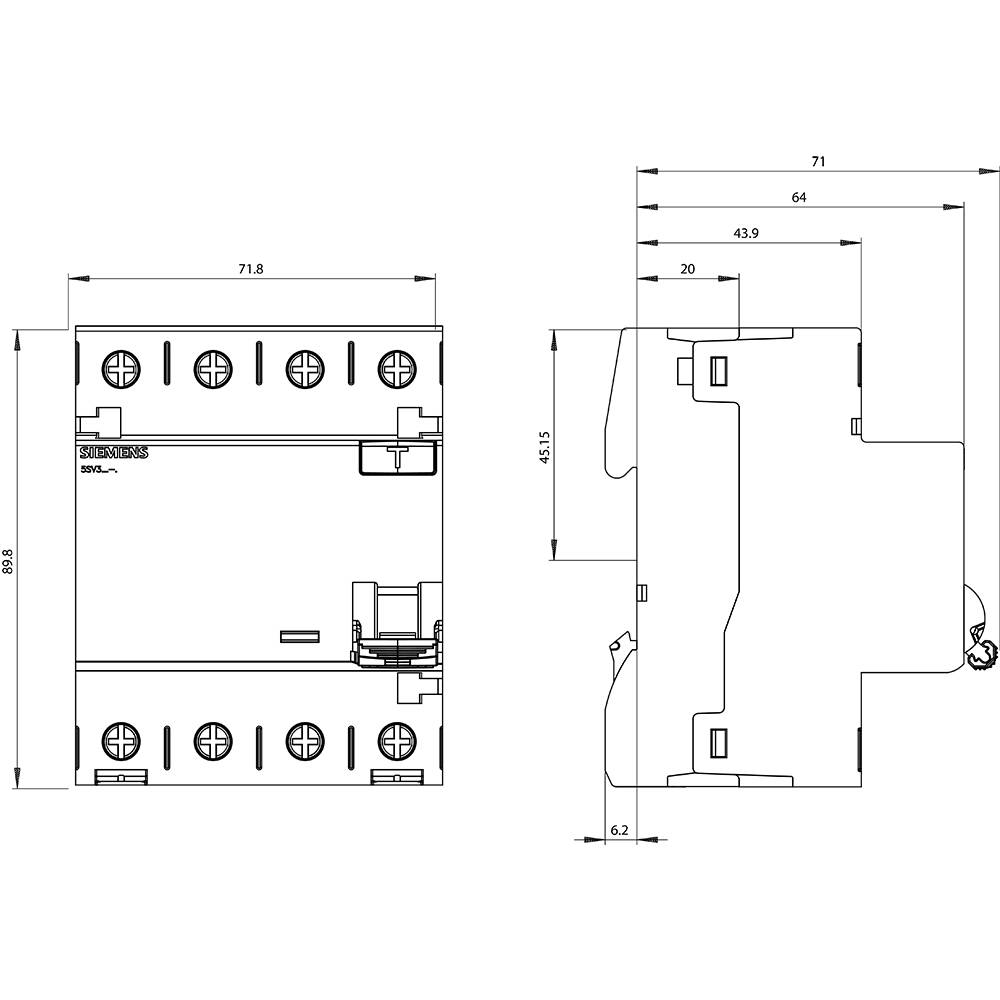

- Dim
(W x H x D) 72 x 90 x 70 mm
- Switch-off capacity
0.8 kA
- Content
1 pc(s)
- Nominal voltage
400 V
- Width
72 mm
- Height
90 mm
- Depth
70 mm
- RoHS-compliant
Yes
DIN rail
AC
70 mm
80 A
400 V
2000 V
4
0.03 A
F
FALSE
10 kA
3 kA
1
2
4
TRUE
7035
4.1 W
50 Hz
IP20
TRUE
TRUE
6
- UKCA
yes
