Buy V-TAC VT-13100 LED transformer Constant voltage 100 W 8.3 A 12 V DC not dimmable 1 pc(s)

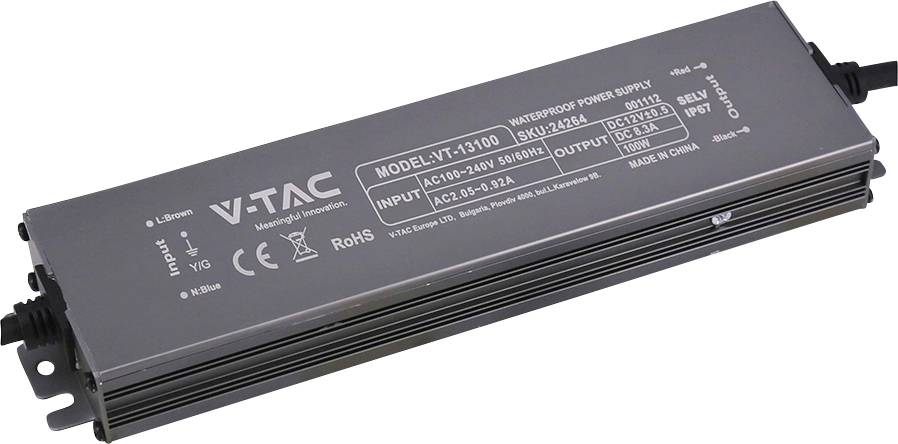

V-TAC waterproof power supply unit, model VT-13100, black metal casing with input and output specs printed on the label.

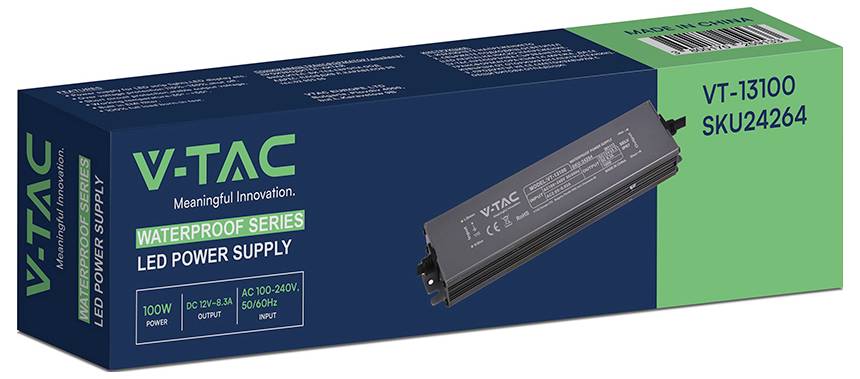

V-TAC waterproof series LED power supply box labeled VT-13100 SKU24264, 100W, with power supply unit shown<br>

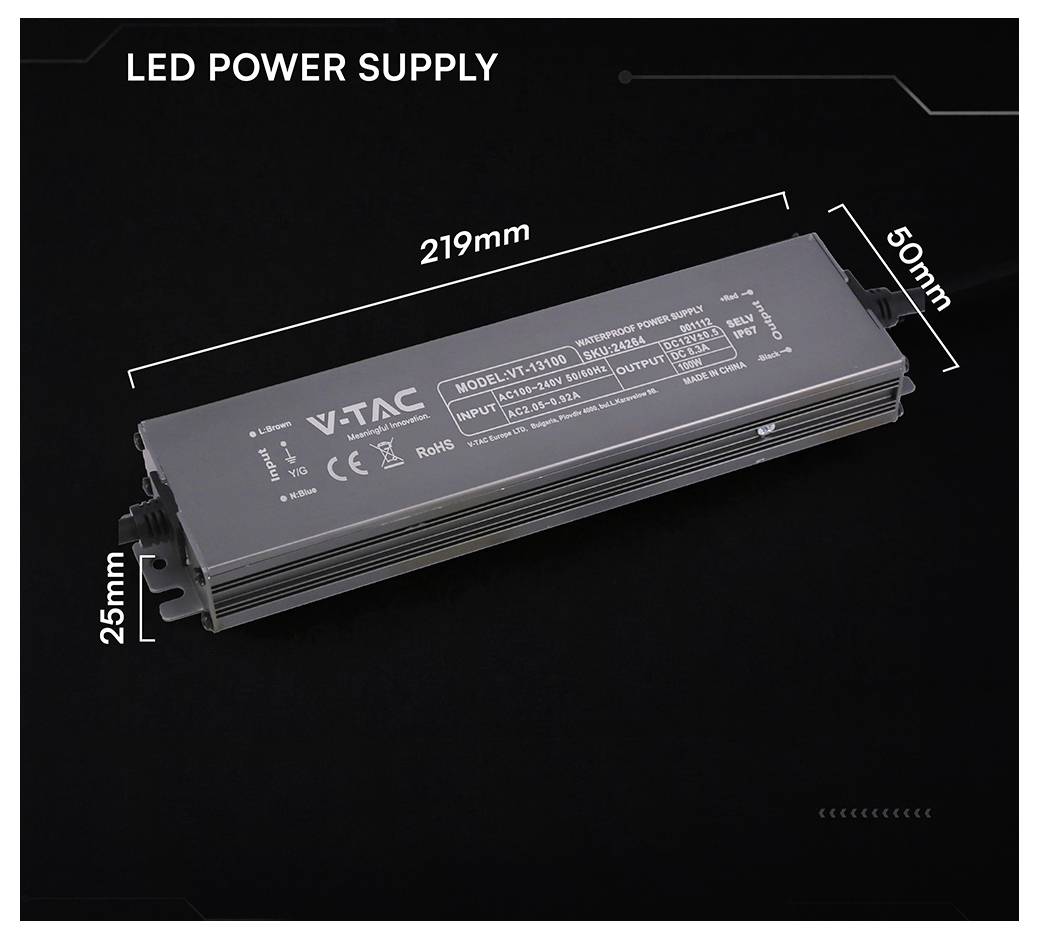

Product image of a rectangular LED power supply labeled VTAC, with dimensions marked as 219 mm long, 50 mm wide, and 25 mm high.<br>

1/3

Fast track dispatch on Tue, 22 Sep

30 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 24.36 / piece)

€ 24.36

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

VT-13100

Constant voltage
12 V DC
8.3 A

Technical specifications

Material: Metal
Lifetime 20000 h
On/off switching cycles >15000

Product type: LED transformer

Type: Constant voltage

Dim: (L x W x H) 219 x 50 x 25 mm

Factory colour: Black

Output voltage (max.): 12 V DC

Output voltage (min.): 12 V DC

Max. output current: 8.3 A

Output current (max.) - rounded: 8.3 A

Operating voltage: 240 V

Protection class: IP67

LED driver features: not dimmable

: IP67

Connection: Open end cable

Max. power: 100 W

No. of outputs: 1 x

Input voltage (max.): 240 V AC

Min. input voltage: 100 V AC

Weight: 0.51 kg

Power range: 100 W (max)

Width: 50 mm

Height: 25 mm

Length: 219 mm

Max. temperature: 55 °C

Min. temperature: -35 °C

: No

Material: Metal

Input voltage: 220 V

Output voltage: 12 V

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3781509 V-TAC VT-13100 LED transformer Constant voltage 100 W 8.3 A 12 V DC not dimmable 1 pc(s)

Description

Power supply for LED strips, LED displays, etc.
IP67 entry protection
Overvoltage protection 115%-135%, switched off
Short-circuit protection, stable output voltage
Built-in EMI filter
Higher efficiency, low temperature. 100% full load burn-in test...

This text is machine translated.

Hints

Caution!

Make sure you pick an LED driver/transformer that comes with the appropriate power rating.

Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.

Keep in mind that the switch-on surge tend to be much higher.
