Buy Einhell Air compressor TC-AC 420/50/10 V 50 l 10 bar

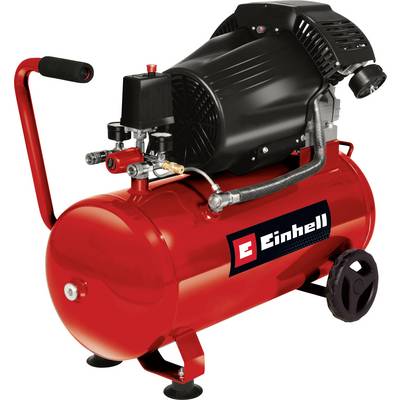

Portable Einhell air compressor with red tank, black motor housing, handle, wheels, and pressure controls on a white background.

Worker wearing safety mask and goggles drills into a tiled wall during demolition or renovation in a partially stripped interior.

Einhell compressor with red tank and black motor; suitable for air blasting gun, tyre inflator, paint and nail tools as well as grinders and pneumatic chisels.

Front view of a V-twin engine mounted on a red machine, with black cylinders, cooling fins, hoses, and intake tubes visible.

Red Einhell air compressor with tank, motor and wheels on a white background.

Close-up of two pressure gauges on a red air compressor or regulator, each showing pressure in psi and bar.

Close-up of a red cart or device with a large black treaded wheel on a white background.

Close-up of the underside of a red machine or appliance, showing a mounting bracket and black rubber feet on a white background.

Close-up of a red translucent bag or container with a valve and red pull ring at the bottom against a white background.

1/9

Fast track dispatch on Thu, 17 Sep

1 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 289.92 / piece)

€ 289.92

plus VAT.

Only 1 Piece(s) available

Report legal concerns

Highlights & Details

COMPRESSOR TC-AC 420/50/10 V

Boiler volume: 50 l

Technical specifications

Output power at 0 bar 245 L/min.
Output power at 4 bar 200 L/min.
Output power at 7 bar 150 L/min.
Protection type IP20
Oil volume approx. 0.4 l.

Product type: Air compressor

No. of cylinders: 2

: 2200 W

Vaccum power: 420 l/min

Operation pressure: 10 bar

Rotational speed (max.): 2850 U/min

Boiler volume: 50 l

Length: 780 mm

Width: 420 mm

Height: 650 mm

Weight: 41.75 kg

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2895722 Einhell Air compressor TC-AC 420/50/10 V 50 l 10 bar

Information

Information 2895722 Einhell Air compressor TC-AC 420/50/10 V 50 l 10 bar

Warranty Terms

Warranty Terms 2895722 Einhell Air compressor TC-AC 420/50/10 V 50 l 10 bar

Description

The TC-AC 420/50/10 V compressor is indispensable for work in the workshop or garage: With its 2200 W it produces a maximum operating pressure of 10 bar. The compressor has a high air output due to the dual compressor unit, and the 50 liter tank offers sufficient air reserves. The numerous compressed air applications can be regulated by the pressure reducer up to a maximum operating pressure of 10 bar. There is one pressure gauge and one quick coupling each for the regulated working pressure and the unregulated tank pressure. The integrated oil lubrication ensures the long life of the compressor and also offers the possibility of continuously checking the oil level through a sight glass. Safety during use is ensured by the check valve and the safety valve. Einhell is convinced of the high quality of the material and grants a 10 year guarantee against the corrosion of the boiler. A drain cock enables convenient maintenance of the compressor. Stability in use shows the compressor through the vibration-damped pedestal, which provide for a firm, safe stand. Large wheels and the transport handle, on the other hand, ensure easy transport.

This text is machine translated.
