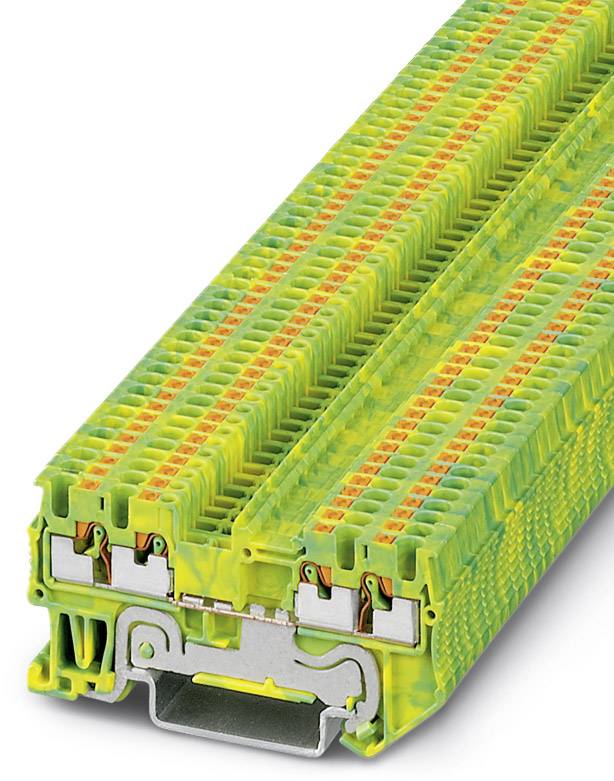

Ground modular terminal block PT 1,5/S-QUATTRO-PE 3208333 Phoenix Contact

Yellow and green terminal block with metal connection, used in electrical control cabinets for cable connection and power distribution.
Image similar
Product type
Triple port PG terminal
Connection
Quick-connect
Cross section (flexible) (max.)
1.5 mm²
Cross section (inflexible) (max.)
1.5 mm²
Content
50 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Thu 12 Nov
978 Set(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 50 pc(s))
Total (€ 3.40 / piece)
€ 169.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Product type

Triple port PG terminal

Features

+ push-in spring bracket

Connection

Quick-connect

Cross section (flexible) (min.)

0.14 mm²

Cross section (flexible) (max.)

1.5 mm²

Cross section (inflexible) (min.)

0.14 mm²

Cross section (inflexible) (max.)

1.5 mm²

AWG (min.)

26

AWG max.

14

Clamp width

3.5 mm

No. of rows

1

Number of pins

4

Factory colour

Green

Yellow

Min. stripping length

8 mm

Stripping length (max.)

10 mm

Manufacturer part #

3208333

Content

50 pc(s)

Industrial packaging

Yes

Type

PT 1,5/S-QUATTRO-PE

Dim

(L x W x H) 63.2 x 3.5 x 30.5 mm

Width

3.5 mm

Height

30.5 mm

Length

63.2 mm

Flammability rating

V0

Insulation material

PA

Insulation

PA

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 716780 Ground modular terminal block PT 1,5/S-QUATTRO-PE 3208333 Phoenix Contact

User & Safety Instructions

User & Safety Instructions 716780 Ground modular terminal block PT 1,5/S-QUATTRO-PE 3208333 Phoenix Contact

Description

Ground modular terminal block, Connection method: Push-in connection, Cross section: 0.14 mm² - 1.5 mm², AWG: 26 - 16, Width: 3.5 mm, Color: green-yellow, Mounting type: NS 35/7,5, NS 35/15
