Kaiser Nienhaus Classic Mercato Primus 110010 Tubular motor set 60 mm 10 Nm
EAN:
Part number:
Item no:
Number
Total (€ 53.77 / piece)
€ 53.77
plus VAT.
Highlights & Details
Primus Classic-eco-set
- Light-weight model
- Adjustable end-points
- Maintenance free motor
Technical specifications
- Shutter shaft 60mm Ø
- Product type
Tubular motor set
- Suitable for shutter axle Ø
60 mm
- Dim
(Ø x L) 45 mm x 510 mm
- Rotational speed
15 U/min
- Length
510 mm
- Max. current consumption
0.6 A
- Limit switched
mechanical
- Obstacle detection
No
- Operating voltage
230 V AC
- (Ø)
45 mm
- Hub
Not required
- Torque
10 Nm
- Lead length
2 m
- Current consumption
140 W
- Type
PRIMUS

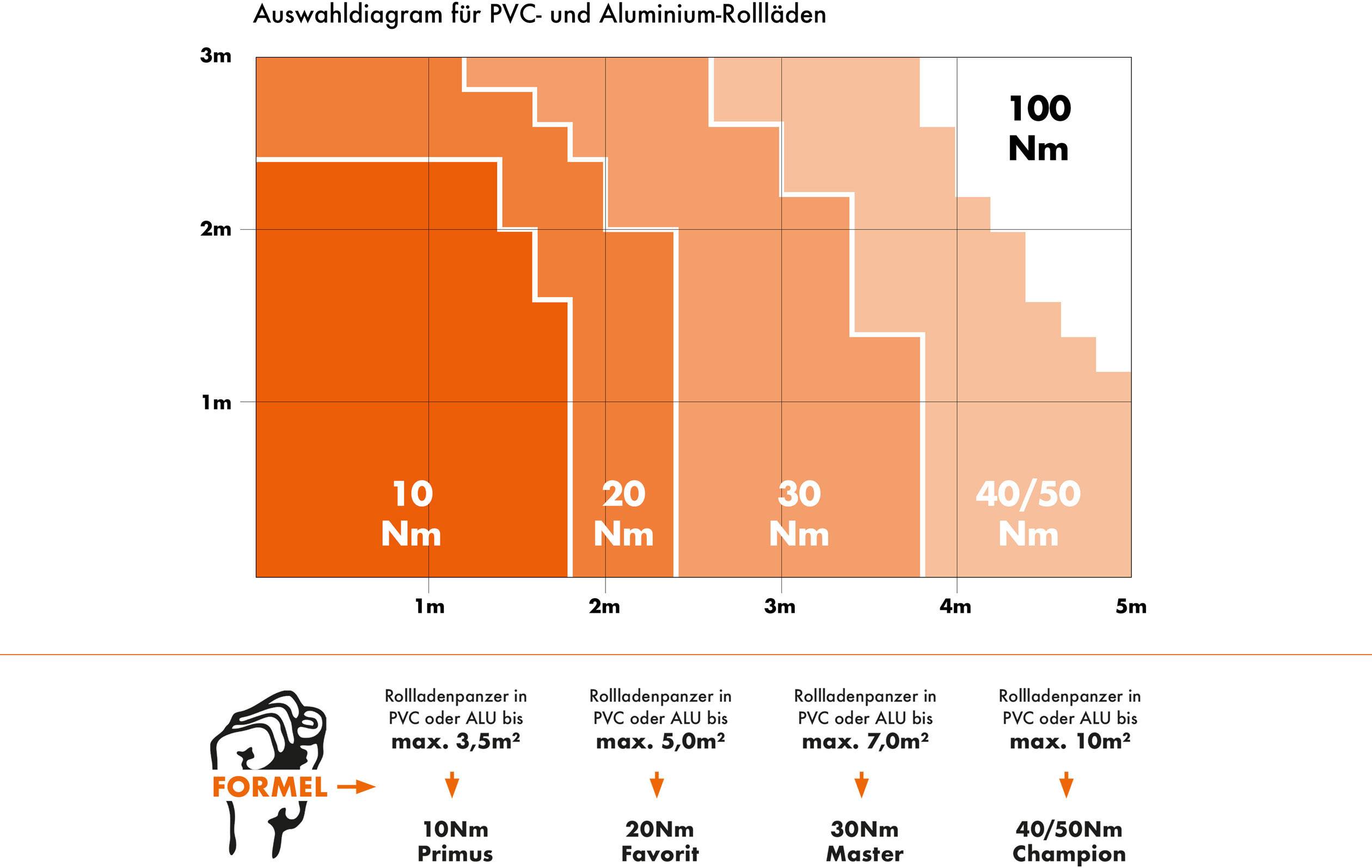

- Traction (max.) (details)
Up to 3.5m²
- Operating voltage
230 V AC
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 646406 Kaiser Nienhaus Classic Mercato Primus 110010 Tubular motor set 60 mm 10 Nm
Information
Information 646406 Kaiser Nienhaus Classic Mercato Primus 110010 Tubular motor set 60 mm 10 Nm
Description
Fast and silently running motors with high reserves guarantees longer duration. Provided through 2 m connection power without any maintenance. The end points can be easily set via 2 spindles.
Features

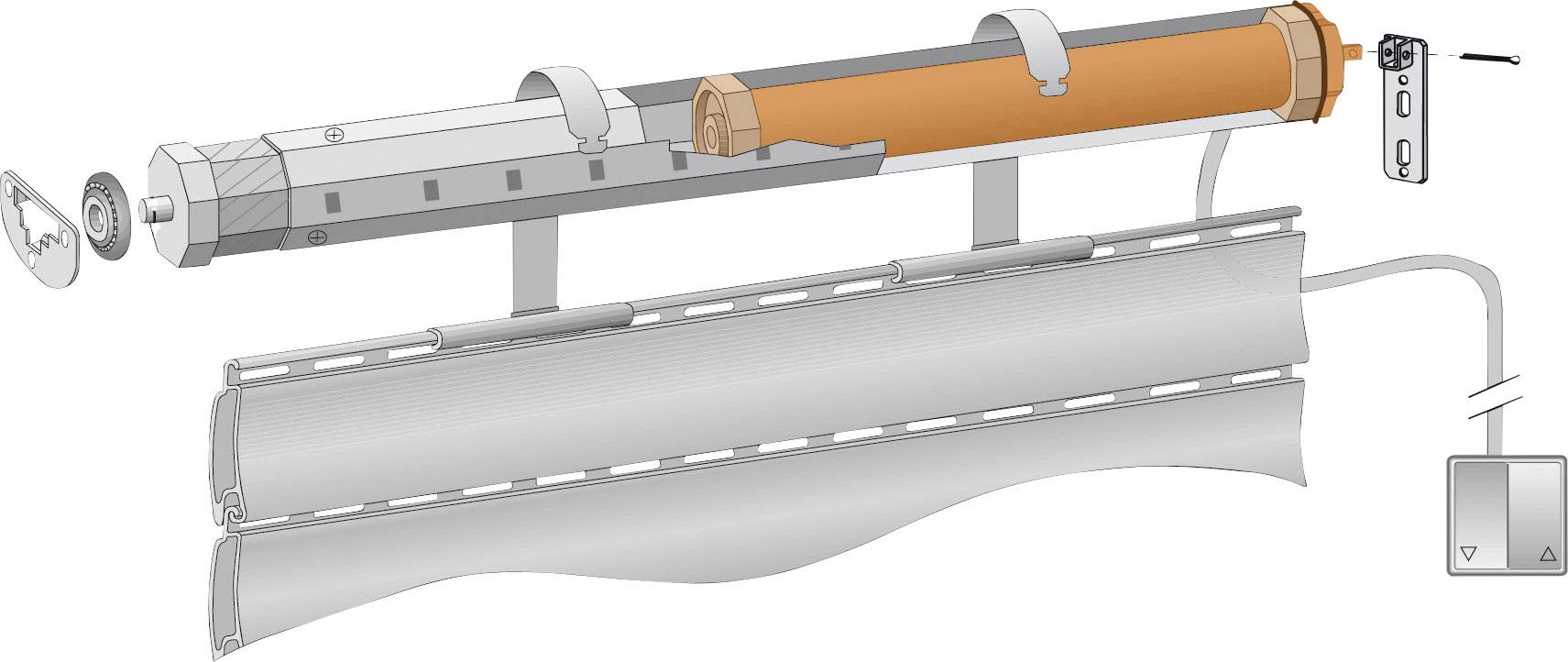

- Tubular motor with complete mounting accessories for shaft mounting.
Scope of delivery
- Motor
- Adapter
- Receiver for waves SW60
- Shaft capsule
- Motor
- Counter bearing
- Suspension springs
- Operating instructions.
