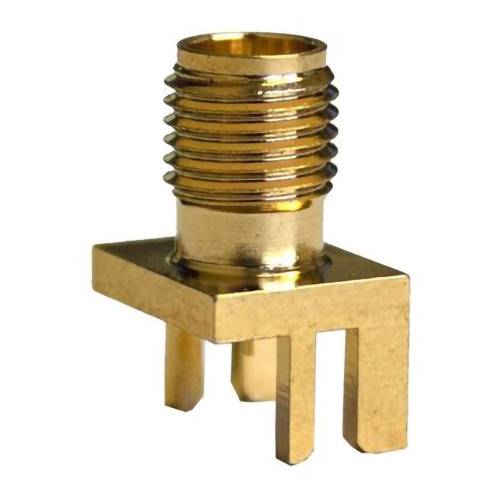

Mueller Electric BU-1420701841 Adapter SMA socket - PCB
Product type
Adapter
Type A
SMA socket
Type B
PCB
Jack diameter
6,35 mm-36UNS-2A
Connector
SMA plug
Datasheet (PDF)
Part number:
Item no:
Number
Total (€ 4.79 / piece)
€ 4.79
incl. VAT
Only 10 Piece(s) available
Highlights & Details
SMA connector for PCB mounting, edge mounting
- For mounting on 1.57 mm (0.062 inch) thick PCBs
- Impedance: 50 ohm
- Frequency 0 - 18 g
- Operating voltage 335 volt at sea level
- VSWR: 1.35 at 10 GHz with LMR-100 cable
- Dielectric withstand voltage: Min. 100 Volt at sea level
- Housing: Gold-plated brass
- Contact: Gold-plated beryllium copper
- Isolator: Teflon
- -65 °C to +150 °C.
Technical specifications
- Product type
Adapter
- Type A
SMA socket
- Type B
PCB
- Jack diameter
6,35 mm-36UNS-2A
- Connector
SMA plug
- Type
BU-1420701851
- Dim
(L x W x H) 9.53 x 9.65 x 7.92 mm
- Weight
2.2 g
- Nominal voltage
335 V
- Width
9.65 mm
- Height
7.92 mm
- Length
9.53 mm
- Type
BU-1420701841
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3527385 Mueller Electric BU-1420701841 Adapter SMA socket - PCB
User & Safety Instructions
User & Safety Instructions 3527385 Mueller Electric BU-1420701841 Adapter SMA socket - PCB
Description
The BU-1420701851 is a low loss SMA socket for printed circuit board assembly with square contact. Intended for mounting on 0.062 inch (1.57 mm) thick printed circuit boards.
This text is machine translated.
This text is machine translated.
Scope of delivery
- BU-1420701851
