Name: Phoenix Contact 1985548 Screw terminal 10.00 mm² Number of pins 1 50 pc(s)
Brand: Phoenix Contact
SKU: 566626
Price: 174.99 EUR
Availability: InStock

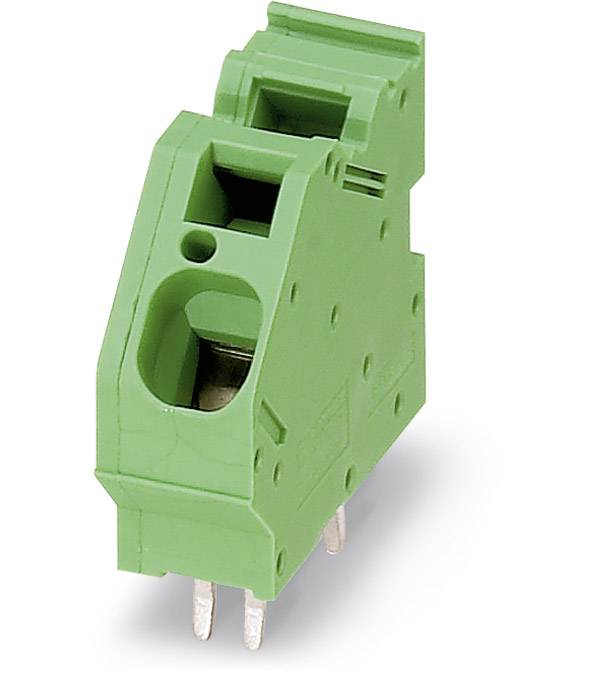

Green electrical connector with three metal pins, suitable for printed circuit board mounting.

Image similar

Product type

Screw terminal

10.00 mm

Pins per row

Number of pins

Connection

Screw terminal

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 16 Nov

18 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 50 pc(s))

Set(s)

Total (€ 3.50 / piece)

€ 174.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

PCB terminal block KDS10/SO BU

KDS 10/SO BU
Industrial packaging, pack of 50

Technical specifications

Type: KDS10/SO BU

Product type: Screw terminal

Features: + extractor sleeve

CS: 10.00 mm

No. of rows: 1

Pins per row: 1

Number of pins: 1

Series: KDS10

Stripping length (max.): 12.00 mm

Connection: Screw terminal
Print

Nominal current: 76 A

Cross section (flexible) (min.): 0.50 mm²

Nominal current - rounded value: 76 A

Cross section (inflexible) (min.): 0.50 mm²

Cross section (flexible) (max.): 10.00 mm²

Cross section (inflexible) (max.): 10.00 mm²

AWG (min.): 20

Connector orientation: Parallel (to the PCB)

AWG max.: 6

Contact material: Cathode copper, tin plated

Enclosure material: Polyamide

Wire protection: Yes

Actuation direction: Perpendicular (to the PCB)

Manufacturer part #: 1985548

Industrial packaging: Yes

Content: 50 pc(s)

Nominal voltage: 320 V

Width: 36.80 mm

Height: 28.70 mm

Length: 10.00 mm

Documents & Downloads

Datasheet

Datasheet 566626 Phoenix Contact 1985548 Screw terminal 10.00 mm² Number of pins 1 50 pc(s)

User & Safety Instructions

User & Safety Instructions 566626 Phoenix Contact 1985548 Screw terminal 10.00 mm² Number of pins 1 50 pc(s)

Description

PCB terminal block, Nominal current: 76 A, Nom. voltage: 320 V, Pitch: 10 mm, Number of positions: 1, Connection method: Screw connection, Mounting: Soldering, Conductor/PCB connection direction: 0 °
