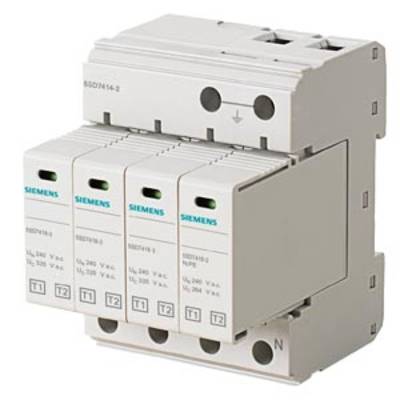

Siemens 5SD74142 5SD7414-2 Switchboard surge protection 50 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 222.69 / piece)
€
Technical specifications
- Wire stripping length: 16 mm
- Connectable conductor cross-section, rigid, max. 35 mm²
- Load current 80 A
- Size of the over voltage corrector: 4 TE
- Product type
Switchboard surge protection
- Leakage current
50 kA
- Nominal voltage
230 V AC
- Type
Material: PA 6.6/PBT
- Operating temperature
-40 °C - +80 °C
IP20
- Manufacturer part #
5SD74142

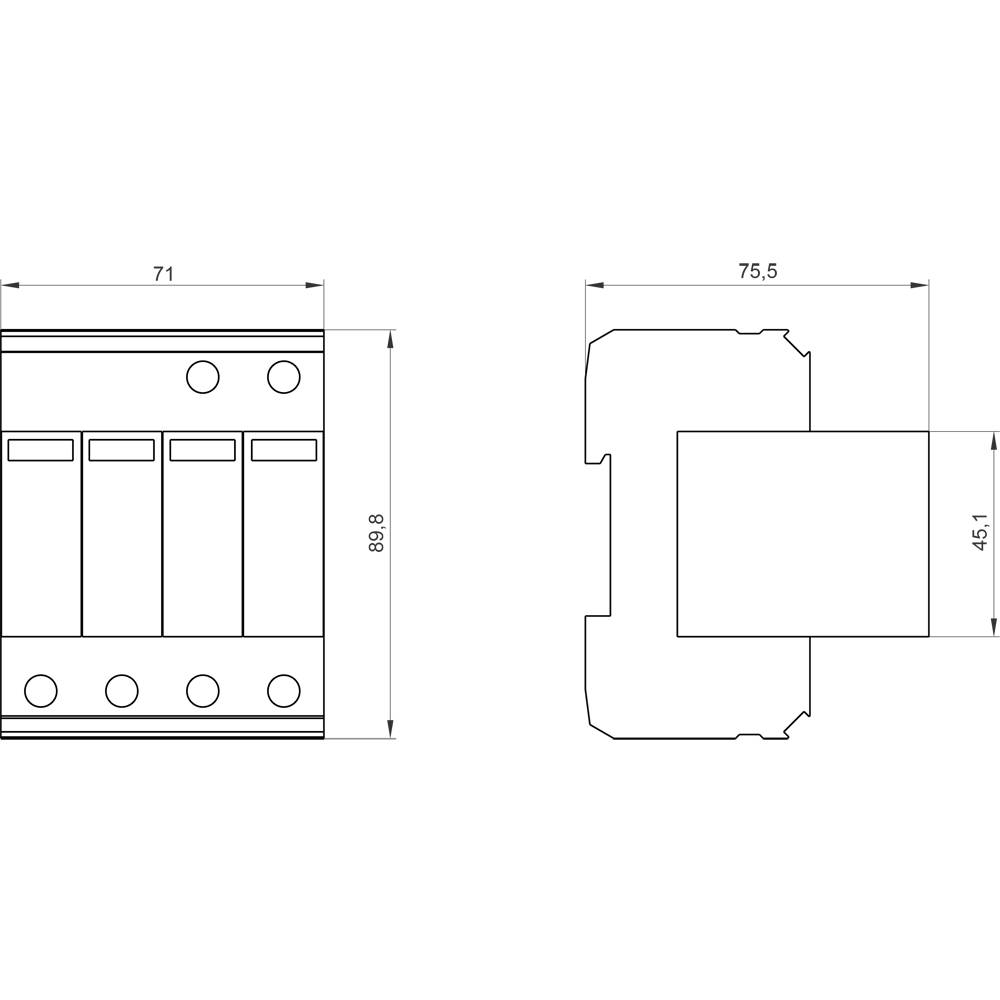

- Dim
(L x W x H) 77.5 x 71.2 x 89.9 mm
- Length
77.5 mm
- Width
71.2 mm
- Height
89.9 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
FALSE
3
4 modular spacing
335 V
230 V
TRUE
1.2 kV
None
IP20
1.7 kV
FALSE
35 mm²
25 mm²
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
50
25
160
80
Documents & Downloads
Datasheet
Datasheet 1701275 Siemens 5SD74142 5SD7414-2 Switchboard surge protection 50 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1701275 Siemens 5SD74142 5SD7414-2 Switchboard surge protection 50 kA 1 pc(s)
Description
SIMATIC WinCC Runtime Advanced SW package for SIMATIC IPC 128 PowerTags, includes: WinCC Runtime Advanced 128 PowerTags, V12 SP1, SIMATIC WinCC Recipes+Logging for Runtime Advanced, Supply only if the same number of SIMATIC IPCs is ordered on the same order slip
