Teledyne LeCroy Digital 500 MHz 2 GS/s 10 MP 8 Bit Digital storage (DSO) 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 11,735.29 / piece)
€ 11,735.29
plus VAT.
Highlights & Details
WaveSurfer 3054Z
- 500 MHz
- No. of analogue inputs 4
Technical specifications
- Product type
Digital
- Bandwidth
500 MHz
- Channel sample rate
2 GS/s
- Displays
Colour TFT touchscreen
- Resolution
8 Bit
- Screen size
25.6 cm
- Oscilloscope features
Digital storage (DSO)
- Time base
Horizontal deflection 2 ns/DIV - 50 s/DIV
- No. of analogue inputs
4
Manufacturer's standards (no certificate)
- Reading category
CAT I
- Vertical deflection
1 mV – 10 V/div
- Input impedance
1 MΩ;50 Ω
- Input coupling
AC/DC/GND
- Input voltage
400 V
- Power supply (details)
115 V/AC; 230 V AC
- Dim
(L x W x H) 125 x 380 x 270 mm
- Weight
4.8 kg
- No. of digital inputs (max.)
16
- Display
1024 x 600 p
- Width
380 mm
- Height
270 mm
- Length
125 mm
- Interfaces
USB
USB host
Ethernet
- Channel memory depth
10 MP
- Type
WAVESURFER 3054Z PROMO
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2859672 Teledyne LeCroy Digital 500 MHz 2 GS/s 10 MP 8 Bit Digital storage (DSO) 1 pc(s)
Description
The WaveSurfer 3000 oscilloscopes from Teledyne LeCroy have an advanced user interface with touch screen for quick and intuitive access to all debugging functions.
This text is machine translated.
This text is machine translated.
Scope of delivery

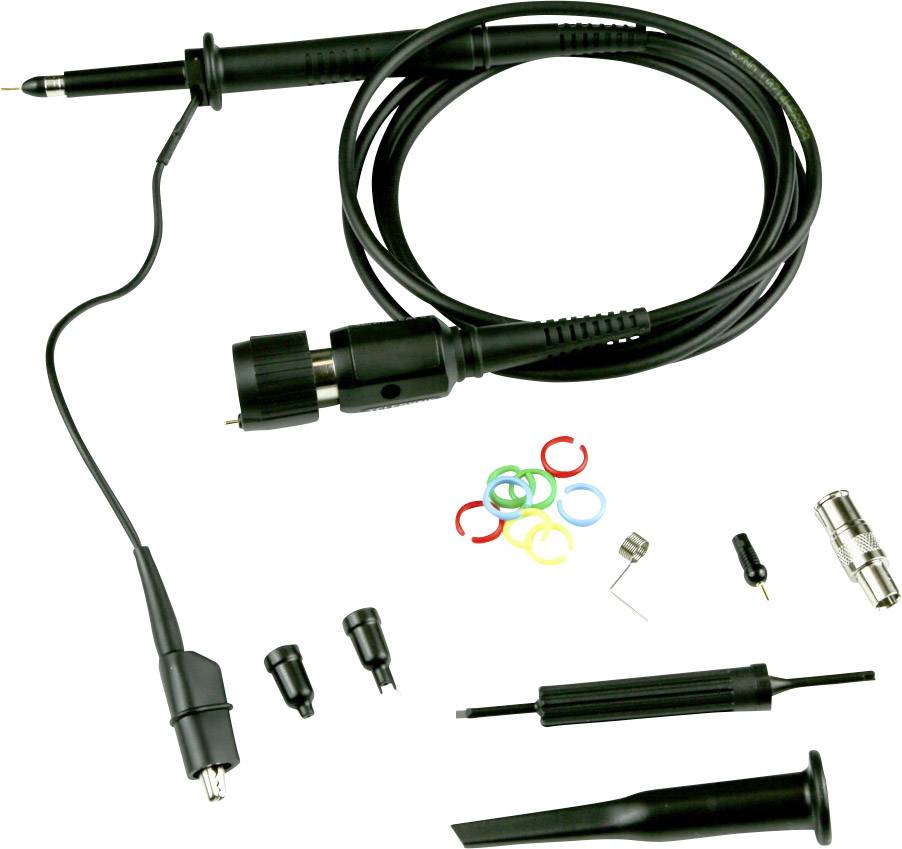

- Passive probe (1 per channel)
- 1 Micro SD card (installed)
- Micro SD Adapter
- Device front cover
- Getting started manual
- Power cable.
- Software options in the bundle: WS3K-EMB, WS3K-PWR, WS3K-FG, WS3K-AUDIOBUS, WS3K-AUTO, WS3K-CAN FD, WS3K-FLEXRAYBUS, WS3K-MSO.
