Buy TOOLCRAFT TO-9625863 Crimp inset MCP 6.3/4.8K SPT Contact 3 up to 6 mm² Suitable for brand (pliers) TOOLCRAFT

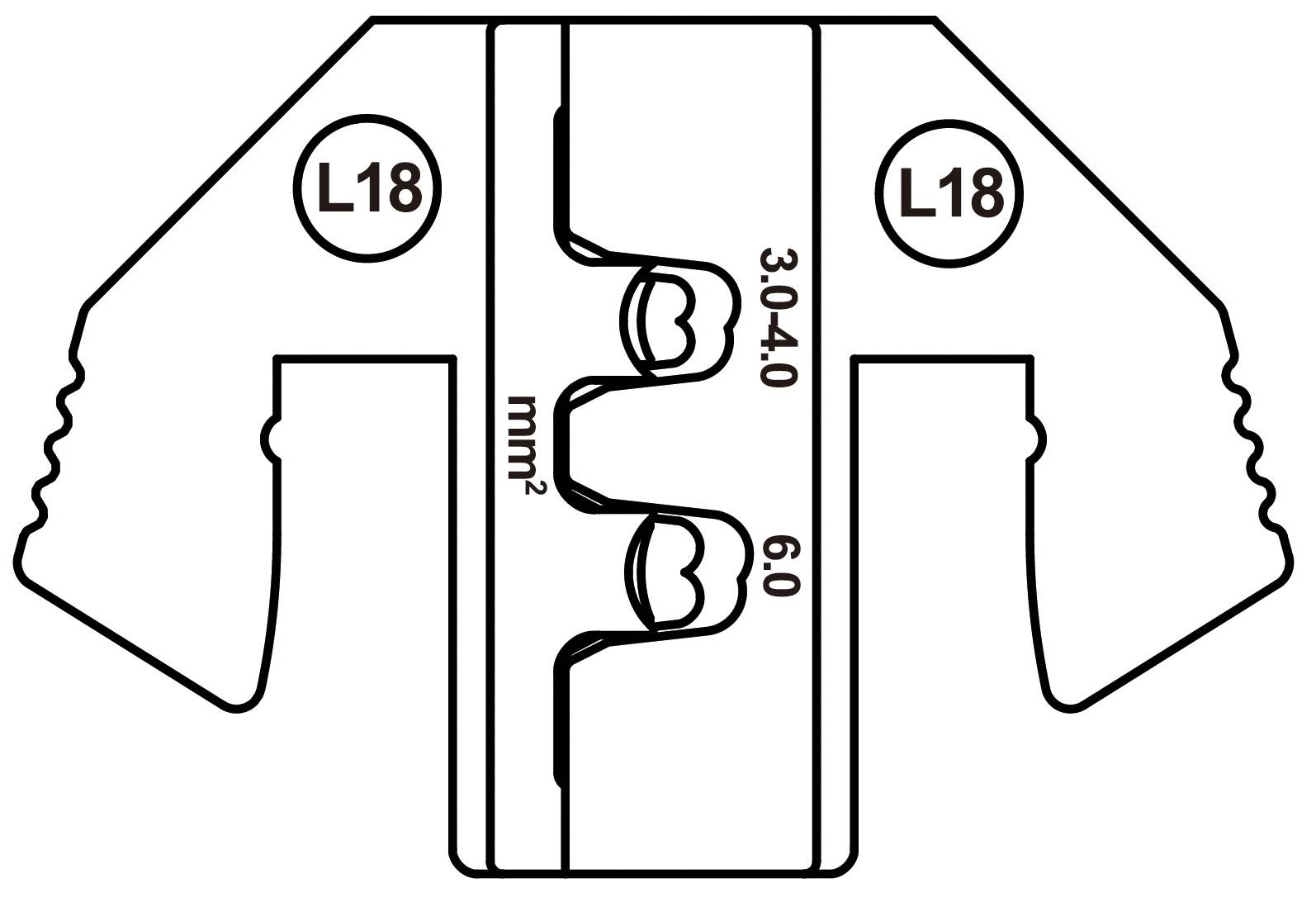

Metal cut part marked with 'L18', showing measurement marks '3.0-4.0' and '6.0'.

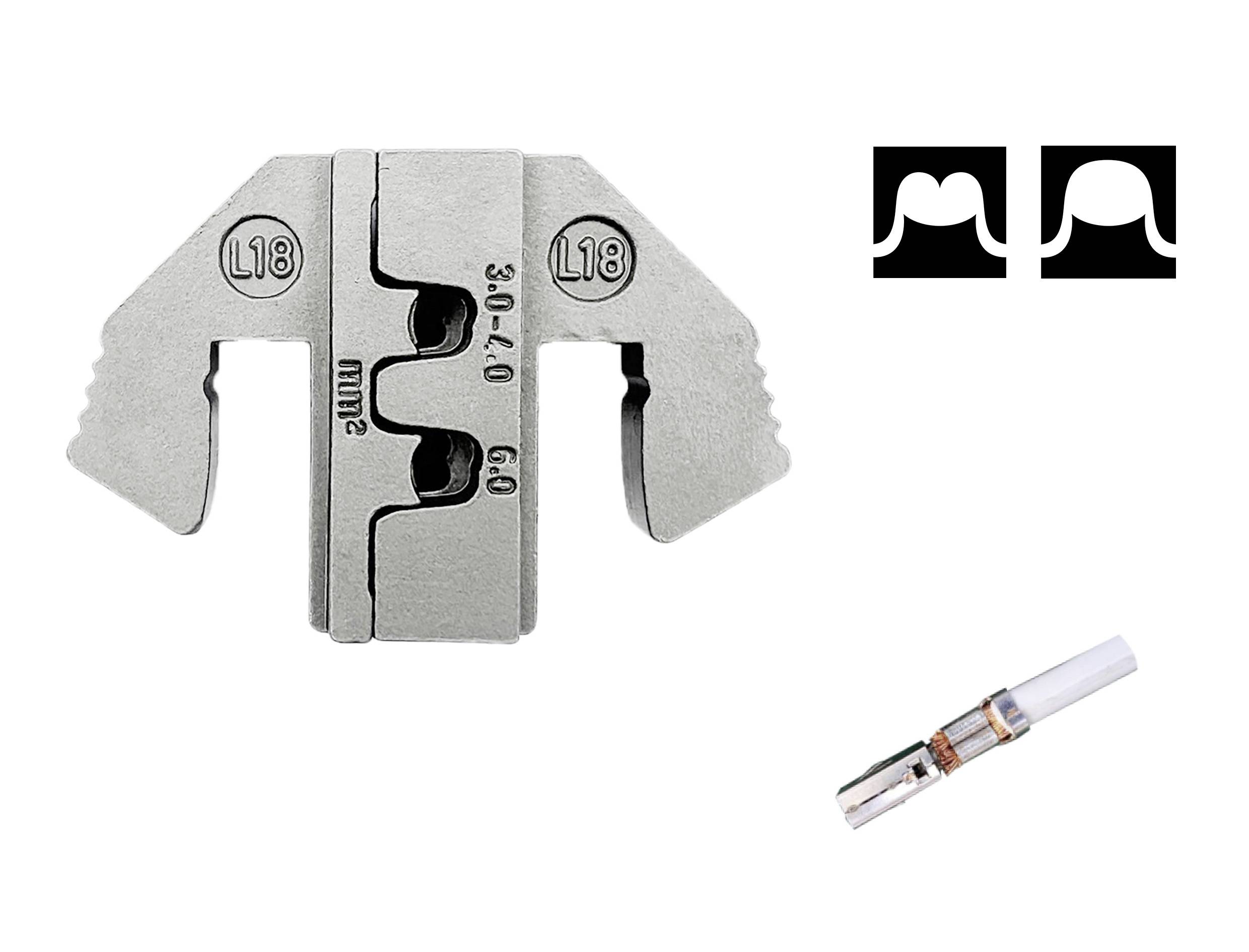

Metal connector next to a small socket, symbol in the top right indicates plug and socket type.

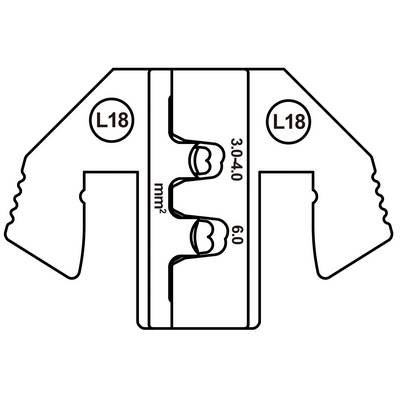

'Cutting element for crimping cables with markings 3.0-4.0 mm² and 6.0 mm², marked on both sides with the designation L18.'

1/3

Our service for you

Fast track dispatch on Thu, 17 Sep

9 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 10.92 / piece)

€ 10.92

plus VAT.

Only 9 Piece(s) available

Report legal concerns

Highlights & Details

TOOLCRAFT Crimping insert for 3.0-6.0mm2 MCP 6.3/4.8K & SPT Contact

Precision and wax-lost casting
Treatment: Finished with heat treatment
Zinc phosphate surface treatment

Technical specifications

Material: AISI 4140 steel 1.7225 42CrMo4 SCM440

Product type: Crimp inset

Manufacturer part #: TO-9625863

Range of uses: MCP 6.3/4.8K SPT Contact

Crimp area (min.): 3 mm²

Crimp area (max.): 6 mm²

Length: 50.7 mm

Material properties: zinc phosphate coating
alloyed

Width: 10 mm

Height: 34 mm

Weight: 65.7 g

Suitable for: TOOLCRAFT

Crimp area: 3 up to 6 mm²

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3208621 TOOLCRAFT TO-9625863 Crimp inset MCP 6.3/4.8K SPT Contact 3 up to 6 mm² Suitable for brand (pliers) TOOLCRAFT

Warranty Terms

Warranty Terms 3208621 TOOLCRAFT TO-9625863 Crimp inset MCP 6.3/4.8K SPT Contact 3 up to 6 mm² Suitable for brand (pliers) TOOLCRAFT

Description

Crimping inserts for TOOLCRAFT crimping pliers

Features

Crimping range: 3.0-4.0/6.0 mm²
Suitable for MCP 6.3/4.8K & SPT Contact

Scope of delivery

1 Crimp insert

Hints

For operating the TOOLCRAFT system pliers Order No. 1423556 or identical model necessary!
