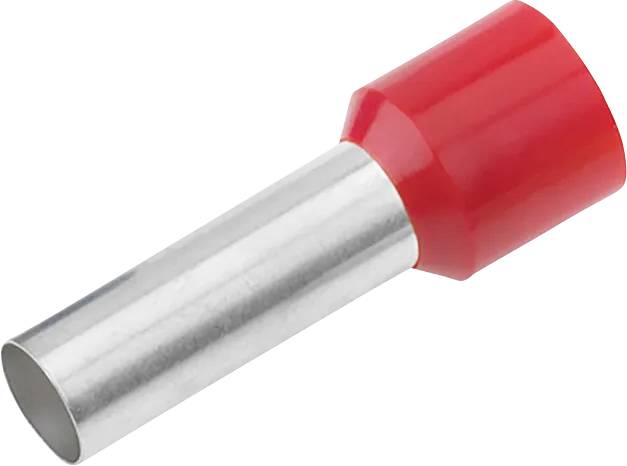

A red isolated metal cable lug with a red plastic cap, suitable for connecting wires in electrical applications.

A red isolated metal cable lug with a red plastic cap, suitable for connecting wires in electrical applications.

Cimco

Product type

Ferrule

Cross section per core

1 mm²

Sleeve length

12 mm

Insulation type

Partially insulated

Content

100 pc(s)

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Mon 9 Nov

9 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 100 pc(s))

Set(s)

Total (€ 0.06 / piece)

€ 6.49

incl. VAT

Only 9 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Insulation Wire-end sleeve 1.0mm² x 12mm red

18 mm
Red

Technical specifications

Nominal cross-section: 1 mm²
Surface protection: Tin-plated
Material: Copper
Colour: red.
Insulated: ✓
Halogen-free: ✓
Bandware: ×
Total length 18 mm.
Design: Standard
For short-circuit proof lines: ×
Insulation material: Polypropylene (PP)
Sleeve length 12 mm
With marking tag: ×

Product type: Ferrule

Cross section per core: 1 mm²

Sleeve length: 12 mm

Insulation type: Partially insulated

Factory colour: Red

Content: 100 pc(s)

Contact material: Copper silver plated

Manufacturer part #: 187010

Insulation material: Polypropylene (PP)

Length: 18 mm

Cross-section x Length: 1 mm² x 12 mm

Type: Isol. Aderendh. 1,0mm² x 12mm, rot

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3394487 Cimco 187010 Ferrule 1 mm² Partially insulated Red 100 pc(s)

User & Safety Instructions

User & Safety Instructions 3394487 Cimco 187010 Ferrule 1 mm² Partially insulated Red 100 pc(s)

Description

Insulated wire-end sleeves according to DIN 46228-4, made of high-quality copper-HP. The surface is galvanically tin-plated with a minimum layer thickness of 3 µm for maximum corrosion protection. The plastic collar made of polypropylene provides for a simple insertion of copper conductor. Temperature resistant up to 105°C, for cables Class 5 / 6 according to IEC 60228

This text is machine translated.

Description

Insulated wire-end sleeves according to DIN 46228-4, made of high-quality copper-HP. The surface is galvanically tin-plated with a minimum layer thickness of 3 µm for maximum corrosion protection. The plastic collar made of polypropylene provides for a simple insertion of copper conductor. Temperature resistant up to 105°C, for cables Class 5 / 6 according to IEC 60228

This text is machine translated.
