Buy Cimco 187016 Ferrule 2.5 mm² Partially insulated Blue 100 pc(s) | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

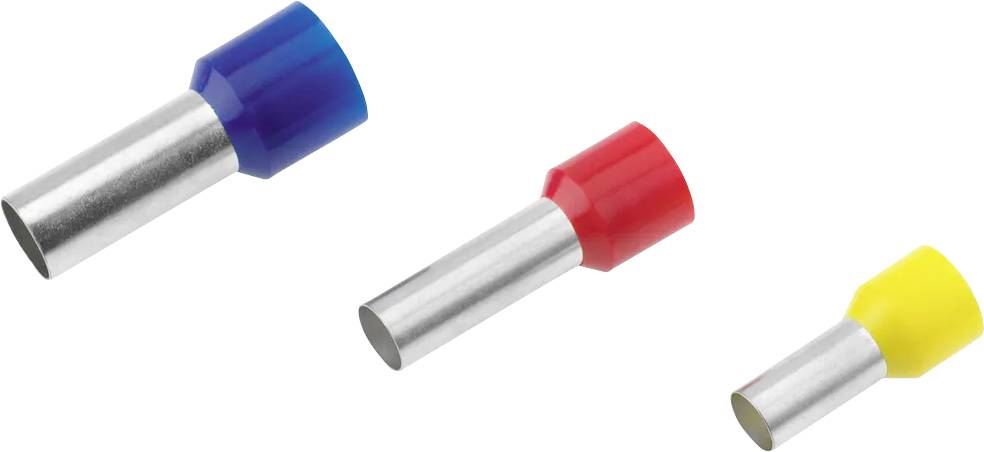

Three electrical cable end ferrules in different colours: blue, red and yellow. They vary in size and are used for cable connections.

Three electrical cable end ferrules in different colours: blue, red and yellow. They vary in size and are used for cable connections.

Cimco

Product type

Ferrule

Cross section per core

2.5 mm²

Sleeve length

8 mm

Insulation type

Partially insulated

Content

100 pc(s)

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Mon 9 Nov

5 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 100 pc(s))

Set(s)

Total (€ 0.04 / piece)

€ 4.29

incl. VAT

Only 5 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Insulation Wire-end sleeve 2.5mm² x 8mm, blue

14 mm
Blue

Technical specifications

Nominal cross-section: 2.5 mm²
Surface protection: Tin-plated
Material: Copper
Colour: Blue
Insulated: ✓
Halogen-free: ✓
Bandware: ×
Total length 14 mm.
Design: Standard
For short-circuit proof lines: ×
Insulation material: Polypropylene (PP)
Sleeve length 8 mm
With marking tag: ×

Product type: Ferrule

Cross section per core: 2.5 mm²

Sleeve length: 8 mm

Insulation type: Partially insulated

Factory colour: Blue

Content: 100 pc(s)

Contact material: Copper silver plated

Manufacturer part #: 187016

Insulation material: Polypropylene (PP)

Length: 14 mm

Cross-section x Length: 2.5 mm² x 8 mm

Type: Isol. Aderendh. 2,5mm² x 8mm, blau

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3394493 Cimco 187016 Ferrule 2.5 mm² Partially insulated Blue 100 pc(s)

User & Safety Instructions

User & Safety Instructions 3394493 Cimco 187016 Ferrule 2.5 mm² Partially insulated Blue 100 pc(s)

Description

Insulated wire-end sleeves according to DIN 46228-4, made of high-quality copper-HP. The surface is galvanically tin-plated with a minimum layer thickness of 3 µm for maximum corrosion protection. The plastic collar made of polypropylene provides for a simple insertion of copper conductor. Temperature resistant up to 105°C, for cables Class 5 / 6 according to IEC 60228

This text is machine translated.

Description

Insulated wire-end sleeves according to DIN 46228-4, made of high-quality copper-HP. The surface is galvanically tin-plated with a minimum layer thickness of 3 µm for maximum corrosion protection. The plastic collar made of polypropylene provides for a simple insertion of copper conductor. Temperature resistant up to 105°C, for cables Class 5 / 6 according to IEC 60228

This text is machine translated.
