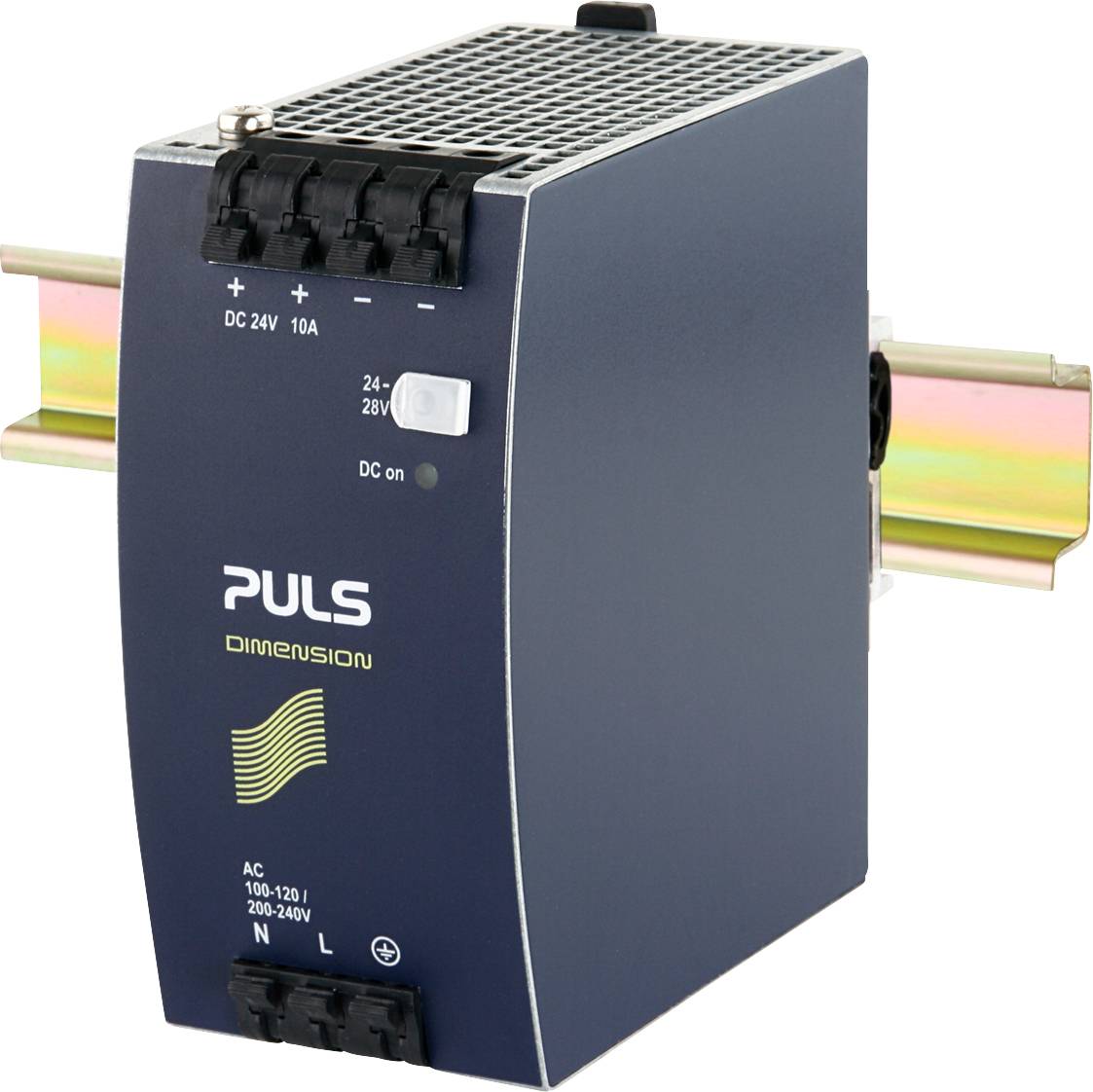

PULS CS10.241-S1 Rail mounted PSU (DIN) 24 V 10 A 240 W No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 205.87 / piece)
€ 205.87
plus VAT.
14-day return policy included
Highlights & Details
- AC 100–120 / 200–240V automatic range switching
- Wide only 60mm
- efficiency up to 91.6%
- simple triggering of fuses through high overload / peak current
- 20% power reserve
- full output power between -25°C and +60°C
- negligible small switch-on current
- Fast connection spring-loaded terminals
Technical specifications
- Nominal input voltage
100 - 240 V/AC
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
85 V
- Input voltage
AC 100-120/200-240V (± 10%)
- Input voltage (max.)
264 V
- Max. output current
10 A
- Output current (max.) - rounded
10 A
240 W
- Output type (power supply units)
Adjustable
- Phases
1
- Output voltage (nominal)
24 V
- No. of outputs
1 x
- Connection
Spring-loaded terminal
- Dim
(L x W x H) 117 x 60 x 124 mm
- Weight
700 g
- Output voltage (max.)
30 V
- Output voltage (min.)
24 V
- Operating temperature (max.)
+70 °C
- Max. operating temperature (derating)
+60 °C
- Operating temperature (min.)
-25 °C
- Manufacturer part #
CS10.241-S1
- Content
1 pc(s)
- MTBF
821.000 h
- Width
60 mm
- Height
124 mm
- Length
117 mm
- Max. temperature
+70 °C
- Min. temperature
-25 °C
- Type
CS10.241-S1
- Efficiency
91.6 %
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2189085 PULS CS10.241-S1 Rail mounted PSU (DIN) 24 V 10 A 240 W No. of outputs:1 x Content 1 pc(s)
Description
The DIN rail power supplies of THE DIMENSION product family impress through their highest performance, a large variety of variants as well as extensive features and approvals.
