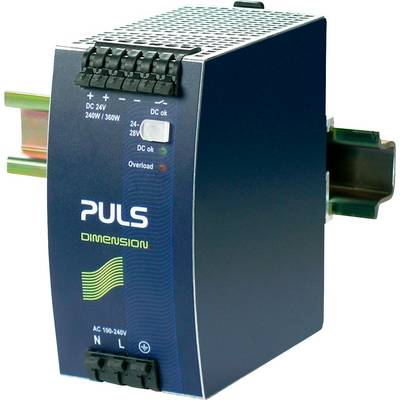

Power supply module mounted on a DIN rail, displaying 'PULS DIMENSION' with LED indicators for DC 24V and overload, suitable for AC 100-240V.

Power supply module mounted on a DIN rail, displaying 'PULS DIMENSION' with LED indicators for DC 24V and overload, suitable for AC 100-240V.

PULS

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 369.00 / piece)

€ 369.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

100-240V wide-range input, active PFC
efficiency up to 93.5%, SEMI F47 approved
protective coating
50% power reserve for 4s available
full output power between -25 and +60°C
quick connection spring-loaded terminals
EN 50155 approved for railway applications
Protective coating

Technical specifications

Protective coating

Nominal input voltage: 100 - 240 V/AC

Product type: Rail mounted PSU (DIN)

Min. input voltage: 85 V

Input voltage: AC 100-240V (± 15%)
DC 110V-150V (-20%/+25%)

Input voltage (max.): 276 V

Max. output current: 10 A

Output current (max.) - rounded: 10 A

: 240 W

Output type (power supply units): Adjustable

Phases: 1

Output voltage (nominal): 24 V

No. of outputs: 1 x

Connection: Spring-loaded terminal

Dim: (L x W x H) 117 x 60 x 124 mm

Weight: 900 g

Output voltage (max.): 30 V

Output voltage (min.): 24 V

Operating temperature (max.): +70 °C

Max. operating temperature (derating): +60 °C

Min. operating temperature (derating): -25 °C

Operating temperature (min.): -25 °C

Manufacturer part #: QS10.241-C1

Content: 1 pc(s)

MTBF: 581.000 h

PSU features: protective coating

Width: 60 mm

Height: 124 mm

Length: 117 mm

Max. temperature: +70 °C

Min. temperature: -25 °C

Type: QS10.241-C1

Efficiency: 93.5 %

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2189091 PULS QS10.241-C1 Rail mounted PSU (DIN) 24 V 10 A 240 W No. of outputs:1 x Content 1 pc(s)

Description

The DIN rail power supplies of THE DIMENSION product family impress through their highest performance, a large variety of variants as well as extensive features and approvals.

This text is machine translated.

Description

The DIN rail power supplies of THE DIMENSION product family impress through their highest performance, a large variety of variants as well as extensive features and approvals.

This text is machine translated.
