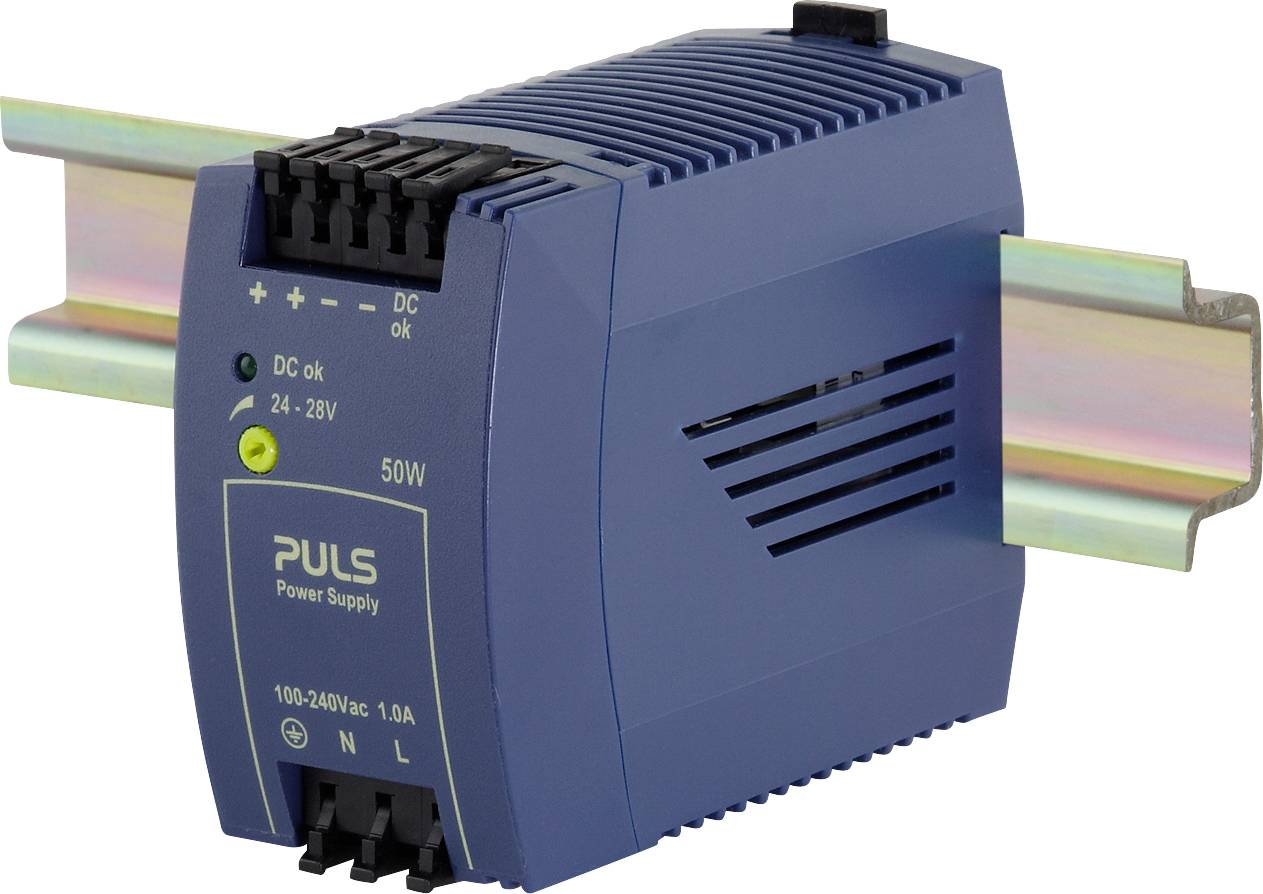

PULS ML50.101 Rail mounted PSU (DIN) 24 V 2.1 A 50 W No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 100.83 / piece)
€ 100.83
plus VAT.
Only 5 Piece(s) available
Highlights & Details
- 100-240V Wide range input
- DC-OK Signal output
- Parallel mode for load sharing
- NEC Class 2 lists
- full output power between -10 and +60°C
- Quick connection Spring-loaded terminals
Technical specifications
- Nominal input voltage
100 - 240 V/AC
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
264 V
- Input voltage
AC 100-240V (-15%/+10%)
DC 110V-300V (-20%/+25%)
- Input voltage (max.)
85 V
- Max. output current
2.1 A
- Output current (max.) - rounded
2.1 A
50 W
- Phases
1
- Output voltage (nominal)
24 V
- No. of outputs
1 x
- Connection
Spring-loaded terminal
- Dim
(L x W x H) 91 x 45 x 75 mm
- Weight
240 g
- Output voltage (max.)
28 V
- Output voltage (min.)
24 V
- Operating temperature (max.)
+70 °C
- Max. operating temperature (derating)
+60 °C
- Operating temperature (min.)
-10 °C
- Manufacturer part #
ML50.101
- Content
1 pc(s)
- MTBF
600.000 h
- Width
45 mm
- Height
75 mm
- Length
91 mm
- Max. temperature
+70 °C
- Min. temperature
-10 °C
- Type
ML50.101
- Efficiency
88.5 %
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2189097 PULS ML50.101 Rail mounted PSU (DIN) 24 V 2.1 A 50 W No. of outputs:1 x Content 1 pc(s)
Conformity certificate
Conformity certificate 2189097 PULS ML50.101 Rail mounted PSU (DIN) 24 V 2.1 A 50 W No. of outputs:1 x Content 1 pc(s)
Description
The DIN rail power supplies of the MiniLine product family are characterized by an extremely compact design and are optimally suitable for applications with a smaller power requirement.
