Siemens 3RW3016-2BB14 3RW30162BB14 Soft starter Motor power at 400 V 4 kW 480 V Nominal current 9 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 279.00 / piece)
€ 279.00
incl. VAT
14-day return policy included
Technical specifications
- Protection class: IP20
- Mounting type: screw and snap
- Number of normally open contact: 1
- Size S00:
- Operating frequency: 50/60 Hz
- Isolation voltage: 600 V
- Motor voltage
400 V
- Product type
Soft starter
- Supply current
9 A
- Motor power at 400 V
4 kW
- Nominal voltage
480 V
- Type
Spring-loaded connection
- Manufacturer part #
3RW30162BB14
- Nominal current
9 A
- Nominal current - rounded value
9 A
- Type
3RW3016-2BB14
- Motor power at 230V / 400V
4 kW

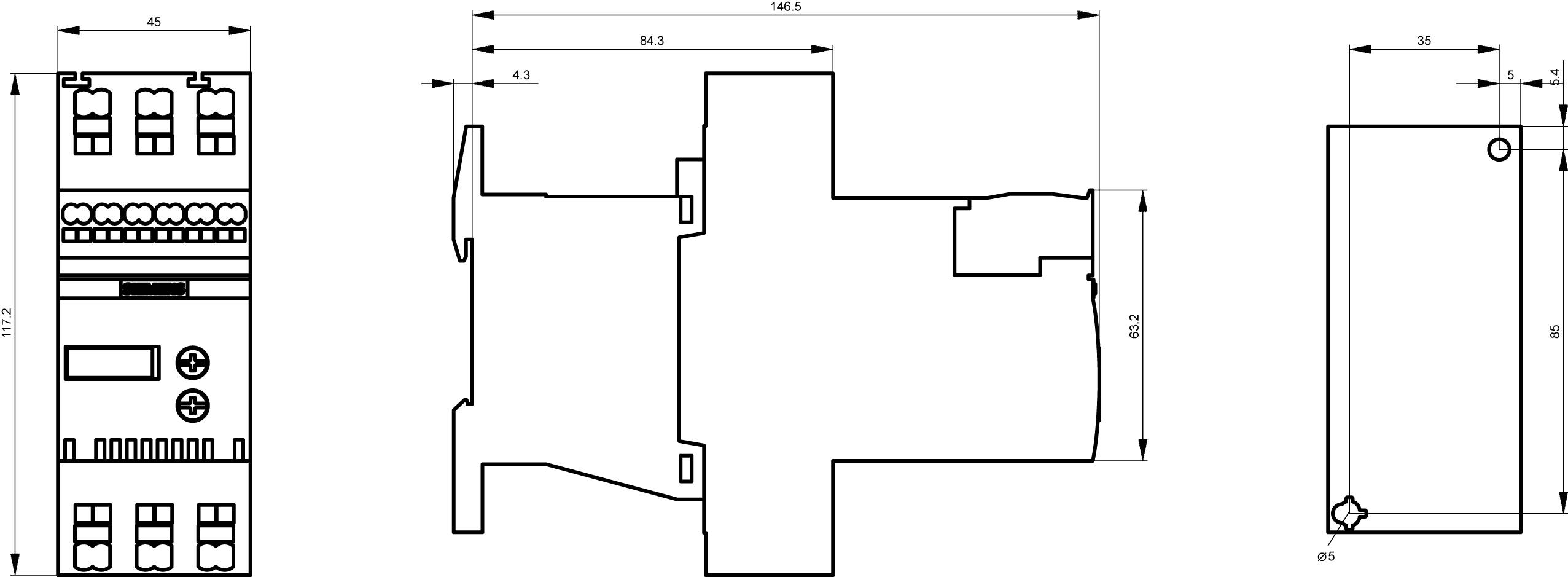

- Dim
(W x H x D) 45 x 120 x 150 mm
- Connection
Spring-loaded connector
- Width
45 mm
- Height
120 mm
- Depth
150 mm
- Max. temperature
+60 °C
- Min. temperature
-25 °C
Single direction
110-230 V
110-230 V
110-230 V
IP20
Other
9 A
2.2 kW
4 kW
40 °C
FALSE
AC/DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1746688 Siemens 3RW3016-2BB14 3RW30162BB14 Soft starter Motor power at 400 V 4 kW 480 V Nominal current 9 A
User & Safety Instructions
User & Safety Instructions 1746688 Siemens 3RW3016-2BB14 3RW30162BB14 Soft starter Motor power at 400 V 4 kW 480 V Nominal current 9 A
Description

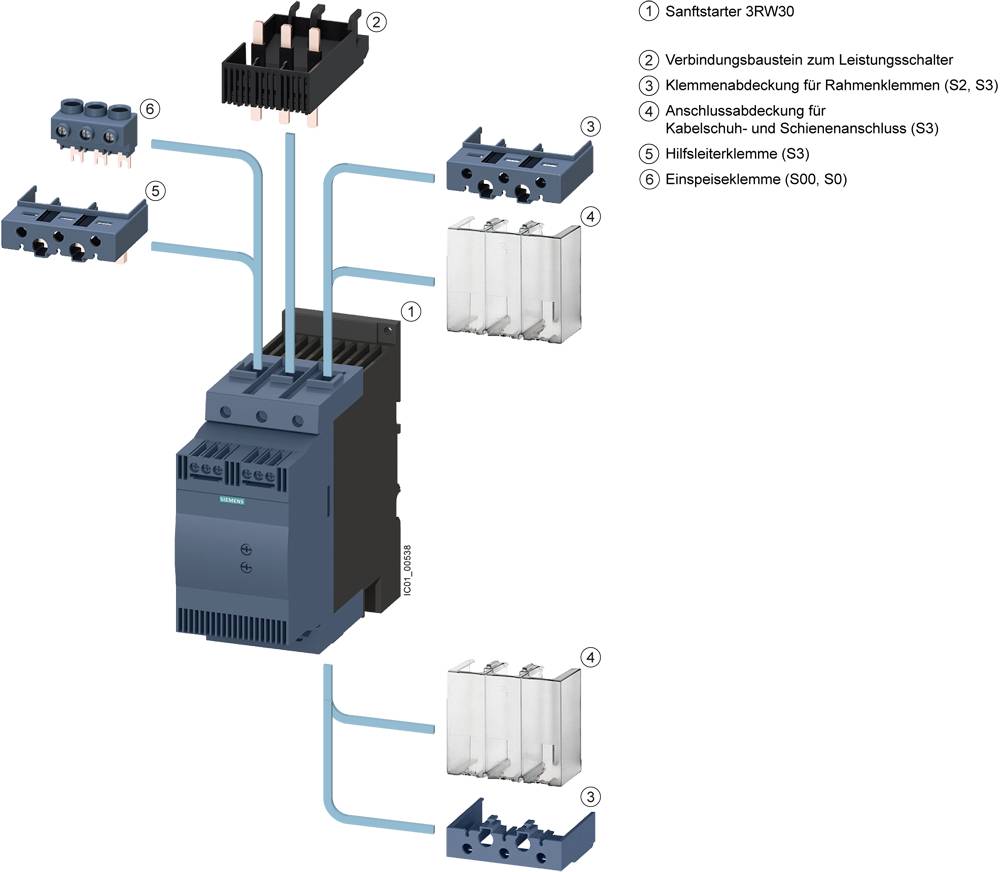

scale cover, sealable for circuit breaker 3RV2 Size S00...S3
