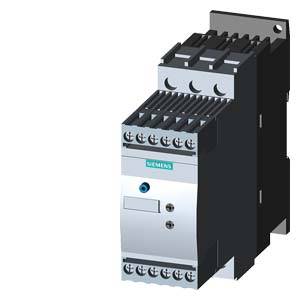

Siemens 3RW3027-1BB04 3RW30271BB04 Soft starter Motor power at 400 V 15 kW 480 V Nominal current 32 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 485.00 / piece)
€ 485.00
incl. VAT
14-day return policy included
Technical specifications
- Protection class: IP20
- Mounting type: screw and snap
- Number of normally open contact: 1
- Size S0
- Operating frequency: 50/60 Hz
- Isolation voltage: 600 V
- Motor voltage
AC 200-480 V
- Product type
Soft starter
- Supply current
32 A
- Motor power at 400 V
15 kW
- Nominal voltage
480 V
- Type
Screw connector
- Manufacturer part #
3RW30271BB04
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Type
3RW3027-1BB04
- Motor power at 230V / 400V
15 kW

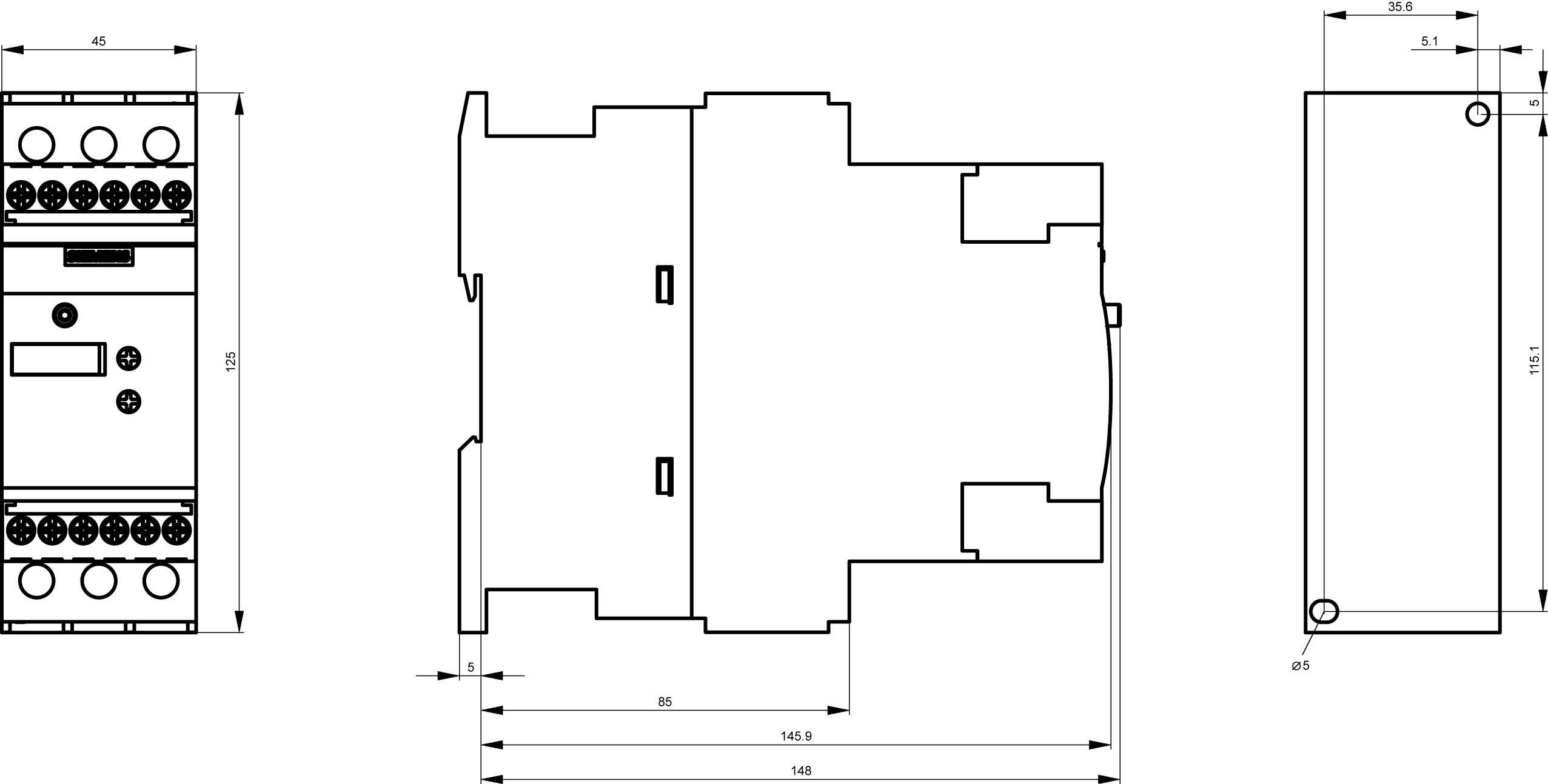

- Dim
(L x W x H) 0.13 m x 45 mm x 125 mm
- Connection
Screw terminal
- Width
45 mm
- Height
125 mm
- Length
0.13 m
- Depth
150 mm
- Max. temperature
+60 °C
- Min. temperature
-25 °C
Single direction
24-24 V
24-24 V
24-24 V
IP20
Other
32 A
7.5 kW
15 kW
40 °C
FALSE
AC/DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1746694 Siemens 3RW3027-1BB04 3RW30271BB04 Soft starter Motor power at 400 V 15 kW 480 V Nominal current 32 A
User & Safety Instructions
User & Safety Instructions 1746694 Siemens 3RW3027-1BB04 3RW30271BB04 Soft starter Motor power at 400 V 15 kW 480 V Nominal current 32 A
Description
End cover for 3-phase busbar 3RV2917 Multi-unit packaging 10 units
