Siemens 3RW3026-2BB04 3RW30262BB04 Soft starter Motor power at 400 V 11 kW 480 V Nominal current 25 A

A Siemens electronic device, likely an industrial component, with multiple ports on top and a grey-black casing.
An open electrical cabinet, filled with electrical components and cables in various colour arrangements.
Circuit diagram of a contactor switch. Main component in the centre, surrounded by numbered terminal connections and covers.
Circuit diagram of an electronic device with various connection points and terminals. Main connections are marked with 1L1, 3L2, 5L3, A1, A2, IN 1, ON.

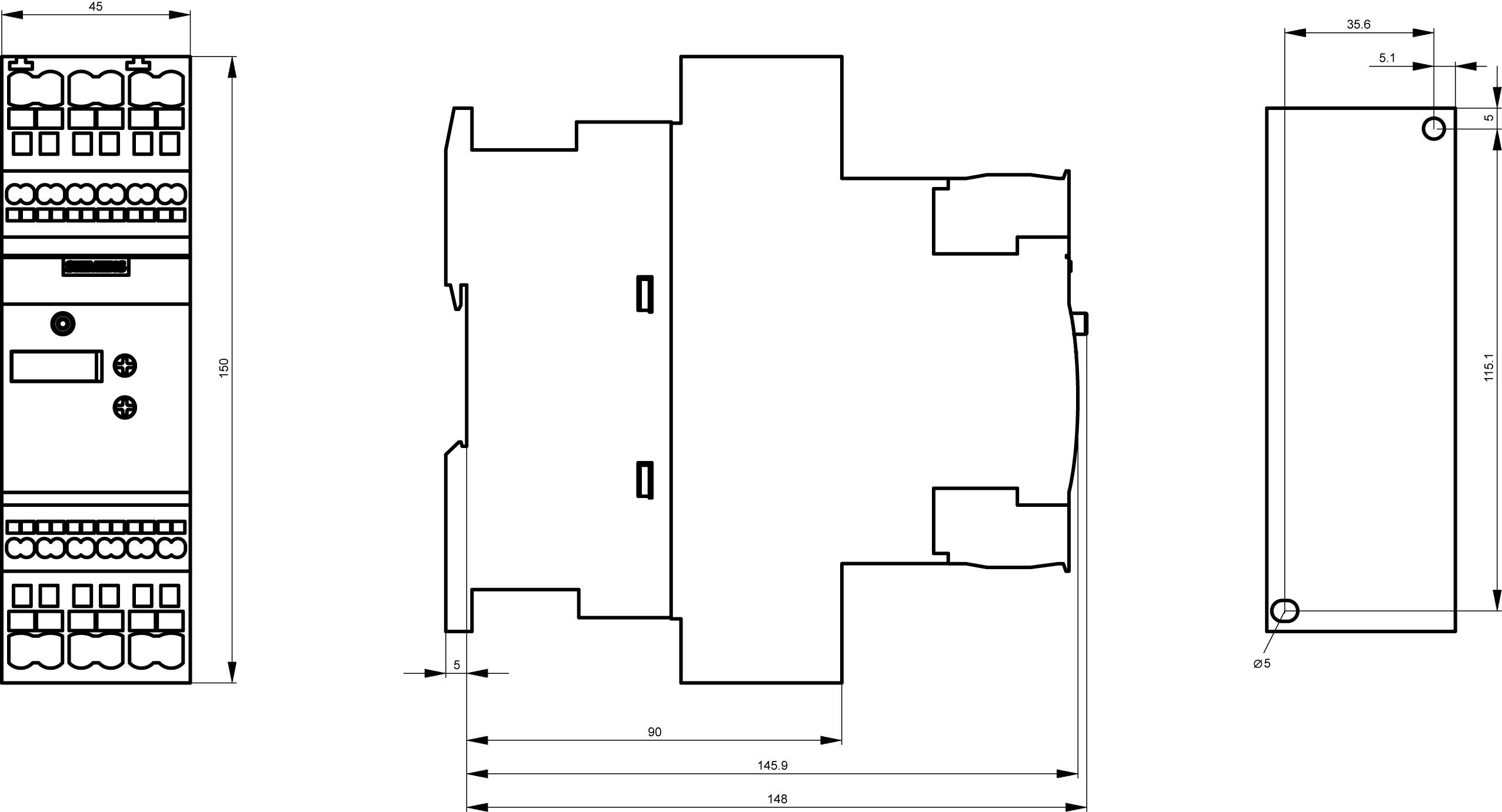

Technical drawing of a device with three views: front view, side view, and top view. Dimensions are given in millimetres.
1/5
Image similar
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Mon, 8 Feb 2027
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 425.00 / piece)
€ 425.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Protection class: IP20
  • Mounting type: screw and snap
  • Number of normally open contact: 1
  • Size S0
  • Operating frequency: 50/60 Hz
  • Isolation voltage: 600 V
Motor voltage

400 V

Product type

Soft starter

Supply current

25 A

Motor power at 400 V

11 kW

Nominal voltage

480 V

Type

Spring-loaded connection

Manufacturer part #

3RW30262BB04

Nominal current

25 A

Nominal current - rounded value

25 A

Type

3RW3026-2BB04

Motor power at 230V / 400V

11 kW

Dim

(W x H x D) 45 x 150 x 150 mm

Width

45 mm

Height

150 mm

Depth

150 mm

Max. temperature

+60 °C

Min. temperature

-25 °C

Single direction

24-24 V

24-24 V

24-24 V

IP20

Other

25 A

5.5 kW

11 kW

40 °C

FALSE

AC/DC

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1704969 Siemens 3RW3026-2BB04 3RW30262BB04 Soft starter Motor power at 400 V 11 kW 480 V Nominal current 25 A

User & Safety Instructions

User & Safety Instructions 1704969 Siemens 3RW3026-2BB04 3RW30262BB04 Soft starter Motor power at 400 V 11 kW 480 V Nominal current 25 A

Description

Terminal block 6 mm2 for current outfeed and also for connection of 3-phase busbars
