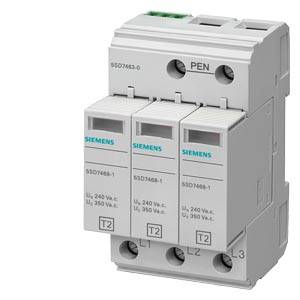

Image similar

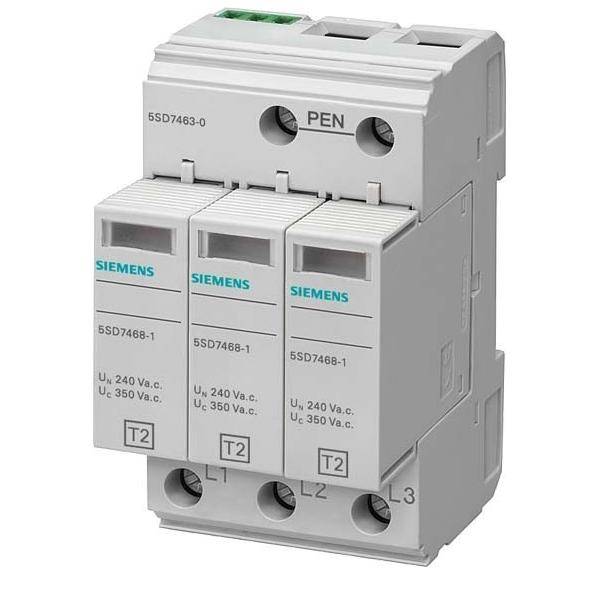

Image similar
Siemens 5SD74630 5SD7463-0 Surge arrester 40 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 168.06 / piece)
€ 168.06
plus VAT.
Technical specifications
- Wire stripping length: 16 mm
- Connectable conductor cross-section, rigid, max. 35 mm²
- Load current 80 A
- Number of pins: 3
- Size of the over voltage corrector: 3 TE
- Product type
Surge arrester
- Leakage current
40 kA
- Nominal voltage
230 V AC
- Pick-up time (details)
25 ns
- Type
Material: PA 6.6/PBT
- Operating temperature
-40 °C - +80 °C
IP20
- Manufacturer part #
5SD74630
- Dim
(L x W x H) 71.5 x 53.4 x 90 mm
- Length
71.5 mm
- Width
53.4 mm
- Height
90 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
FALSE
3
3 modular spacing
1.4 V
350 V
40 kA
230 V
TRUE
None
IP20
FALSE
35 mm²
25 mm²
FALSE
FALSE
FALSE
TRUE
FALSE
FALSE
FALSE
FALSE
40
25
125
80
