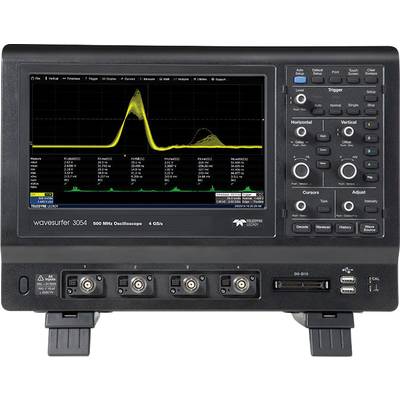

Image similar
1/2

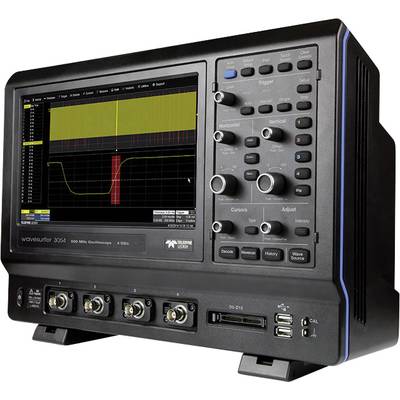

Image similar
Teledyne LeCroy WAVESURFER 3034Z Digital 350 MHz 2 GS/s 10 MP 8 Bit Digital storage (DSO) 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 12,150.42 / piece)
€ 12,150.42
plus VAT.
Highlights & Details
WaveSurfer3034Z
- 350 MHz
- No. of analogue inputs 4
Technical specifications
- Product type
Digital
- Bandwidth
350 MHz
- Channel sample rate
2 GS/s
- Displays
Colour TFT touchscreen
- Resolution
8 Bit
- Screen size
25.6 cm
- Oscilloscope features
Digital storage (DSO)
- Time base
Horizontal deflection 2 ns/DIV - 50 s/DIV
- No. of analogue inputs
4
Manufacturer's standards (no certificate)
- Reading category
CAT I
- Vertical deflection
1 mV – 10 V/div
- Input impedance
1 MΩ;50 Ω
- Input coupling
AC, DC, GND
- Input voltage
400 V
- Power supply (details)
115 V/AC; 230 V AC
- Dim
(L x W x H) 125 x 380 x 270 mm
- Weight
4.8 kg
- Display
1024 x 600 p
- Width
380 mm
- Height
270 mm
- Length
125 mm
- Interfaces
USB
USB host
Ethernet
- Channel memory depth
10 MP
- Type
WAVESURFER 3034Z
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1796303 Teledyne LeCroy WAVESURFER 3034Z Digital 350 MHz 2 GS/s 10 MP 8 Bit Digital storage (DSO) 1 pc(s)
Description
The oscilloscopes from teledyne LeCroy WaveSurfer 3000 have a state-of-the-art user interface with touch-screen for fast and intuitive access to all debug functions.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Passive probes (1 per channel)
- 1 Micro SD card (installed)
- Micro SD adapter
- Device front cover
- Getting Started manual
- Power cable.
- Bundled software options: WS3K-EMB
- WS3K PWR
- WS3K-ASSEMBLED
- WS3K AUDIO BUS
- WS3K CAR
- WS3K-CAN FD
- WS3K-FLEXRAYBUS
