Name: Mueller Electric WI-M-14-100-2 Wire 1 x 2.08 mm² Red 30.4 m
Brand: Mueller Electric
SKU: 3776114
Availability: BackOrder

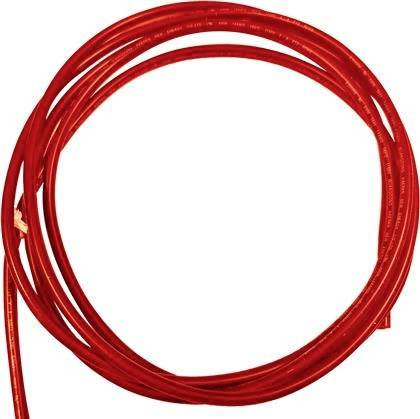

Coiled red cable or hose on a white background.

Product type

Wire

No. of leads

1 x

Cross section (each core)

2.08 mm²

Outside Ø

4.7 mm

Content

30.4 m

Datasheet (PDF)

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (1 m = € 6.74)

€ 204.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Highly flexible silicone cable (14 AWG) in red – 30.4 m coil

14 AWG, 420/0.08 mm tin-plated copper wire with a highly flexible
Silicone sheath of 4.7 mm (0.185") diameter
Voltage: 1100 V
Dielectric strength 3.2 KV/min.
Spark testing (Spark test): 10 KV
Rated temperature -40°C to 180°C.
Temperature resistance FT2

Technical specifications

Product type: Wire

No. of leads: 1 x

Content: 30.4 m

Cross section (each core): 2.08 mm²

Insulation material: Silicone

Cable features: Heat-resistant
highly flexible

Outside Ø: 4.7 mm

Nominal voltage: 1100 V

AWG max.: 14

AWG (min.): 14

Packaged: Yes

Halogen-free: Yes

Manufacturer part #: WI-M-14-100-2

Factory colour: Red

Insulation: Silicone

Core layout: Stranded wire

Core layout: 420 x 0,08 mm Einzeldrähte

Material (details): Tin-plated copper (conductor), highly flexible silicone (sleeve)

Sold per metre: No

Nominal voltage U0: 1100 V

Nominal current: 20 A

Certification marks: UL listed

Test voltage: 3.2 kV

Cross section: 1 x 2.08 mm²

Max. temperature range (flexible installation): 180 °C

Min. temperature range (flexible installation): -40 °C

Max. temperature range (fixed installation): 180 °C

Min. temperature range (fixed installation): -40 °C

Type: WI-M-14-100-2

Standards: RoHS compliant
Phthalate-free

Documents & Downloads

Datasheet

Datasheet 3776114 Mueller Electric WI-M-14-100-2 Wire 1 x 2.08 mm² Red 30.4 m

User & Safety Instructions

User & Safety Instructions 3776114 Mueller Electric WI-M-14-100-2 Wire 1 x 2.08 mm² Red 30.4 m

Description

Are you looking for maximum flexibility and extreme load-carrying capacity? Our high-quality red silicone cable offers an excellent conductivity and flexibility thanks to 420 fine single wires made of galvanized copper wire. Protected with a robust silicone sheath, it easily withstands temperatures from -40 °C to 180 °C and voltages of up to 1100 V. The perfect choice for demanding electronics projects, model construction or industrial applications, where reliability is paramount.
