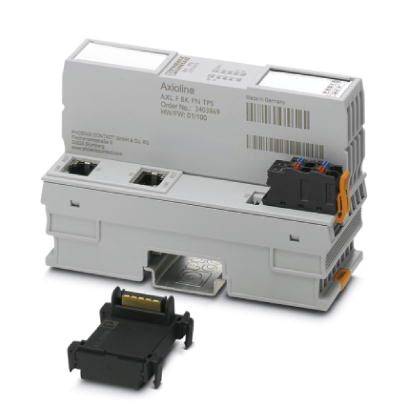

Phoenix Contact AXL F BK PN TPS 2403869 Bus connector 24 V DC
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 369.00 / piece)
€ 369.00
incl. VAT
14-day return policy included
Technical specifications
- Protective circuit: Overvoltage protection supply voltage electronic
- Color: Traffic gray A RAL 7042
- Net weight: 220.8 g
- PROTECTION CLASS III (IEC 61140, EN 61140, VDE 0140-1)
- All mounting positions permitted
- Wire stripping length: 8 mm
- Conductor cross-section rigid Min: 0.2 mm²
- Conductor cross-section rigid max. 1.5 mm²
- Conductor cross-section flexible min.: 0.2 mm²
- Conductor cross-section flexible max. 1.5 mm²
- Conductor cross-section AWG min: 24
- Conductor cross-section AWG max. 16
- Transmission speed 100 MBit/s (full duplex)
- Power consumption: Max. 14 W (with 2 A load on UBus for the I/OS)
- Product type
Bus connector
- Type
AXL F BK PN TPS
- Operating voltage
24 V DC

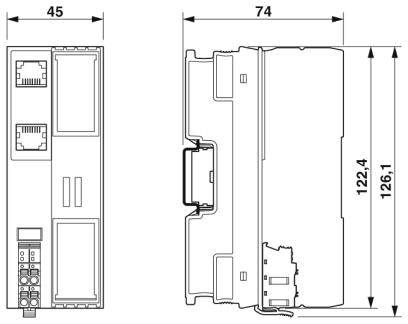

- Height
126.1 mm
- Length
74 mm
- Width
45 mm
IP20
- Dim
(L x W x H) 74 x 45 x 126.1 mm
- Connection
Push-in wire connector
- Max. current consumption
532 mA
- Manufacturer part #
2403869
- Fitting type (details)
Carry rail mounting
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-25 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2209746 Phoenix Contact AXL F BK PN TPS 2403869 Bus connector 24 V DC
Datasheet 2209746 Phoenix Contact AXL F BK PN TPS 2403869 Bus connector 24 V DC
User & Safety Instructions
User & Safety Instructions 2209746 Phoenix Contact AXL F BK PN TPS 2403869 Bus connector 24 V DC
Description
Firmware update-enabled. Typical cycle time of the Axioline F local bus is approx. 10 µs.
This text is machine translated.
This text is machine translated.
