A cylindrical black device with a ribbed casing and two wires; possibly a laser module or an LED component.

A cylindrical black device with a ribbed casing and two wires; possibly a laser module or an LED component.

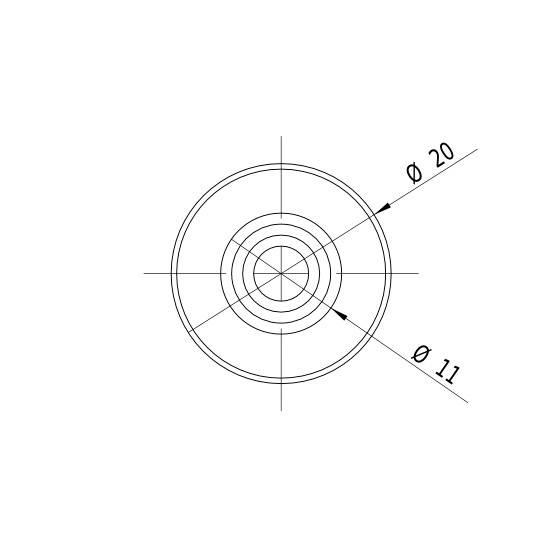

Technical drawing of a circle with two diameter specifications: 'Ø 20' externally and 'Ø 11' internally. Concentrated and symmetrical.

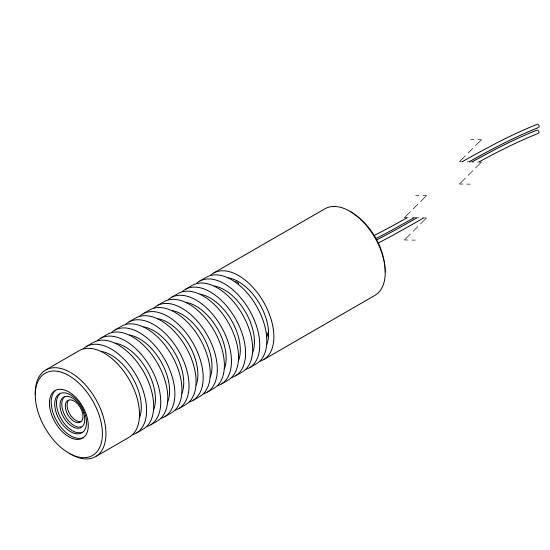

A technical drawing of a cylindrical object with grooves and a cable connection, typically an electronic component.

1/3

Product type

Laser module

Emission characteristics

Cross

Wavelength

532 nm

Power

10 mW

Laser category

2M

Datasheet (PDF)

English

Picotronic

Fast track dispatch on Wed, 23 Sep

9 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 373.95 / piece)

€ 373.95

plus VAT.

Only 9 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Laser module cross

Green
Laser category: 2M
Emission characteristics: Cross

Technical specifications

Connection cable 100 mm

Product type: Laser module

Type: CA 532-10-3 (20 x 80) 30

Emission characteristics: Cross

Focus properties: 5000 mm fixed-focus

Factory colour: Green

Wavelength: 532 nm

: 10 mW

Laser category: 2M

Angular aperture: 30°

Beam divergence: 0.2 mrad

Clearance: 10 m

Operating voltage: 3 V DC

Operating current: 250 mA

Material: Aluminium

RoHS-compliant: Yes

Max. temperature: +30 °C

Min. temperature: -15 °C

Documents & Downloads

Datasheet

English

Datasheet 1696026 Picotronic Laser module Cross Green 10 mW CA 532-10-3 (20 x 80) 30

User & Safety Instructions

European union

User & Safety Instructions 1696026 Picotronic Laser module Cross Green 10 mW CA 532-10-3 (20 x 80) 30

Information

European union

Information 1696026 Picotronic Laser module Cross Green 10 mW CA 532-10-3 (20 x 80) 30

Conformity certificate

Conformity certificate 1696026 Picotronic Laser module Cross Green 10 mW CA 532-10-3 (20 x 80) 30

Description

Hints

Class 2M: laser radiation! Observe safety instructions! Never look into the beam (may damage your retina).
