Black cylindrical battery module with red and black wires protruding from one end, set against a white background.

Black cylindrical battery module with red and black wires protruding from one end, set against a white background.

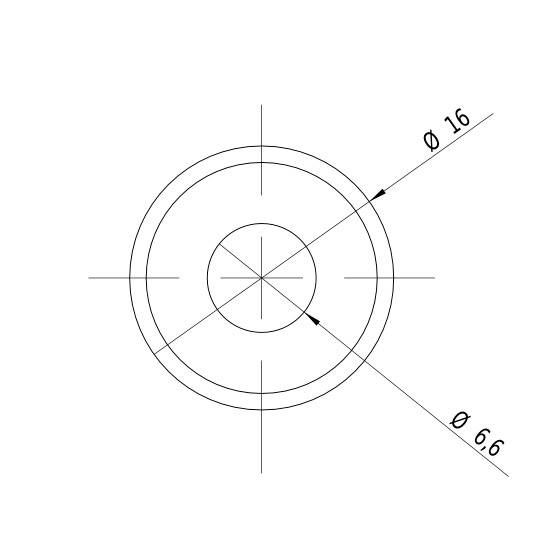

Technical drawing of a circle with specified diameters: outer circle 16 mm, inner circle 6.6 mm. Drawing lines and dimensions are visible.

A cylindrical temperature sensor with two protruding cables.

Technical drawing of a cylindrical object, length 45 mm, diameter 16 mm, with two cables.

1/4

Picotronic

Datasheet (PDF)

English

Dispatches on Thu, 22 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 105.03 / piece)

€ 105.03

plus VAT.

Report legal concerns

Highlights & Details

Laser module cross

Red
Laser category: 1
Emission characteristics: Cross

Technical specifications

Connection cable 100 mm

Type: CB 635-2-5 (16x45) 10 DEG F110

Emission characteristics: Cross

Focus properties: 110 mm fixed-focus

Factory colour: Red

Wavelength: 635 nm

: 2 mW

Laser category: 1

Angular aperture: 10°

Beam divergence: 0.3 mrad

Clearance: 0.11 m

Operating voltage: 5 V DC

Operating current: 28 mA

Material: Aluminium

RoHS-compliant: Yes

Max. temperature: +50 °C

Min. temperature: -20 °C

Product type: Laser module

Documents & Downloads

Datasheet

English

Datasheet 1695982 Picotronic Laser module Cross Red 2 mW CB 635-2-5 (16x45) 10 DEG F110

User & Safety Instructions

European union

User & Safety Instructions 1695982 Picotronic Laser module Cross Red 2 mW CB 635-2-5 (16x45) 10 DEG F110

Information

European union

Information 1695982 Picotronic Laser module Cross Red 2 mW CB 635-2-5 (16x45) 10 DEG F110

Conformity certificate

Conformity certificate 1695982 Picotronic Laser module Cross Red 2 mW CB 635-2-5 (16x45) 10 DEG F110

Description

Hints

Class 1: laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
