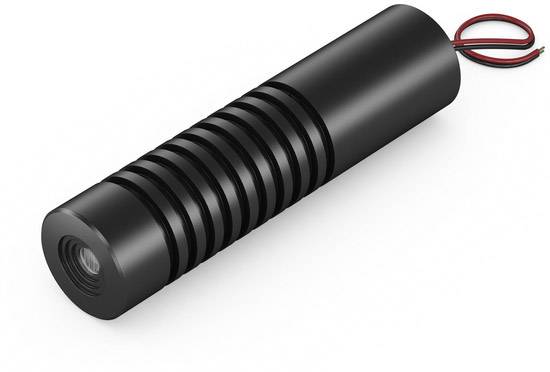

Picotronic Laser module Cross Green 0.4 mW CA532-0.4-3.20x80
Product type
Laser module
Emission characteristics
Cross
Wavelength
532 nm
Power
0.4 mW
Laser category
1
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 409.00 / piece)
€ 409.00
incl. VAT
14-day return policy included
Highlights & Details
Laser module cross
- Green
- Laser category: 1
- Emission characteristics: Cross
Technical specifications
- Connection cable 100 mm
- Product type
Laser module
- Type
CA532-0.4-3.20x80
- Emission characteristics
Cross
- Focus properties
2000 mm fixed-focus
- Factory colour
Green
- Wavelength
532 nm
0.4 mW
- Laser category
1
- Angular aperture
90°
- Beam divergence
0.1 mrad
- Clearance
2 m
- Operating voltage
3 V DC
- Operating current
200 mA
- Material
Aluminium
- RoHS-compliant
Yes
- Max. temperature
+30 °C
- Min. temperature
-15 °C
Documents & Downloads
Datasheet
Datasheet 1695938 Picotronic Laser module Cross Green 0.4 mW CA532-0.4-3.20x80
User & Safety Instructions
User & Safety Instructions 1695938 Picotronic Laser module Cross Green 0.4 mW CA532-0.4-3.20x80
Information
Information 1695938 Picotronic Laser module Cross Green 0.4 mW CA532-0.4-3.20x80
Conformity certificate
Conformity certificate 1695938 Picotronic Laser module Cross Green 0.4 mW CA532-0.4-3.20x80
Description
Hints
Class 1: laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
