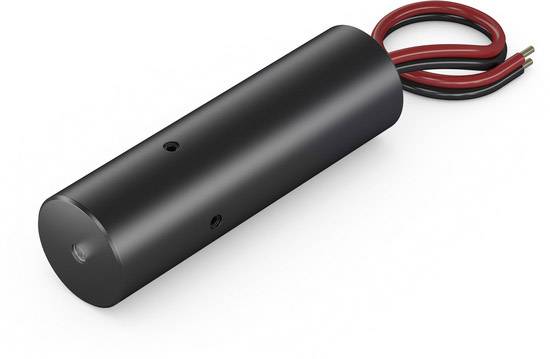

Picotronic Laser module Dot Green 1 mW DD 520-1-12 (12 x 40) - QCW
Product type
Laser module
Emission characteristics
Dot
Wavelength
520 nm
Power
1 mW
Laser category
2
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 399.00 / piece)
€ 399.00
incl. VAT
Only 1 Piece(s) available
Highlights & Details
Laser module point
- Green
- Laser category: 2
- Emission characteristics: Dot
Technical specifications

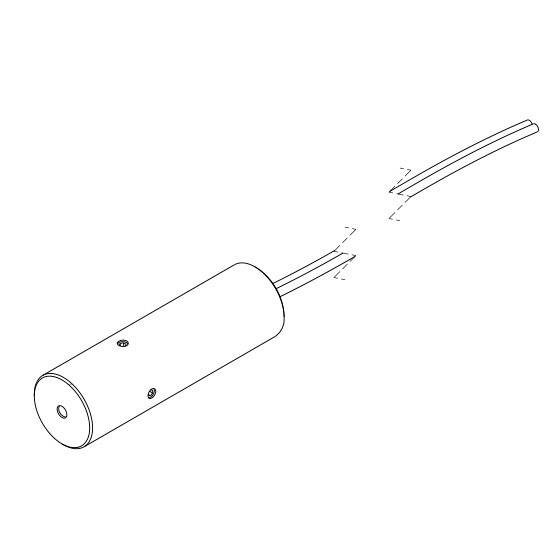

- Connection cable 3000 mm
- Product type
Laser module
- Type

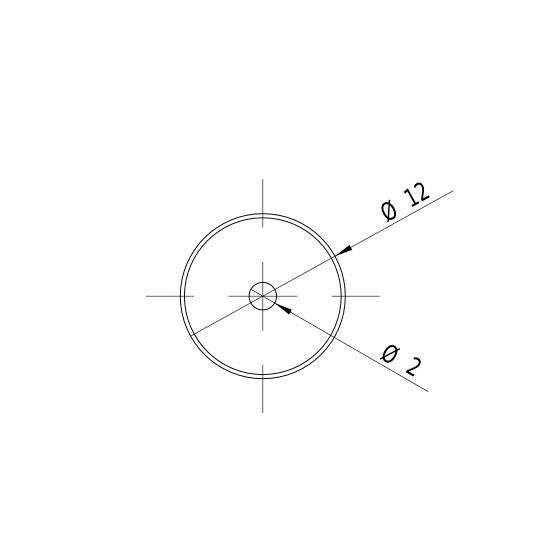

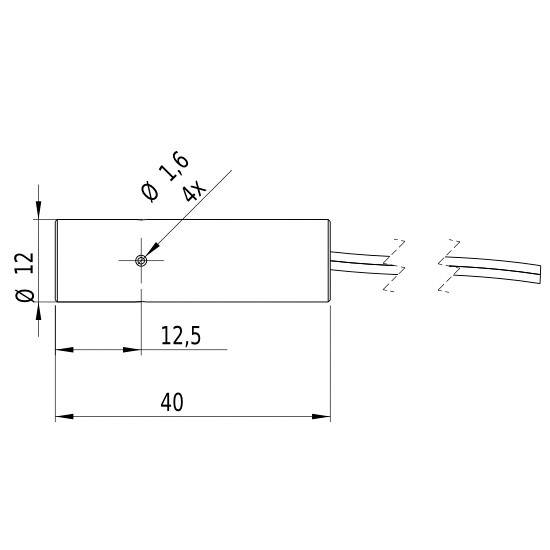

DD 520-1-12 (12 x 40) - QCW
- Emission characteristics
Dot
- Focus properties
collimated
- Factory colour
Green
- Wavelength
520 nm
1 mW
- Laser category
2
- Beam divergence
0.5 mrad
- Clearance
35 m
- Operating voltage
12 V DC
- Operating current
10 mA
- Material
Aluminium
- RoHS-compliant
Yes
- Max. temperature
+60 °C
- Min. temperature
-10 °C
Documents & Downloads
Datasheet
Datasheet 1696014 Picotronic Laser module Dot Green 1 mW DD 520-1-12 (12 x 40) - QCW
User & Safety Instructions
User & Safety Instructions 1696014 Picotronic Laser module Dot Green 1 mW DD 520-1-12 (12 x 40) - QCW
Information
Information 1696014 Picotronic Laser module Dot Green 1 mW DD 520-1-12 (12 x 40) - QCW
Conformity certificate
Conformity certificate 1696014 Picotronic Laser module Dot Green 1 mW DD 520-1-12 (12 x 40) - QCW
Description
Hints
Class 2 laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
