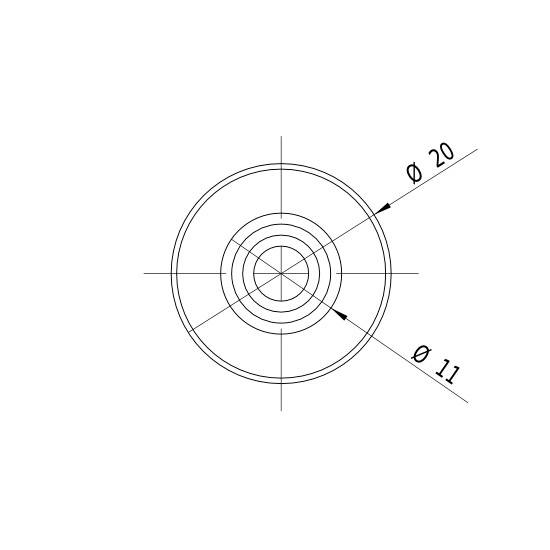

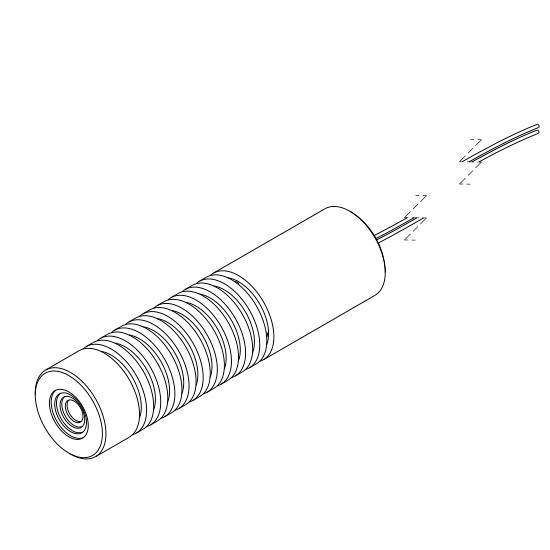

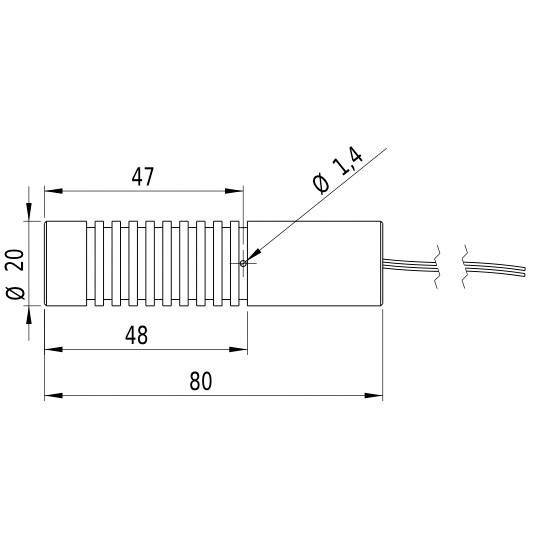

Picotronic Laser module Dot Green 1 mW DD 532-1-24 (20 x 80)
Product type
Laser module
Emission characteristics
Dot
Wavelength
532 nm
Power
1 mW
Laser category
2
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 465.00 / piece)
€ 465.00
incl. VAT
Only 4 Piece(s) available
Highlights & Details
Laser module point
- Green
- Laser category: 2
- Emission characteristics: Dot
Technical specifications
- Connection cable 100 mm
- Product type
Laser module
- Type
DD 532-1-24 (20 x 80)
- Emission characteristics
Dot
- Focus properties
collimated
- Factory colour
Green
- Wavelength
532 nm
1 mW
- Laser category
2
- Beam divergence
0.5 mrad
- Clearance
50 m
- Operating voltage
24 V DC
- Operating current
11 mA
- Material
Aluminium
- RoHS-compliant
Yes
- Max. temperature
+30 °C
- Min. temperature
-15 °C
Documents & Downloads
Datasheet
Datasheet 1696028 Picotronic Laser module Dot Green 1 mW DD 532-1-24 (20 x 80)
User & Safety Instructions
User & Safety Instructions 1696028 Picotronic Laser module Dot Green 1 mW DD 532-1-24 (20 x 80)
Information
Information 1696028 Picotronic Laser module Dot Green 1 mW DD 532-1-24 (20 x 80)
Conformity certificate
Conformity certificate 1696028 Picotronic Laser module Dot Green 1 mW DD 532-1-24 (20 x 80)
Description
Hints
Class 2 laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
