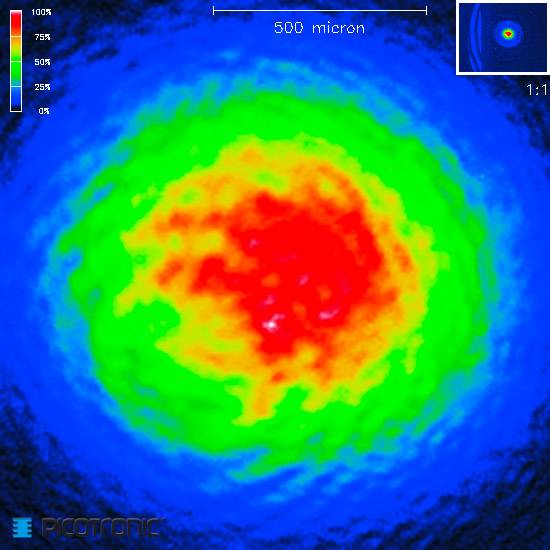

A thermal imaging scan shows a bright red-yellow zone in the centre, transitioning from blue to green and finally to red. Scale: 500 micrometres.

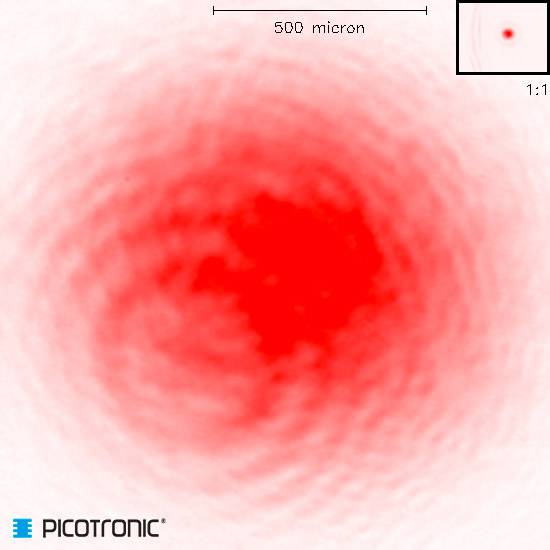

Pattern of a laser beam in the red spectrum, centrically concentrated with enlarged section top right, scale: 500 microns.

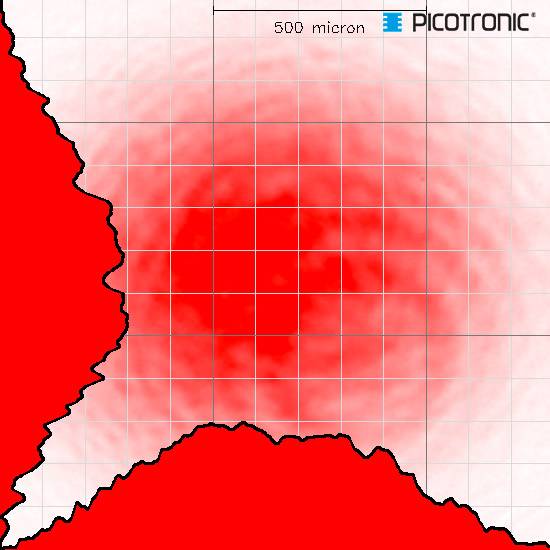

Red light pattern with a central luminous point, symmetrically spreading outwards. Background with grid and scale of 500 micrometres.

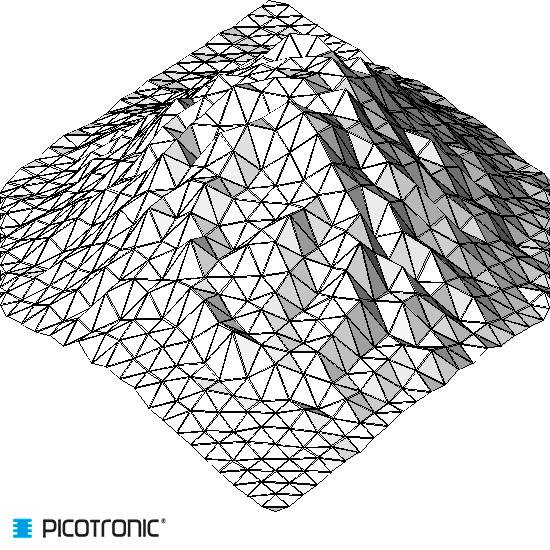

'3D wire-frame model of a mountain, geometrically overlaid with triangles.'

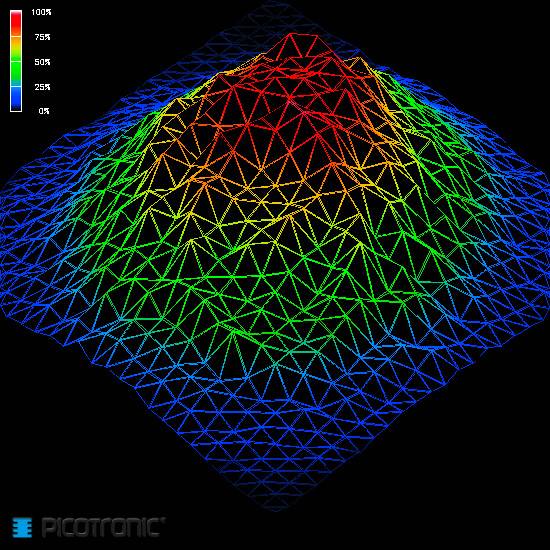

A three-dimensional graphical diagram shows a colourful mountain-like elevation, graded from Blue (0%) to Red (100%).

1/6

Picotronic

Product type

Laser module

Emission characteristics

Dot

Wavelength

635 nm

Power

1 mW

Laser category

2

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 12 Nov

77 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 199.99 / piece)

€ 199.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Laser module point

Red
Laser category: 2
Emission characteristics: Dot

Technical specifications

Product type: Laser module

Type: DB 635-1-3-FA (22 x 105)-S-AP

Emission characteristics: Dot

Focus properties: 5000 mm fixed-focus

Factory colour: Red

Wavelength: 635 nm

: 1 mW

Laser category: 2

Beam divergence: 0.3 mrad

Clearance: 10 m

Operating voltage: 3 V DC

Operating current: 30 mA

Material: Aluminium

RoHS-compliant: Yes

Max. temperature: +50 °C

Min. temperature: -20 °C

Documents & Downloads

Datasheet

Datasheet 1695960 Picotronic Laser module Dot Red 1 mW DB 635-1-3-FA (22 x 105)-S-AP

User & Safety Instructions

User & Safety Instructions 1695960 Picotronic Laser module Dot Red 1 mW DB 635-1-3-FA (22 x 105)-S-AP

Information

Information 1695960 Picotronic Laser module Dot Red 1 mW DB 635-1-3-FA (22 x 105)-S-AP

Conformity certificate

Conformity certificate 1695960 Picotronic Laser module Dot Red 1 mW DB 635-1-3-FA (22 x 105)-S-AP

Scope of delivery

incl. Batteries
This text is machine translated.

Hints

Class 2 laser beam! Observe safety instructions! Never look into the beam (may damage your retina).

Description

Scope of delivery

incl. Batteries
This text is machine translated.

Hints

Class 2 laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
