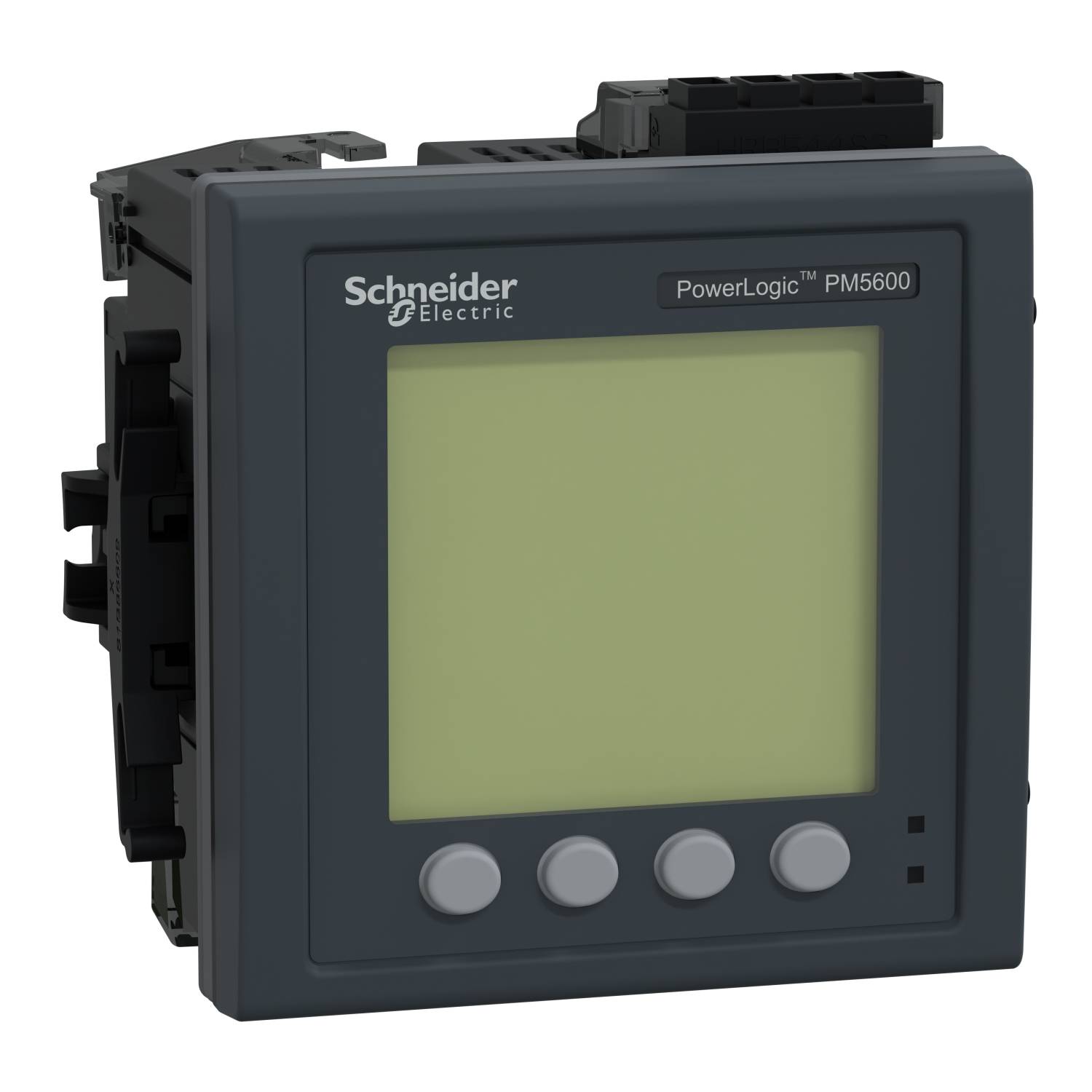

Schneider Electric METSEPM5650 METSEPM5650 Electricity meter (AC) Digital 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electricity meter (AC)
Display
Digital
Dim
(L x W x H) 77 x 96 x 96 mm
Weight
450 g
Reading type
Active energy
Datasheet (PDF)
Number
Total (€ 894.96 / piece)
€ 894.96
plus VAT.
14-day return policy included
Technical specifications
- Product type
Electricity meter (AC)
- Display
Digital
- Dim
(L x W x H) 77 x 96 x 96 mm
- Weight
450 g
- Reading type
Active energy
- Nominal voltage range
100 up to 480 V AC
- Mains voltage (max.)
480 V AC
- Mains voltage (min.)
100 V AC
- Width
96 mm
- Height
96 mm
- Length
77 mm
- Current (max.)
5 A
- Current (min.)
1 A
- Current range
1 up to 5 A
- Type
METSEPM5650
Front mounting
102
Measurement transformer
112 mm
AC/DC
TRUE
Graphic
10.0 A
TRUE
0.2
TRUE
TRUE
TRUE
TRUE
FALSE
FALSE
TRUE
TRUE
TRUE
TRUE
FALSE
Optic
Three conductor/four conductor
TRUE
5.0 A
FALSE
FALSE
FALSE
- UKCA
yes
