Name: Phoenix Contact 1704949 Screw terminal 4.00 mm² Number of pins 5 Green 50 pc(s)
Brand: Phoenix Contact
SKU: 196599
Price: 154.99 EUR
Availability: InStock

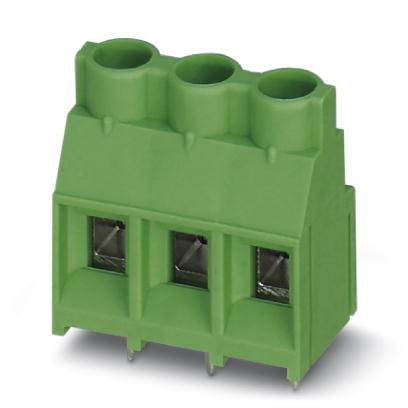

Green three-pole solder connector for circuit boards, used in electronic applications for stable connections.

Product type

Screw terminal

7.62 mm

Pins per row

Number of pins

Connection

Screw terminal

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 17 Nov

29 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 50 pc(s))

Set(s)

Total (€ 3.10 / piece)

€ 154.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

PCB terminal block MKDS 5/ 5-7,62

Content 50 pc(s)

Technical specifications

Type: MKDS 5/ 5-7,62

Product type: Screw terminal

Features: + extractor sleeve
Stackable

CS: 7.62 mm

No. of rows: 1

Pins per row: 5

Number of pins: 5

Series: MKDS

Min. stripping length: 8 mm

Stripping length (max.): 8 mm

Connection: Screw terminal
Print

Nominal current: 32 A

Cross section (flexible) (min.): 0.20 mm²

Nominal current - rounded value: 32 A

Cross section (inflexible) (min.): 0.20 mm²

Cross section (flexible) (max.): 4.00 mm²

Cross section (inflexible) (max.): 4.00 mm²

AWG (min.): 24

Connector orientation: Parallel (to the PCB)

AWG max.: 10

Contact material: Cathode copper, tin plated

Factory colour: Green

Wire protection: Yes

Actuation direction: Perpendicular (to the PCB)

Manufacturer part #: 1704949

Industrial packaging: Yes

Content: 50 pc(s)

Nominal voltage: 630 V

Width: 38.10 mm

Height: 26.60 mm

Length: 19.05 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 196599 Phoenix Contact 1704949 Screw terminal 4.00 mm² Number of pins 5 Green 50 pc(s)

User & Safety Instructions

User & Safety Instructions 196599 Phoenix Contact 1704949 Screw terminal 4.00 mm² Number of pins 5 Green 50 pc(s)

Description

PCB terminal block, Nominal current: 32 A, Nom. voltage: 630 V, Pitch: 7.62 mm, Number of positions: 5, Connection method: Screw connection, Mounting: Soldering, Conductor/PCB connection direction: 0 °
