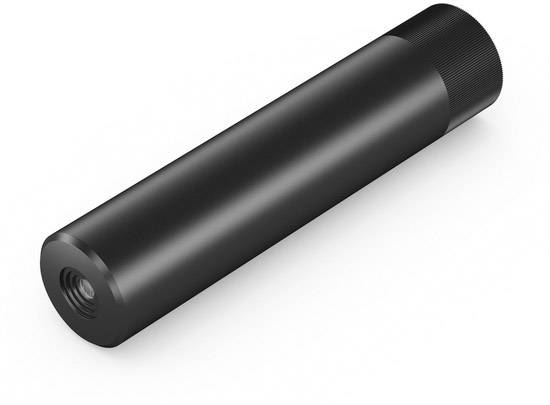

A cylindrical black object that looks like a microphone arm or extension arm, set against a white background.

A cylindrical black object that looks like a microphone arm or extension arm, set against a white background.

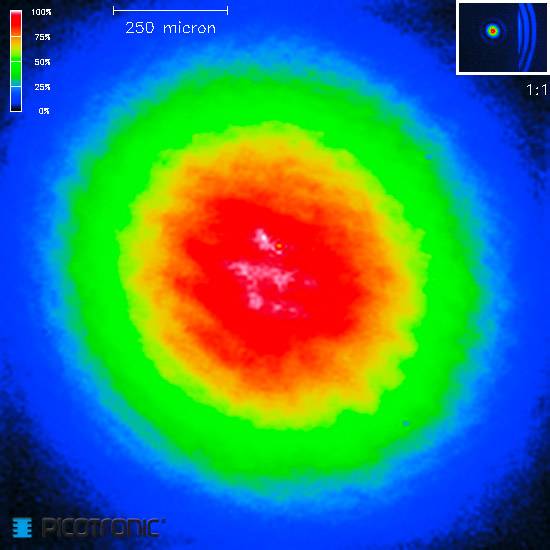

'Colour thermal imaging of a circular object. Centre in red, surrounded by green and blue. Scale 250 micrometres.'

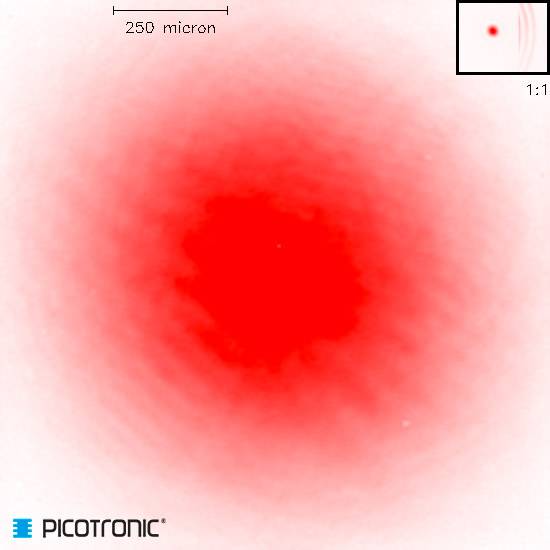

'Laser point image displayed with red colouration and focus area shown. The scale indicates distances of 250 micrometres.'

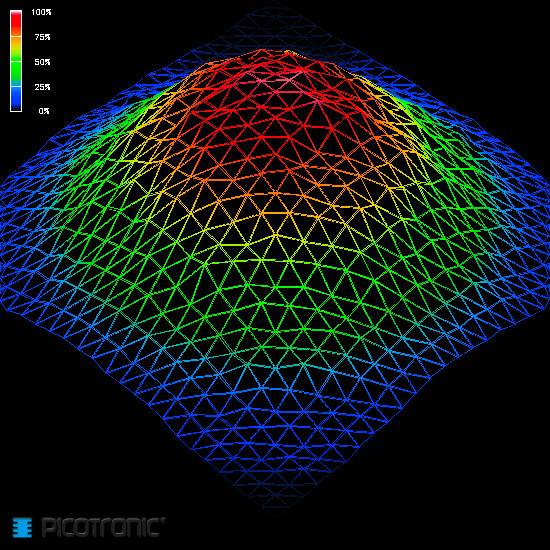

3D diagram of a coloured, mesh-like surface representing a mountain formation. Colour legend indicates values from 0% (blue) to 100% (red).

1/6

Picotronic

Product type

Laser module

Emission characteristics

Dot

Wavelength

650 nm

Power

1 mW

Laser category

2

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 12 Nov

58 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 174.99 / piece)

€ 174.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Laser module point

Red
Laser category: 2
Emission characteristics: Dot

Technical specifications

Product type: Laser module

Type: DB650-1-3-FA (22 x 105)-S-AP

Emission characteristics: Dot

Focus properties: 5000 mm fixed-focus

Factory colour: Red

Wavelength: 650 nm

: 1 mW

Laser category: 2

Beam divergence: 0.3 mrad

Clearance: 10 m

Operating voltage: 3 V DC

Operating current: 19 mA

Material: Aluminium

RoHS-compliant: Yes

Max. temperature: +50 °C

Min. temperature: -20 °C

Documents & Downloads

Datasheet

Datasheet 1696032 Picotronic Laser module Dot Red 1 mW DB650-1-3-FA (22 x 105)-S-AP

User & Safety Instructions

User & Safety Instructions 1696032 Picotronic Laser module Dot Red 1 mW DB650-1-3-FA (22 x 105)-S-AP

Information

Information 1696032 Picotronic Laser module Dot Red 1 mW DB650-1-3-FA (22 x 105)-S-AP

Conformity certificate

Conformity certificate 1696032 Picotronic Laser module Dot Red 1 mW DB650-1-3-FA (22 x 105)-S-AP

Scope of delivery

incl. Batteries
This text is machine translated.

Hints

Class 2 laser beam! Observe safety instructions! Never look into the beam (may damage your retina).

Description

Scope of delivery

incl. Batteries
This text is machine translated.

Hints

Class 2 laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
