Picotronic Laser module Dot Red 1 mW MI650-1-5 (8 x 21) - AP

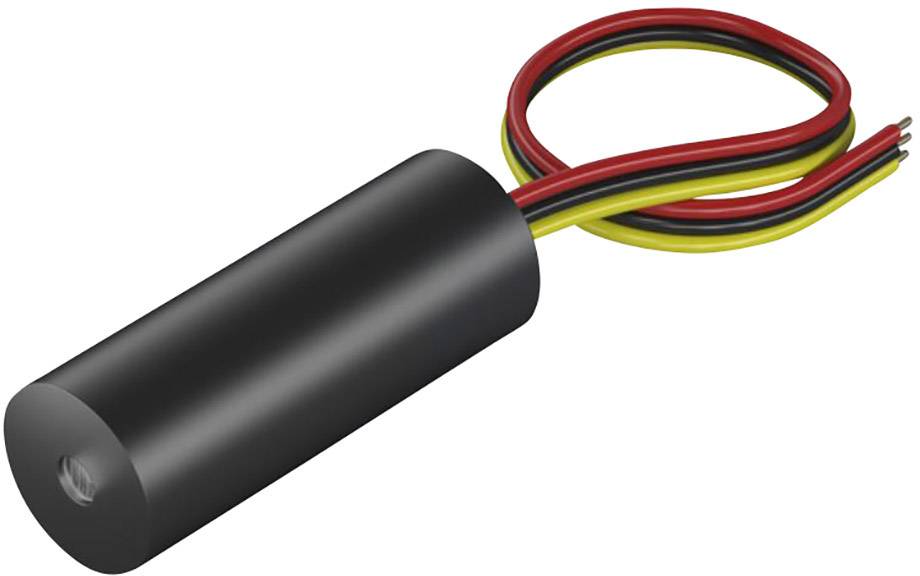

A cylindrical, black housing with three protruding isolated wires in the colours red, yellow, and black.
Technical Drawing: Two concentric circles with diameters 'Ø 8' and 'Ø 2', connected by centreline axes.
A cylindrical sensor with two cables leading away from one end.
'Technical drawing of a cylindrical object with a diameter of 8 mm and a length of 21 mm, with attached cables.'

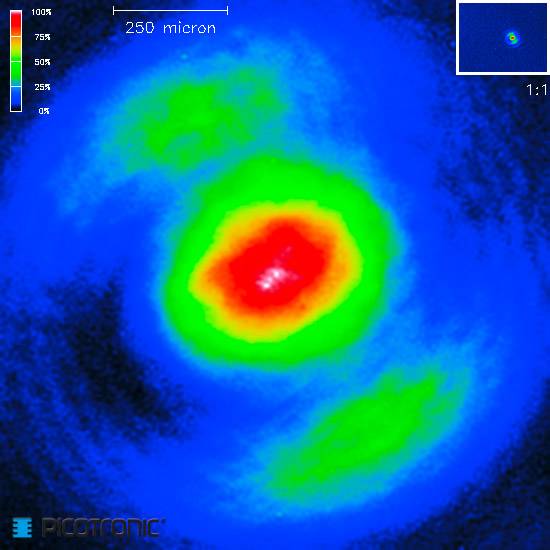

Thermal image shows a central red zone, surrounded by green and blue areas, representing thermal radiation in microns.

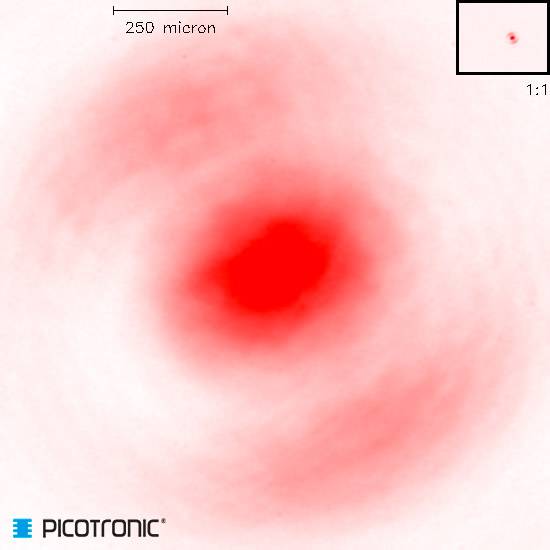

Red illumination pattern in the centre with blurred edges on a white background, scale of 250 micrometres in the top left corner.

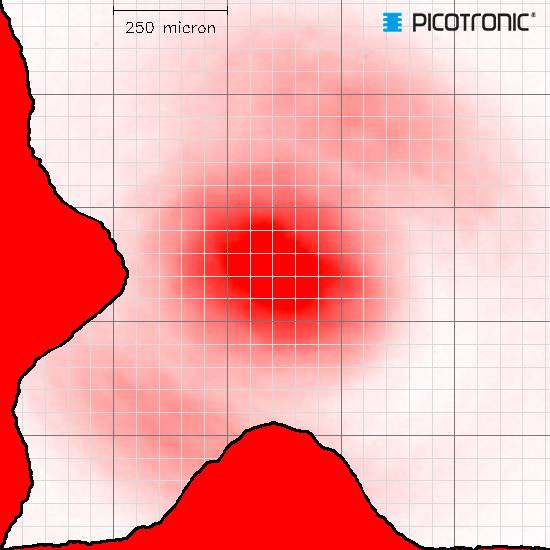

The image shows a raster map with a red distribution area. There is a more intense red zone in the centre. Text in top left: '250 micron'.

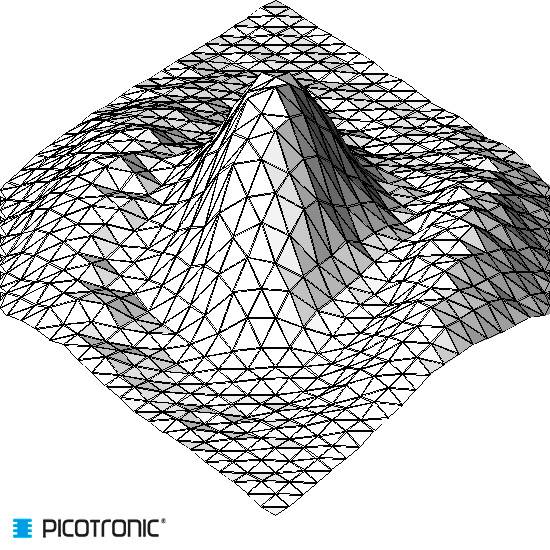

Three-dimensional wire mesh model with a central elevation. Lower corner displays 'Picotronic' logo.

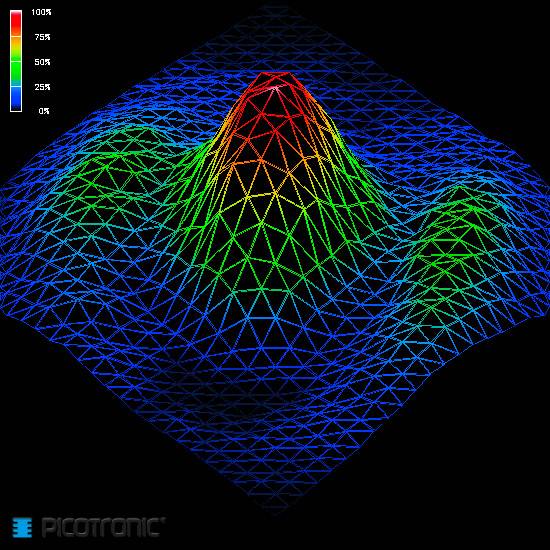

3D diagram with colourful, interconnected points representing heights. Colour legend ranging from Blue (0%) to Red (100%) indicating value intensity.
1/9
Product type
Laser module
Emission characteristics
Dot
Wavelength
650 nm
Power
1 mW
Laser category
2
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Tue 22 Dec
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 75.99 / piece)
€ 75.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Laser module point

  • Red
  • Laser category: 2
  • Emission characteristics: Dot
  • Yellow warning sign with the text: 'Laser Radiation. Do not look into the beam. Laser Class 2 according to BS EN 60825-1:2008-05'.

Technical specifications

  • Connection cable 100 mm
Product type

Laser module

Type

MI650-1-5 (8 x 21) - AP

Emission characteristics

Dot

Focus properties

collimated

Factory colour

Red

Wavelength

650 nm

1 mW

Laser category

2

Beam divergence

1.5 mrad

Clearance

10 m

Operating voltage

5 V DC

Operating current

25 mA

Material

Aluminium

RoHS-compliant

Yes

Max. temperature

+50 °C

Min. temperature

-20 °C

Documents & Downloads

Datasheet

Datasheet 1695969 Picotronic Laser module Dot Red 1 mW MI650-1-5 (8 x 21) - AP

User & Safety Instructions

User & Safety Instructions 1695969 Picotronic Laser module Dot Red 1 mW MI650-1-5 (8 x 21) - AP

Information

Information 1695969 Picotronic Laser module Dot Red 1 mW MI650-1-5 (8 x 21) - AP

Conformity certificate

Conformity certificate 1695969 Picotronic Laser module Dot Red 1 mW MI650-1-5 (8 x 21) - AP

Description

Hints

Class 2 laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
