Siemens 3VA1010-4ED32-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 100 - 100 A Switching voltage (max.): 69

A three-pole circuit breaker with Siemens logo, suitable for industrial applications to interrupt high current flow.

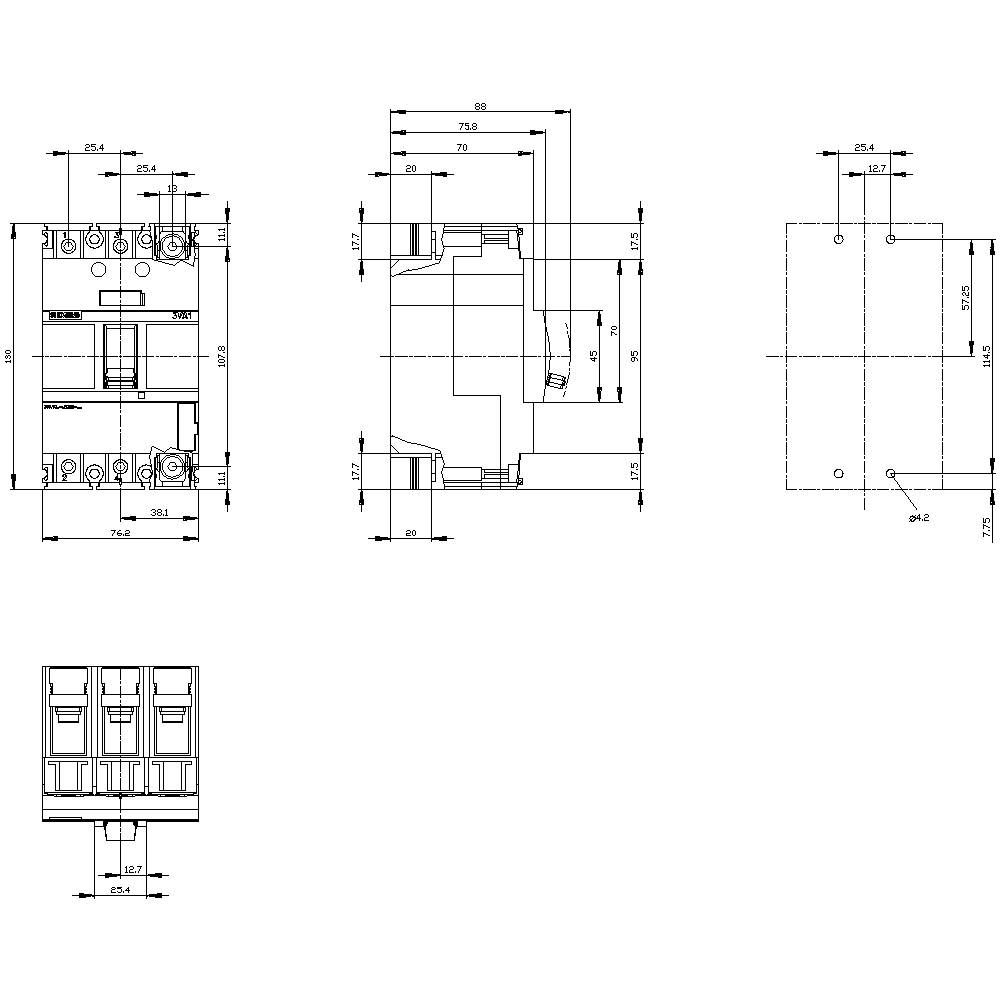

Technical drawing of an electrical switch with front and side views, to scale with detailed dimensions.
1/2
Image similar
Product type
Circuit breaker
Amperage adjustment range (max.)
100 A
Connection
Screws
Type
3VA1010-4ED32-0AA0
Amperage adjustment range (min.)
100 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Wed 18 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 359.00 / piece)
€ 359.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Design: System Protection
  • Power loss: 8.33 W
  • Weight: 0,948 kg
  • Mechanical life: 15000
  • Electrical life: 8000
  • Isolation voltage: 800 V
  • Mains frequency: 50/60 Hz.
Product type

Circuit breaker

Type

3VA1010-4ED32-0AA0

Amperage adjustment range (min.)

100 A

Amperage adjustment range (max.)

100 A

Adjustment range (amperage)

100 - 100 A

No. of pins

3-pin

Switching voltage (max.)

690 V AC

Mounting type

Fixed

Min. temperature

-25 °C

Max. temperature

+70 °C

Breaking capacity rating

S

OCR type

TM210

Features

pluggable

Connection

Screws

IP40

Depth

70 mm

Width

76.2 mm

Height

130 mm

Dim

(W x H x D) 76.2 x 130 x 70 mm

Content

1 pc(s)

RoHS-compliant

Yes

0

0

100 A

3

0

25 W

IP40

Front side

FALSE

Screw connection

Rocker lever

36 kA

TRUE

FALSE

FALSE

Built-in device fixed built-in technique

TRUE

TRUE

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1737862 Siemens 3VA1010-4ED32-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 100 - 100 A Switching voltage (max.): 69

User & Safety Instructions

User & Safety Instructions 1737862 Siemens 3VA1010-4ED32-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 100 - 100 A Switching voltage (max.): 69

Description

circuit breaker 3VA1 IEC frame 160 breaking capacity class S Icu=36kA @ 415 V 4-pole, line protection TM240, ATAM, In=100A overload protection ir=70A ...100A short circuit protection iI=5...10 x In neutral protection 50% cable connection
