Buy My Wall HP55AL TV wall mount 101,6 cm (40") - 165,1 cm (65")

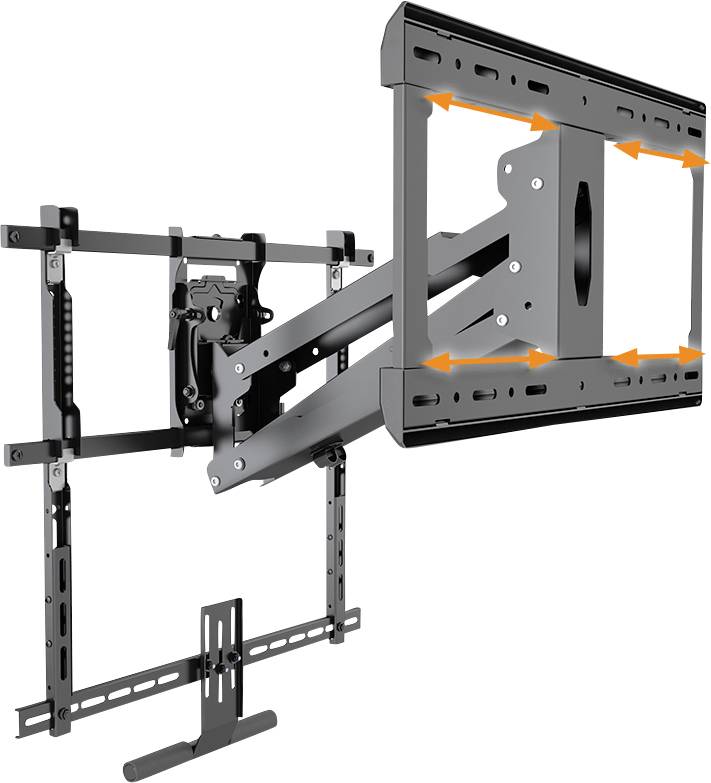

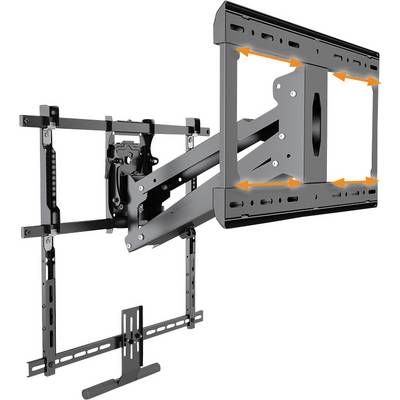

Wall-mounted monitor bracket with pivoting arms for flexible positioning. Arrows indicate direction of movement.

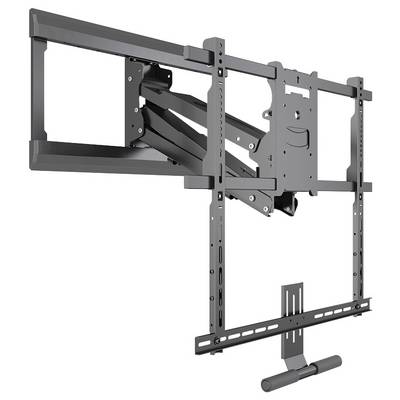

'Black TV wall bracket with extendable arm, suitable for large flat-screen televisions.'

An adjustable TV wall mount that can be moved in different directions. It shows arm mechanisms and brackets.

A universal metal TV wall mount with adjustable arms, suitable for large flat-screen televisions.

Side view of an adjustable wall mount with a television, showing flexible arm mechanisms and cabling for adaptable mounting.

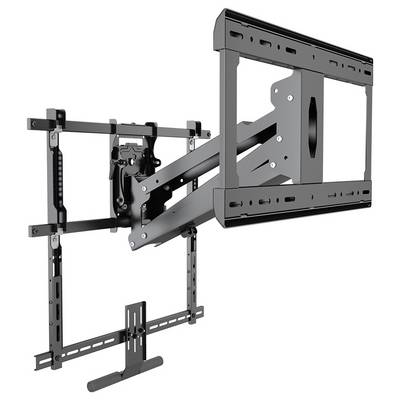

A height-adjustable metal TV wall mount with an extendable arm, suitable for mounting a flatscreen television on the wall.

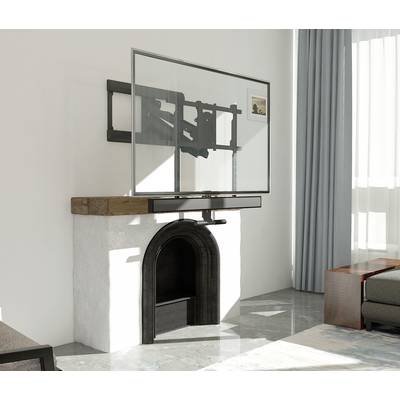

A flat-screen television is mounted on a wall bracket above an unused fireplace. A sofa is positioned to the right of the image.

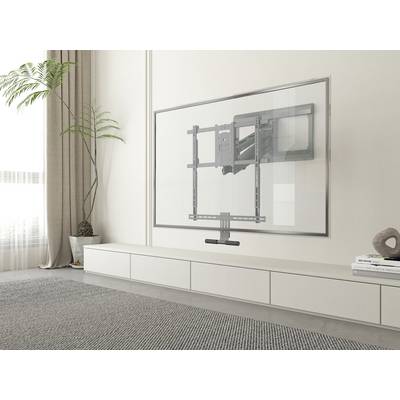

A modern living room with a flat television mounted on the wall, a large pot with a plant standing to the left of it.

'Illustration of a TV wall mount with swivel options. Maximum swivel angle: ±5°. Shows mounting plate and fixing screws.'

'Two TV wall mounts shown: both are extendable, one retracted with a 145mm (5.7") distance from the wall, the other extended.'

A television is shown mounted on a bracket that is pivotable by 115 degrees. This enables flexible viewing angles.

'Stable wall mount with adjustable arm for flat screen televisions. Shows height adjustment of 100 mm (3.9 inches).'

Mounting bracket with integrated height adjustment mechanism, suitable for screen installations.

The wall mounting mechanism indicates a pivoting movement of 655 mm at 115 degrees.

'TV Wall Mount' shows mounting process. Main image: Mounting bracket on wall. Small images: Details of spring-loaded adjustment mechanism.

Technical drawing of a mechanical lifting system with dimensions in millimetres and inches. Shows front and side view with measurements.

Vertical side view of a tiltable wall mounting mechanism for flat screens, with a tilt angle ranging from -5° to +10°.

'The image shows a mount with a tilt range of ±30°, illustrated by an arrow over a screen that is being tilted.'

1/18

Fast track dispatch on Mon, 14 Sep

1 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 168.06 / piece)

€ 168.06

plus VAT.

Only 1 Piece(s) available

Report legal concerns

Highlights & Details

My Wall HP55AL TV wall mount

Supports VESA standards up to
Suitable for displays sized (range): 101,6 cm (40") - 165,1 cm (65")
Load capacity (max.) 25 kg

Technical specifications

Product type: TV wall mount

Suitable for: 101,6 cm (40")
165,1 cm (65")

Suitable for: 101,6 cm (40") - 165,1 cm (65")

Max. load capacity: 25 kg

: No

: 100 x 100 mm
600 x 500 mm

Rotation: 10°

Tilt range (bottom): 5°

Tilt range (top): 10°

Swivel range (left): 30°

Swivel range (right): 30°

Factory colour: Black

Add-on displays: 1 Display(s)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3375682 My Wall HP55AL TV wall mount 101,6 cm (40") - 165,1 cm (65")

Information

Information 3375682 My Wall HP55AL TV wall mount 101,6 cm (40") - 165,1 cm (65")

Warranty Terms

Warranty Terms 3375682 My Wall HP55AL TV wall mount 101,6 cm (40") - 165,1 cm (65")

Description

The fully movable TV wall bracket can be moved to the side. Experience with 4-fold adjustability television in a new dimension. The screen can be moved horizontally along the bracket. In addition, one can tilt it forward and backward and can swivel it to the right and left. This exact adjustment prevents unwanted glare effects and you can enjoy your movies and sports events in the best way.

The TV holder can be used for TVs from different manufacturers with screen sizes of 42" - 65" (107 - 165 cm), a VESA dimension of 100 x 100 up to 600 x 500 mm and a weight of 8-25 kg. The built-in gas pressure spring can be locked exactly to the weight of the television thanks to an easy to read weight scale. This allows the screen to be set to the ideal position with gentle pressure. In order to round off the entertainment pleasure, the TV wall bracket is equipped with a rail for mounting a soundbar. So you can enjoy picture and sound in harmony.

The installation is simple thanks to the accompanying instructions and the mounting accessories. The integrated cable management enables a clean and orderly laying of the necessary cables. Experience the advantages of the fully movable wall bracket by My Wall and treat yourself to a bit extra comfort for your television evening.
Up to new heights!
adjustable 4-way
Easily accessible thanks to gas pressure spring and hand grip
With 6 bits. Soundbar mounting brackets

This text is machine translated.

Features

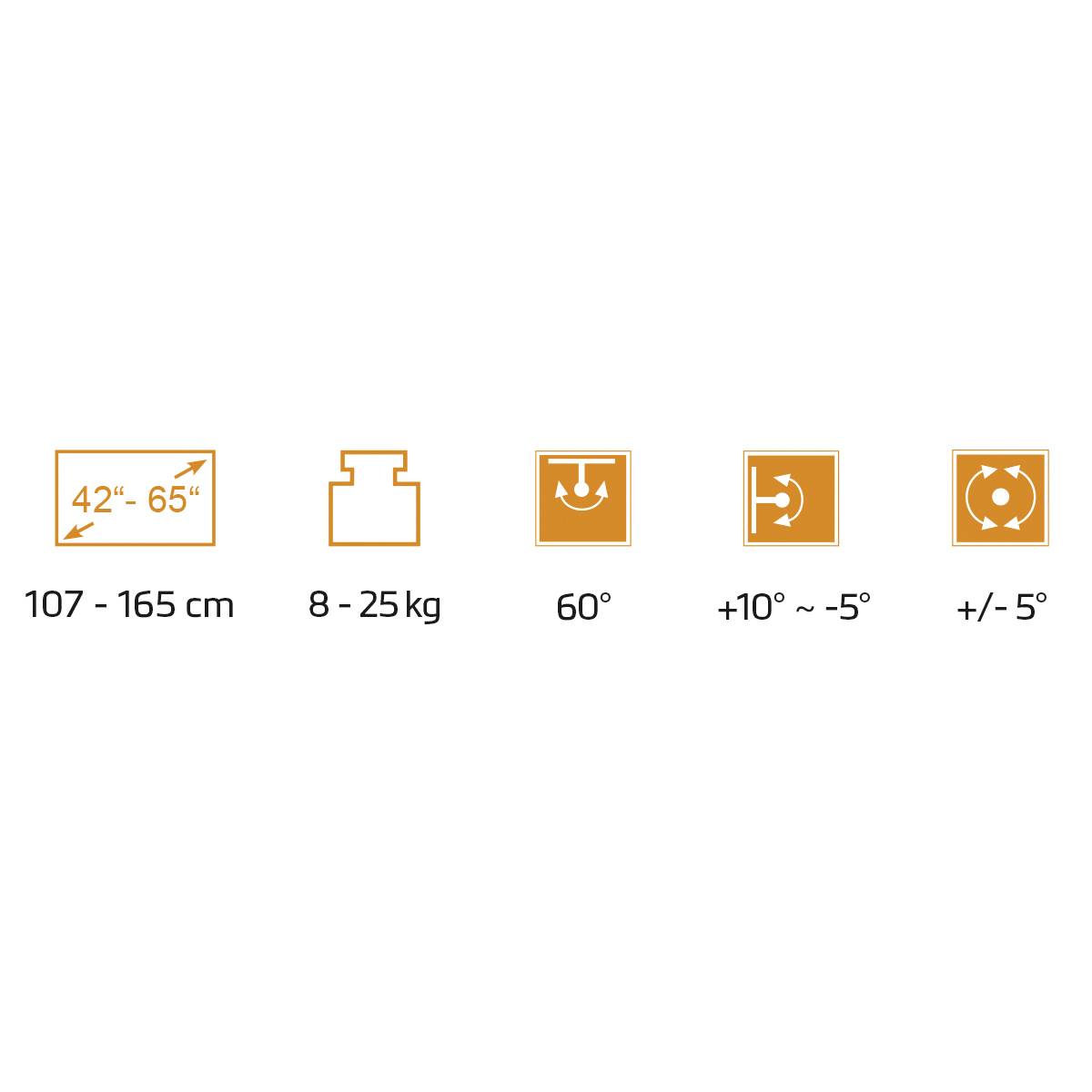

For screens 42" - 65" (107 - 165 cm)
Load 8 to 25 kg
With integrated gas spring
With 6 bits. Bracket for Soundbar
Easy height adjustment thanks to adjustable hand grip
Tilts +10°/-5°
Laterally rotatable: 60° screen horizontally adjustable + / - 5°
VESA:100x100 up to 600x500
With cable management Including mounting hardware and installation instructions
User manual

Scope of delivery

TV wall bracket HP55AL
User manual.
