Picotronic Laser module Dot Red 0.4 mW DD 635-0.4-24 (12 x 45)
Product type
Laser module
Emission characteristics
Dot
Wavelength
635 nm
Power
0.4 mW
(Ø)
12 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 119.99 / piece)
€ 119.99
incl. VAT
14-day return policy included
Highlights & Details
Insulated point laser, red
- Red
- Laser category: 1
- Emission characteristics: Dot
Technical specifications
- Product type
Laser module
- Type
DD 635-0.4-24 (12 x 45)
- Emission characteristics
Dot
- Focus properties
Selectable focus
- Factory colour
Red
- Wavelength
635 nm
0.4 mW
- (Ø)
12 mm
- Length
45 mm
- Laser category
1
- Beam divergence
0.5 mrad
- Clearance
10 m
- Operating voltage
24 V DC
- Operating current
5 mA
- Material
Brass

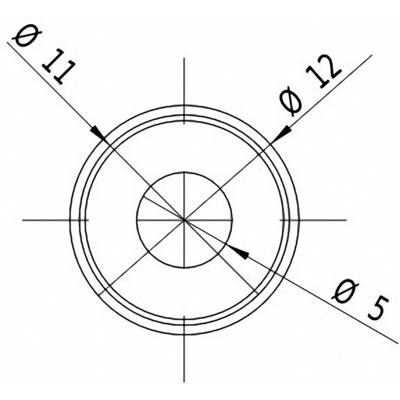

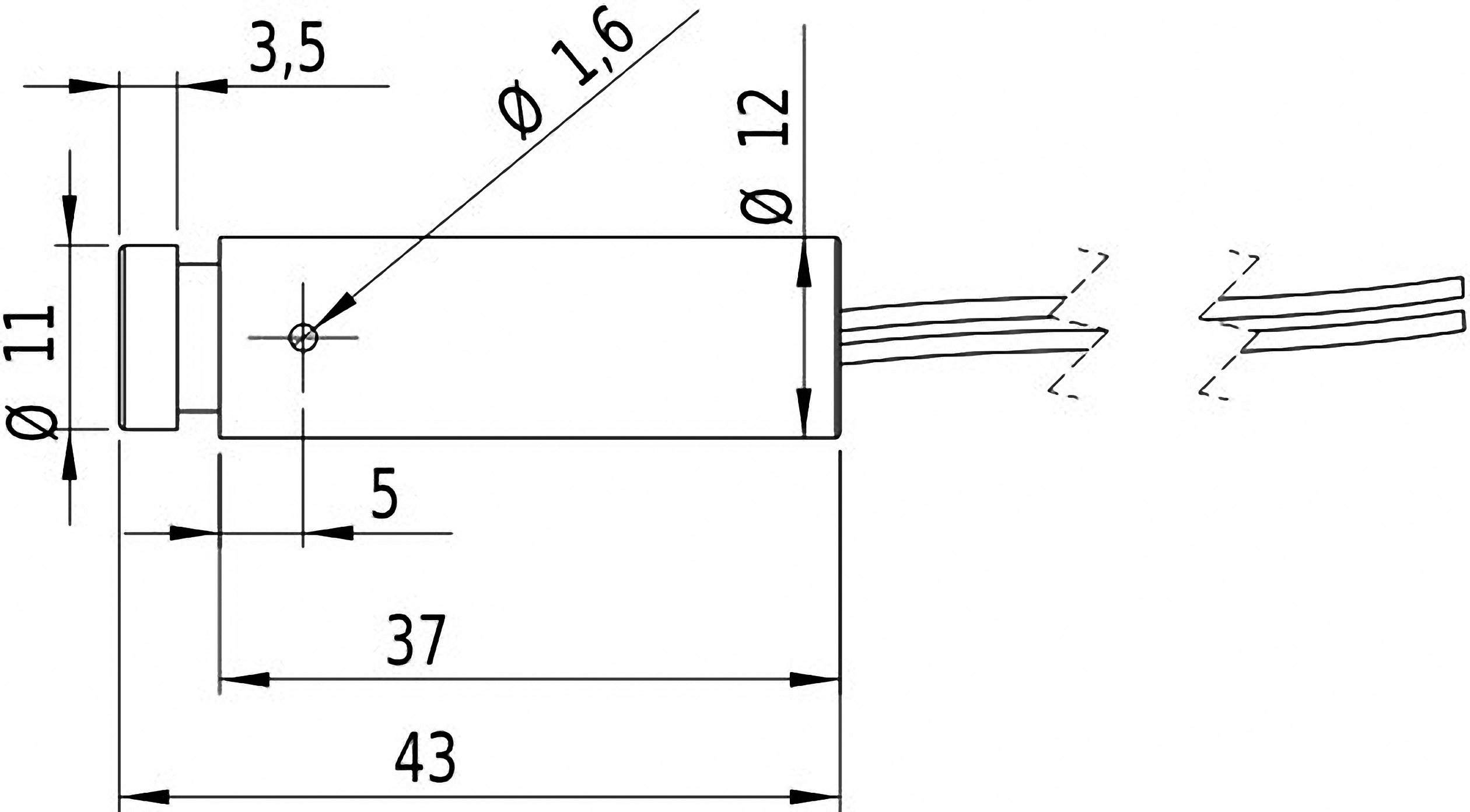

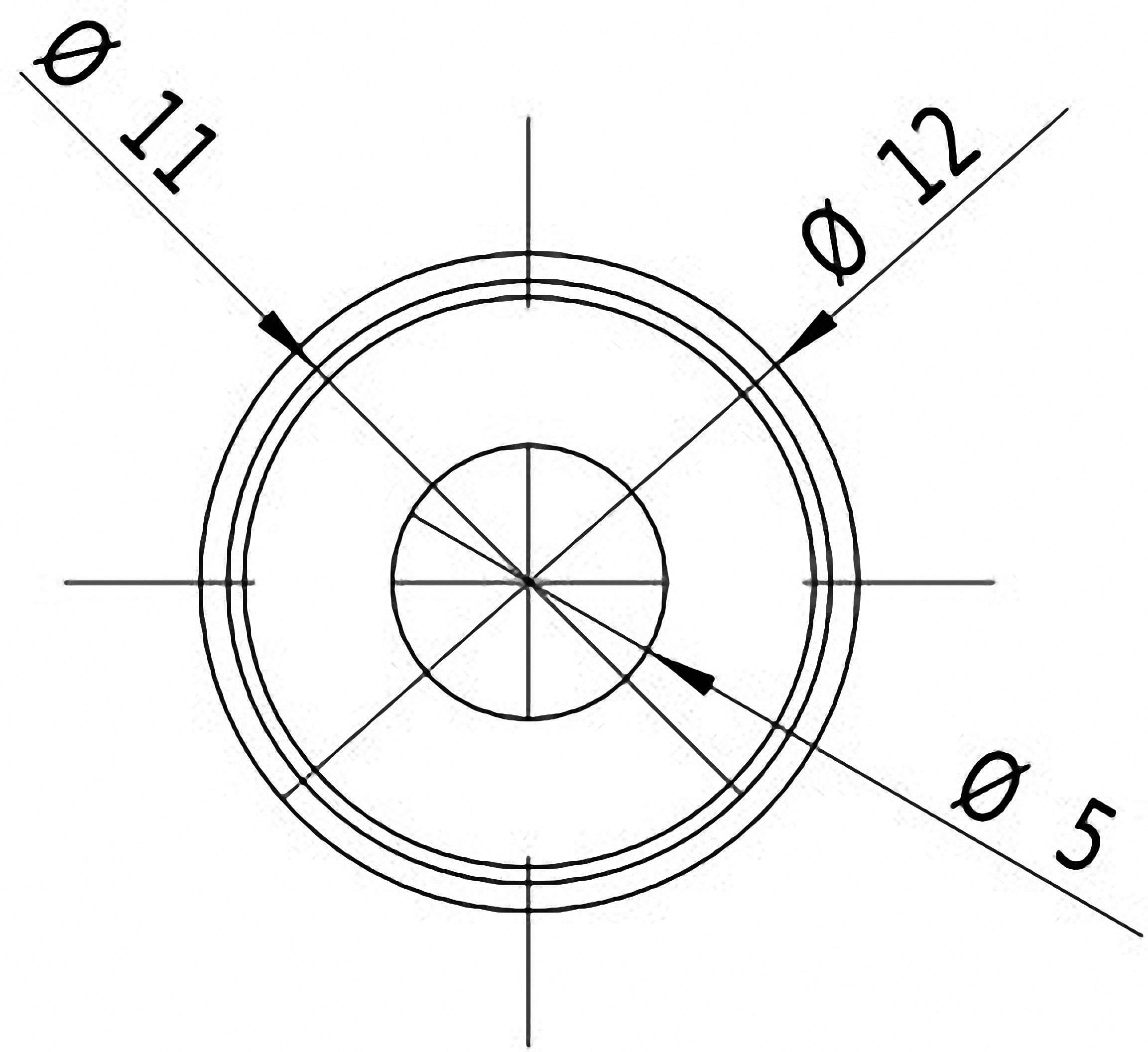

- Dim
(Ø x L) 12 mm x 45 mm
- Weight
17 g
- RoHS-compliant
Yes
- Max. temperature
50 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 1283345 Picotronic Laser module Dot Red 0.4 mW DD 635-0.4-24 (12 x 45)
User & Safety Instructions
User & Safety Instructions 1283345 Picotronic Laser module Dot Red 0.4 mW DD 635-0.4-24 (12 x 45)
Information
Information 1283345 Picotronic Laser module Dot Red 0.4 mW DD 635-0.4-24 (12 x 45)
Conformity certificate
Conformity certificate 1283345 Picotronic Laser module Dot Red 0.4 mW DD 635-0.4-24 (12 x 45)
Description
Hints
Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
