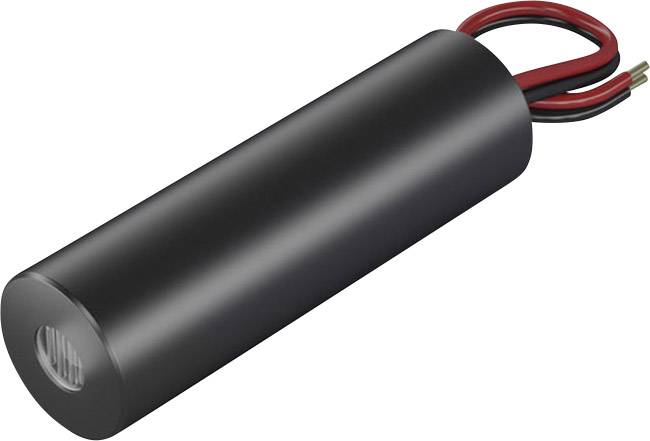

Black cylindrical LED lighting insert with red and black wires at one end. Ridged at the front for light output.

Black cylindrical LED lighting insert with red and black wires at one end. Ridged at the front for light output.

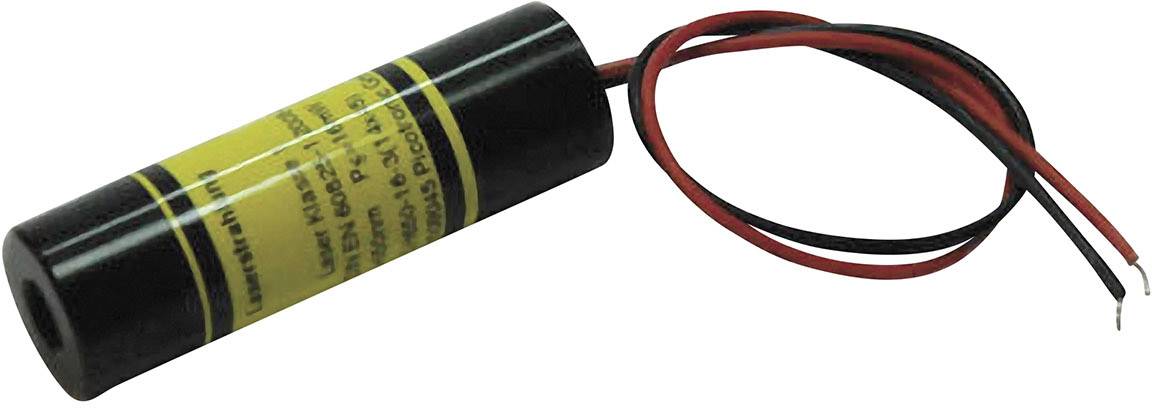

Black cylinder with a yellow label, to which red and black cables are attached. Possibly a laser module.

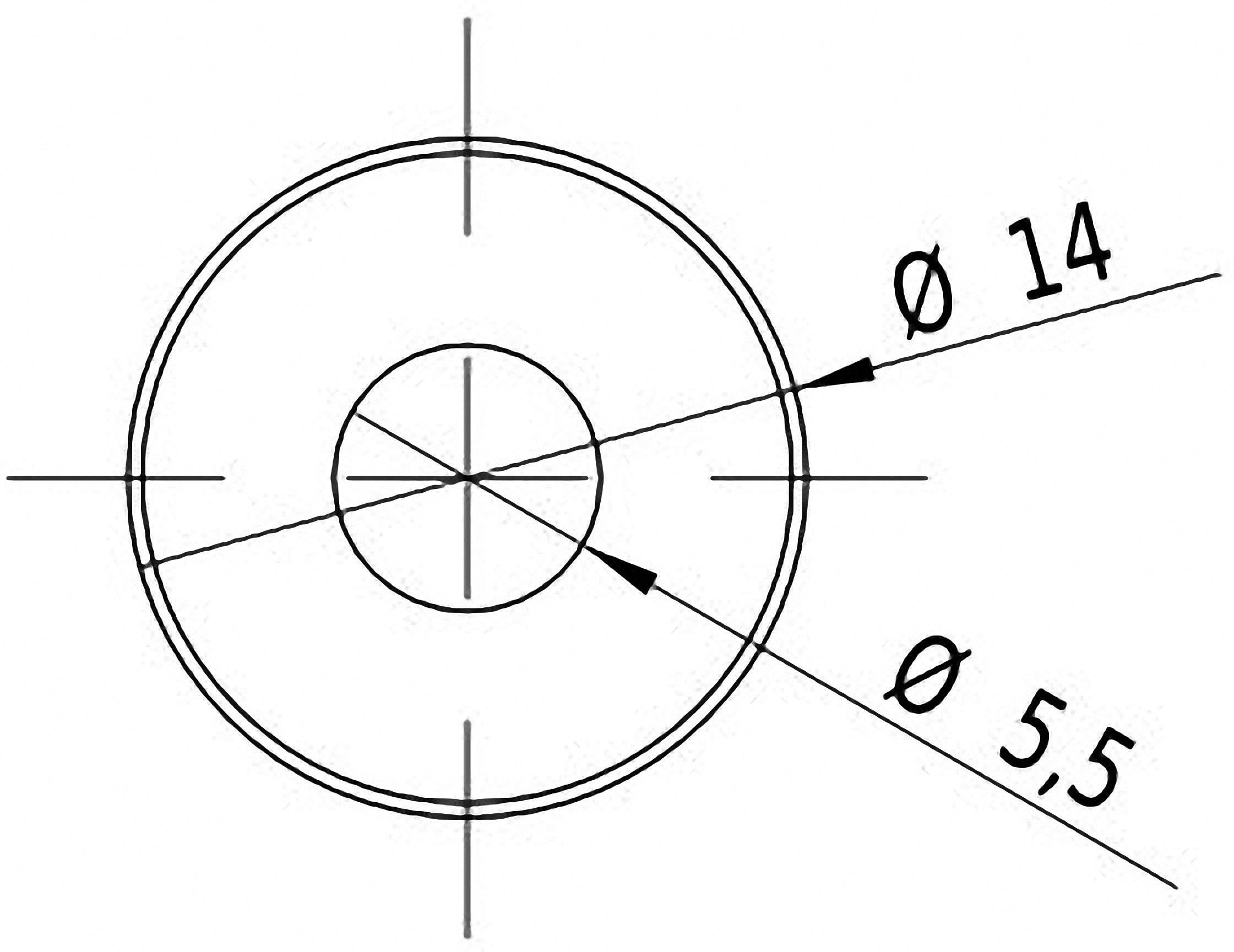

Technical drawing of a circle with internal and external diameters. Internal: Ø 5.5. External: Ø 14. Lines mark the centres.

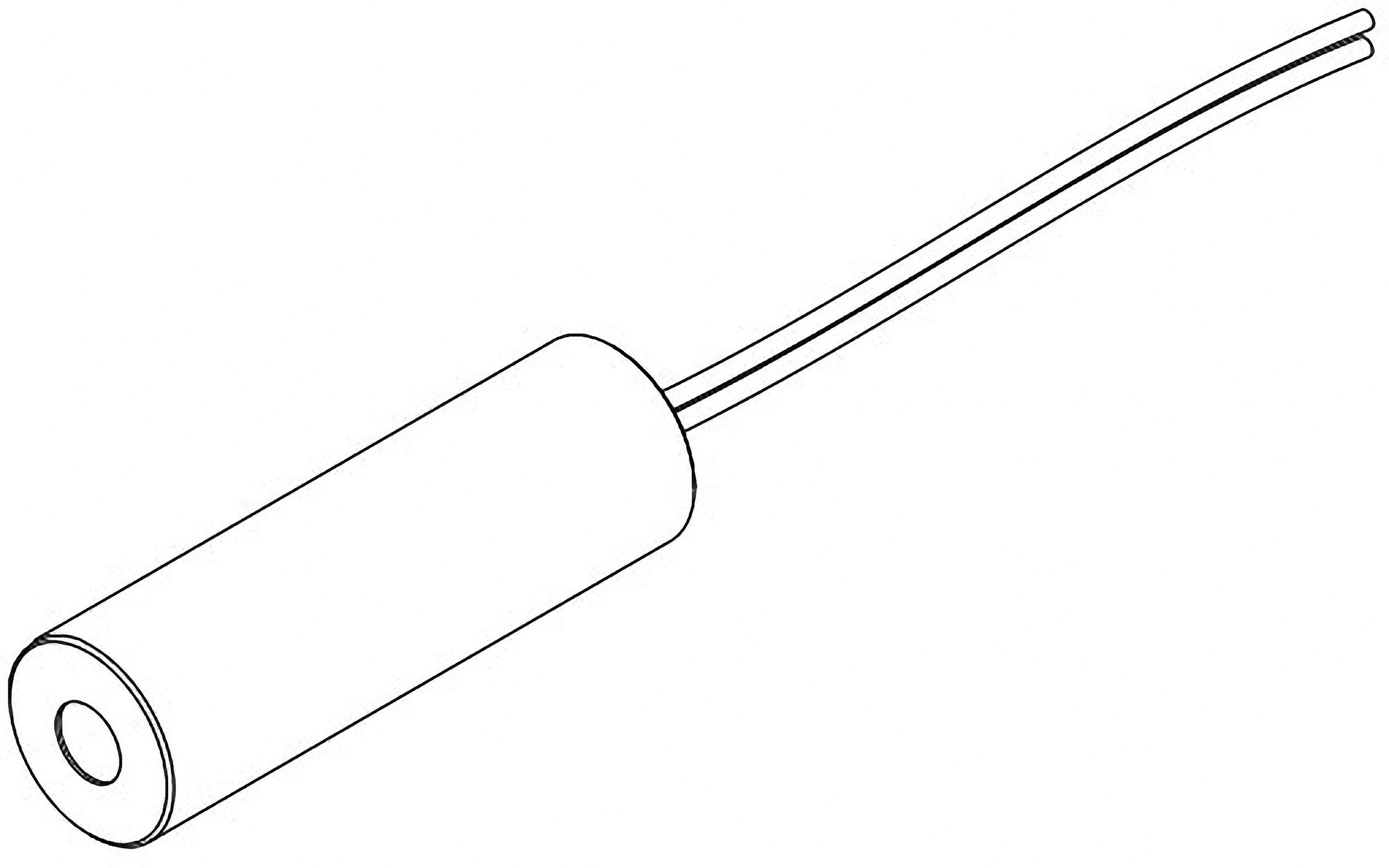

A cylindrical sensor with two connecting cables is illustrated, designed for detecting physical quantities or positions.

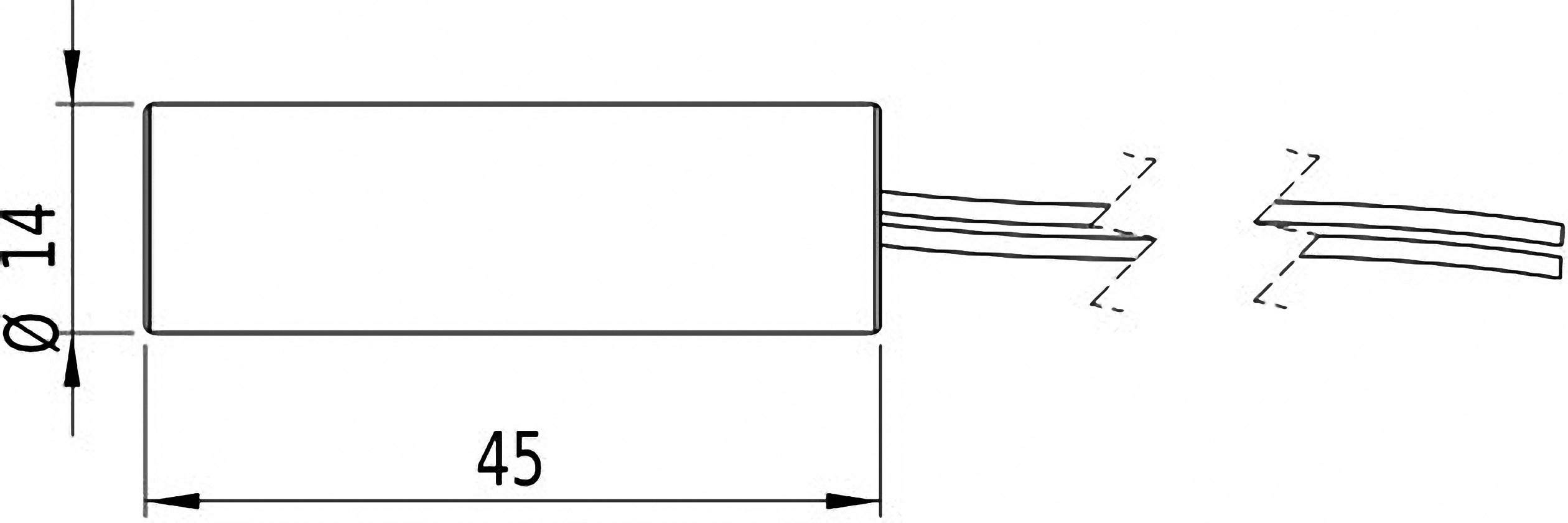

Rectangular block with a length of 45 mm and a diameter of 14 mm, connected with two cables. Cut view of the cables.

1/5

Picotronic

Product type

Laser module

Emission characteristics

Dot

Wavelength

635 nm

Power

1 mW

(Ø)

14 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Wed 23 Dec

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 104.99 / piece)

€ 104.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Insulated point laser, red

Red
Laser category: 2
Emission characteristics: Dot

Technical specifications

Product type: Laser module

Type: DB 635-1-3-FA (14x45) ADJ

Emission characteristics: Dot

Focus properties: Selectable focus

Factory colour: Red

Wavelength: 635 nm

: 1 mW

(Ø): 14 mm

Length: 45 mm

Laser category: 2

Beam divergence: 0.3 mrad

Clearance: 50 m

Operating voltage: 3 V DC

Operating current: 32 mA

Material: Aluminium

Dim: (Ø x L) 14 mm x 45 mm

Weight: 18 g

RoHS-compliant: Yes

Max. temperature: 50 °C

Min. temperature: -20 °C

Documents & Downloads

Datasheet

Datasheet 1283400 Picotronic Laser module Dot Red 1 mW DB 635-1-3-FA (14x45) ADJ

User & Safety Instructions

User & Safety Instructions 1283400 Picotronic Laser module Dot Red 1 mW DB 635-1-3-FA (14x45) ADJ

Information

Information 1283400 Picotronic Laser module Dot Red 1 mW DB 635-1-3-FA (14x45) ADJ

Conformity certificate

Conformity certificate 1283400 Picotronic Laser module Dot Red 1 mW DB 635-1-3-FA (14x45) ADJ

Hints

Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).

Description

Hints

Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
