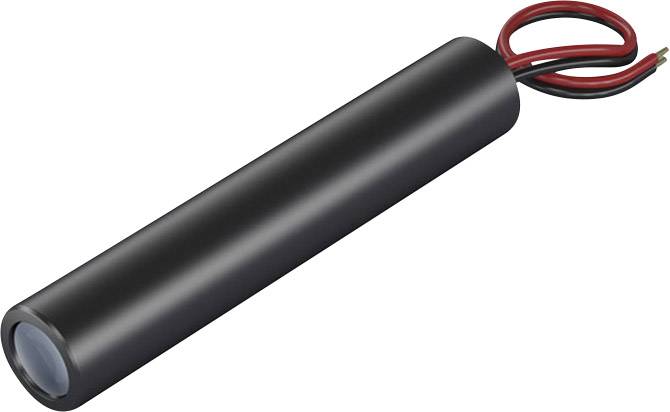

Picotronic Laser module Dot Red 1 mW Since 635-1-3 (11x60)
Product type
Laser module
Emission characteristics
Dot
Wavelength
635 nm
Power
1 mW
(Ø)
11 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 99.99 / piece)
€ 99.99
incl. VAT
14-day return policy included
Highlights & Details
Insulated point laser, red
- Red
- Laser category: 2
- Emission characteristics: Dot
Technical specifications
- Product type
Laser module
- Type
Since 635-1-3 (11x60)
- Emission characteristics
Dot
- Focus properties
40 m fixed-focus
- Factory colour
Red
- Wavelength
635 nm
1 mW
- (Ø)
11 mm
- Length
60 mm
- Laser category
2
- Beam divergence
0.2 mrad
- Clearance
100 m
- Operating voltage
3 V DC
- Operating current
30 mA
- Material
Brass
- Dim
(Ø x L) 11 mm x 60 mm
- Weight
22 g
- RoHS-compliant
Yes
- Max. temperature
50 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 1283429 Picotronic Laser module Dot Red 1 mW Since 635-1-3 (11x60)
User & Safety Instructions
User & Safety Instructions 1283429 Picotronic Laser module Dot Red 1 mW Since 635-1-3 (11x60)
Information
Information 1283429 Picotronic Laser module Dot Red 1 mW Since 635-1-3 (11x60)
Conformity certificate
Conformity certificate 1283429 Picotronic Laser module Dot Red 1 mW Since 635-1-3 (11x60)
Description
Hints
Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
