Image similar

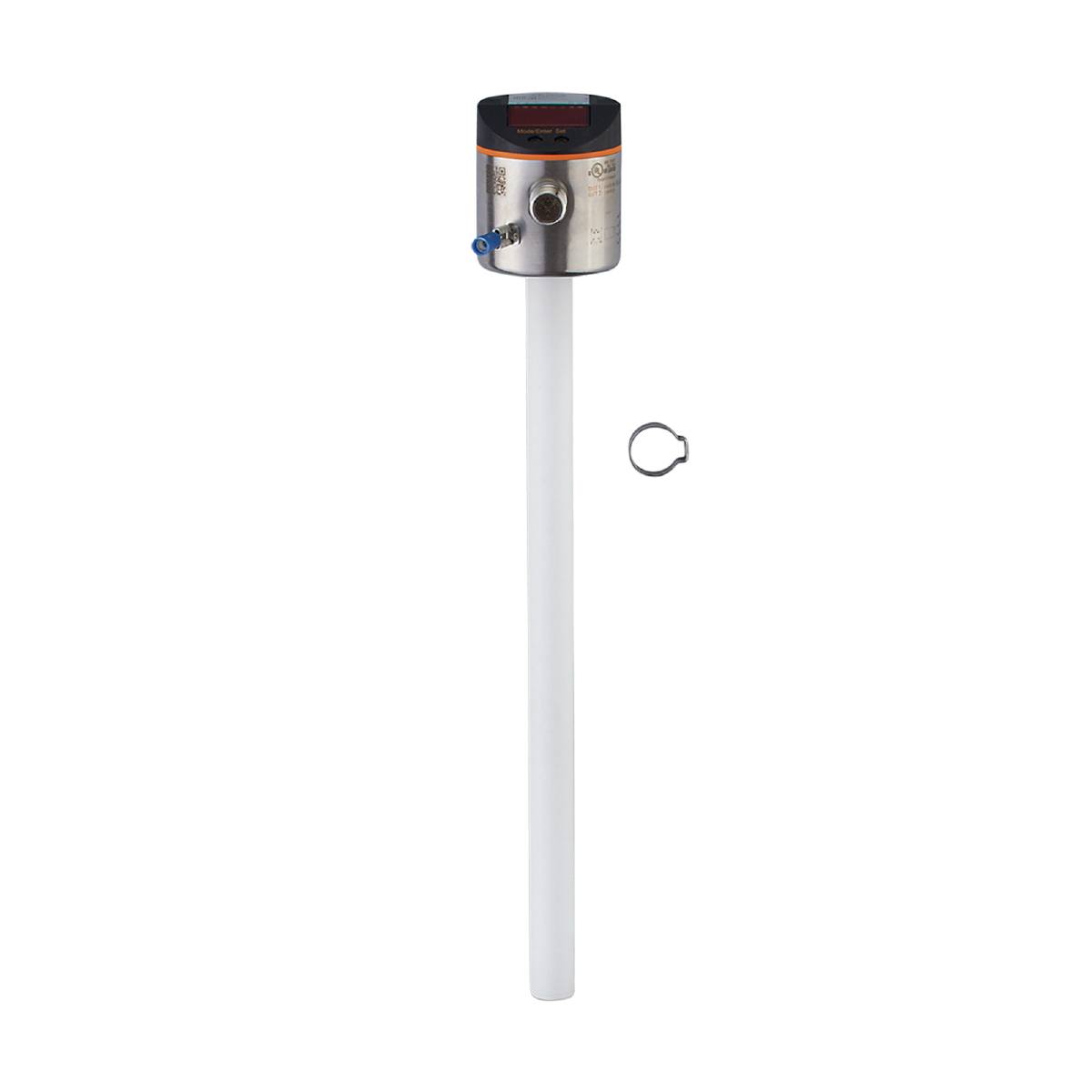

ifm Electronic Electronic fluid level gauge LK1022 LK1022 Operating voltage (range): 18 - 30 V DC 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electronic fluid level gauge
Min. operating voltage
18 V DC
Max. operating voltage
30 V DC
Type
LK1022
Operating voltage
18 - 30 V DC
Datasheet (PDF)
Technical specifications
- Product type
Electronic fluid level gauge
- Type
LK1022
- Min. operating voltage
18 V DC
- Max. operating voltage
30 V DC
- Operating voltage
18 - 30 V DC
- Connector
M12
- Outputs
PNP
NPN
- Material
PP
- Enclosure material
Stainless steel V2A
- Media temperature (min.)
0 °C
- Max. media temperature
70 °C
- Max. operating pressure
0.5 bar
IP67
- Weight
0.3210 kg
- Min. ambient temperature
0 °C
- Max. ambient temperature
60 °C
- Length
264 mm
- (Ø)
16 mm
- Dim
(Ø x L) 16 mm x 264 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3321228 ifm Electronic Electronic fluid level gauge LK1022 LK1022 Operating voltage (range): 18 - 30 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3321228 ifm Electronic Electronic fluid level gauge LK1022 LK1022 Operating voltage (range): 18 - 30 V DC 1 pc(s)
