Name: ifm Electronic Electronic fluid level gauge LK1024 LK1024 Operating voltage (range): 18 - 30 V DC Reading range: 0.05 -
Brand: ifm Electronic
SKU: 3321405

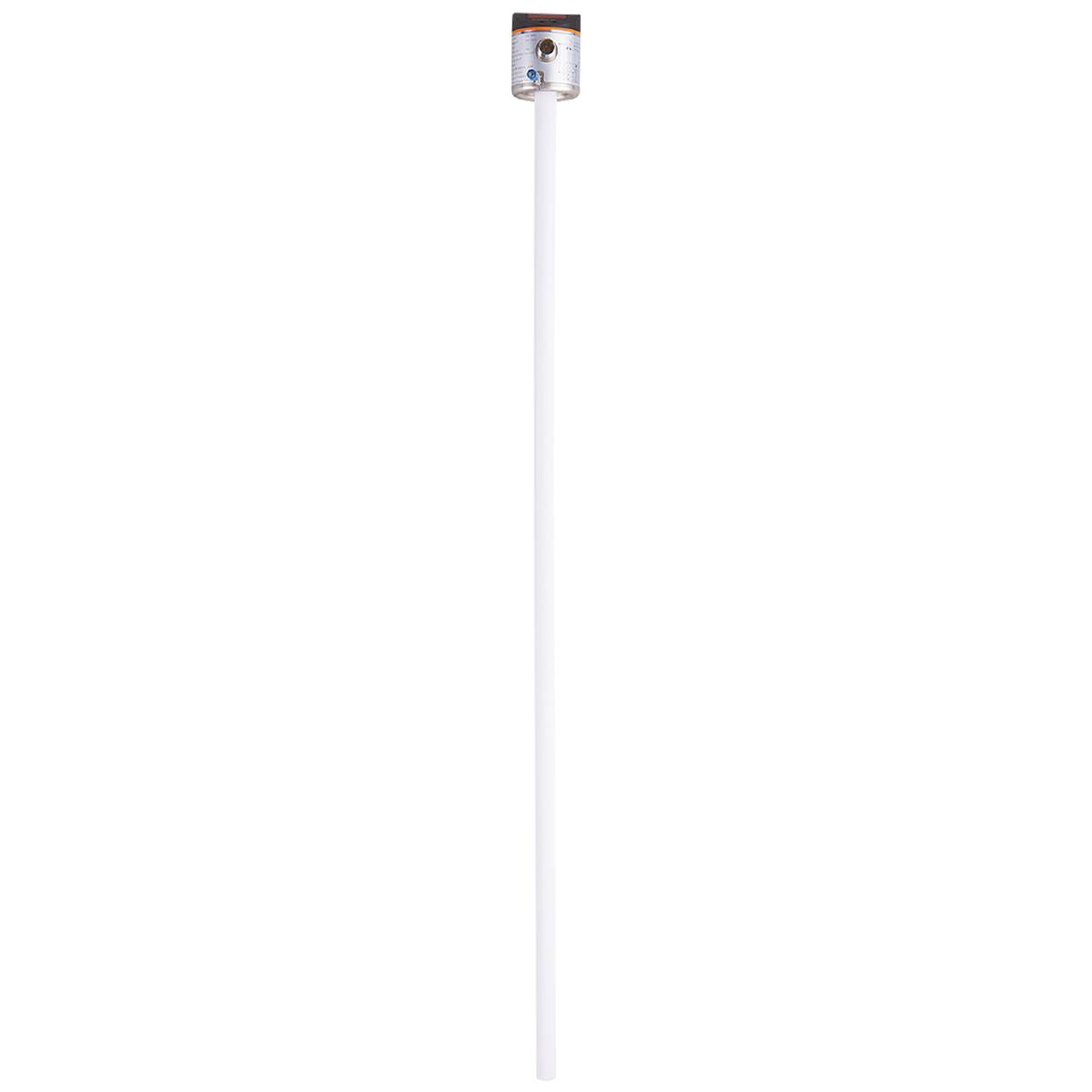

A single, long white rod with a fastening mechanism at the top, possibly part of a technical device or instrument.

Image similar

Product type

Electronic fluid level gauge

Min. operating voltage

18 V DC

Max. operating voltage

30 V DC

Reading range (max.)

0.636 m

Type

LK1024

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Ifm LK1024 Electronic level sensor

For reliable level monitoring of tanks and containers
Suitable for water, oils and coolants
Easy-to-read 4-digit LED display
Convenient operation via keys or parameterization via IO-Link

Technical specifications

Dimensions [mm]: Ø 16
Active area A [mm]: 585
Number of digital outputs: 2
Number of inputs and outputs: Number of digital outputs: 2
Display: Display unit / status: 2 x LED, green (cm, inch); switching status: 2 x LED, yellow; measured values: Alphanumeric display, 4-digit; parameter settings: Alphanumeric display, 4 digit
IO-Link Revision: 1.1
Level measuring principle: Capacitive
SDCI standard IEC 61131-9
Rod length L [mm]: 728
Transmission type IO-Link: COM2 (38.4 kBaud)
Ambient temperature-1 [°C]: 0...60
Factory setting: Water-based coolant; water; water-like media
Repeatability ± 2
Resolution [mm]: 5
Short-circuit protection version: Thermal, synchronized
Output function: NO/NC contact; (can be parameterized)
Output signal: Switching signal; IO-Link

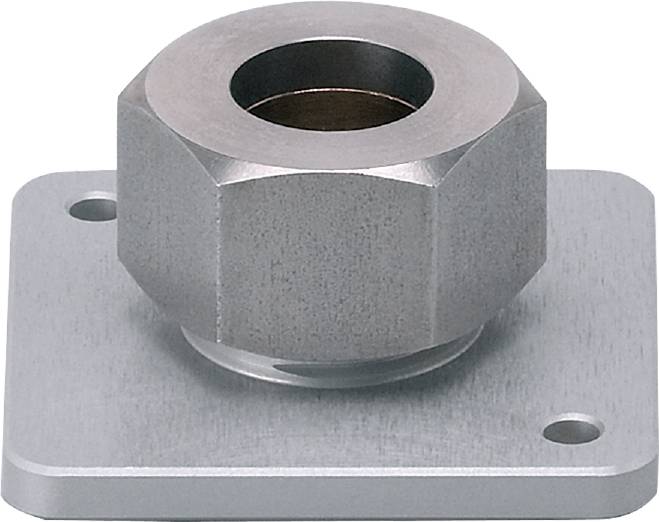

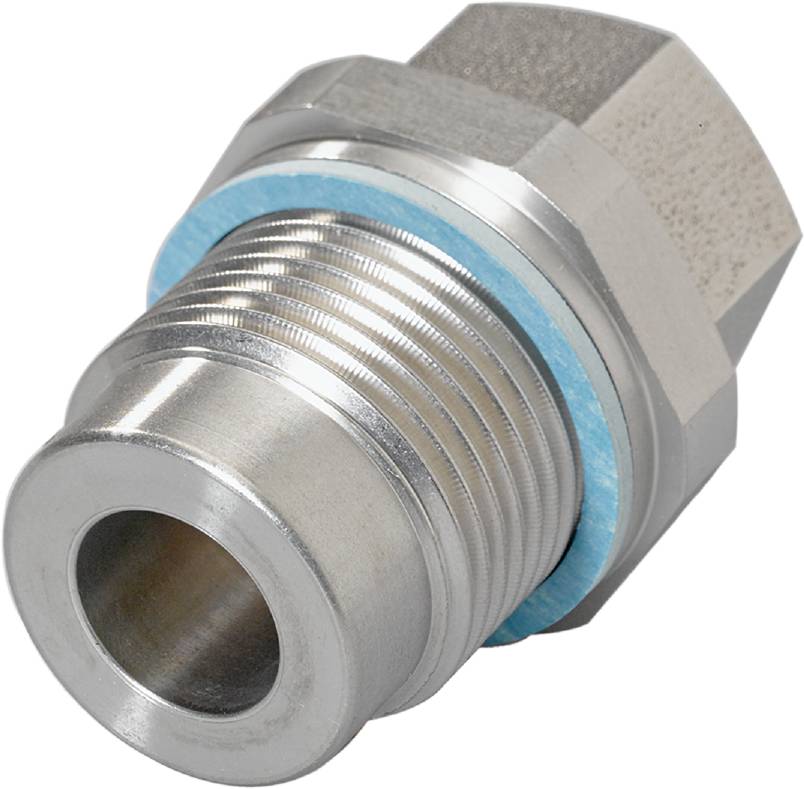

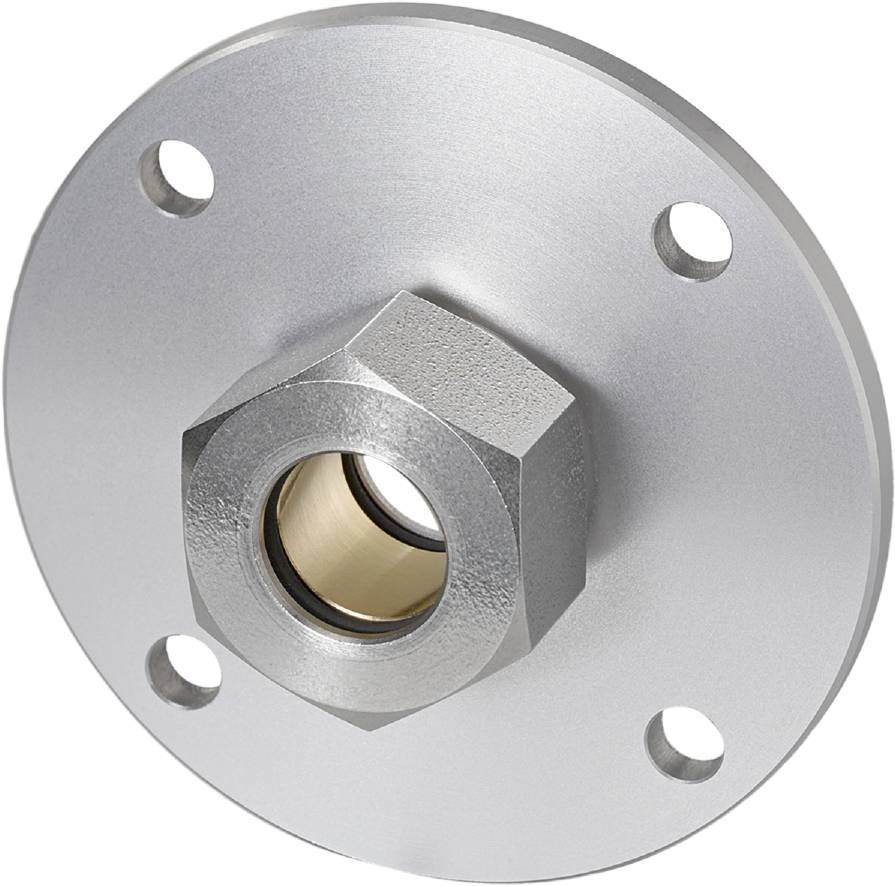

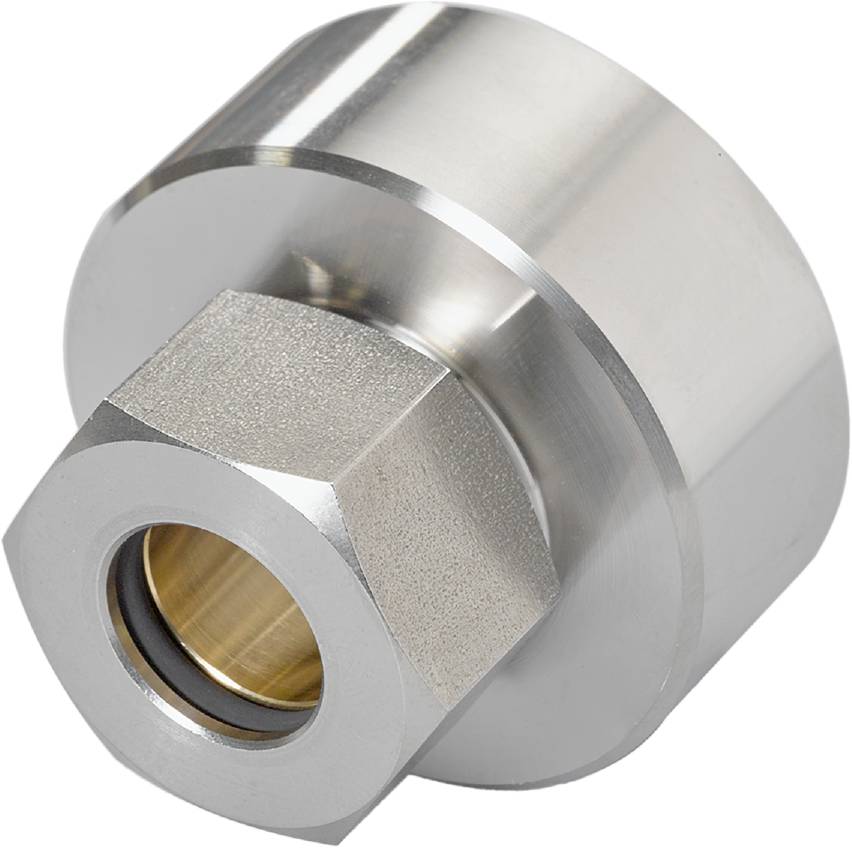

Tank pressure [bar]: 0.5; (when fitted with mounting accessories: E43001 - E43007, E43019)
Required master port class: A
Standby delay time [s]: < 3
Special feature: Gold-plated contacts
Operating voltage [V]: 18... 30 DC
Continuous current carrying capacity of the switching output DC [mA]: 200
Medium dielectric constant: > 2
Electrical version: PNP/NPN
Total number of outputs: 2
Weight [g]: 552,400
Hysteresis OP - Setting range [mm]: 4
In steps of - setting range [mm]: 10
Inactive Range I1 / I2 [mm]: 104 / 39
Communication interface: IO-Link
Short-circuit protection: Yes
Storage temperature [°C]: -25...80
Max. Speed of level change [mm/s]: 300
max. Voltage drop switch output DC [V]: 2.5
Media: Water-based coolant; oils; oil-based media; water; water-like media

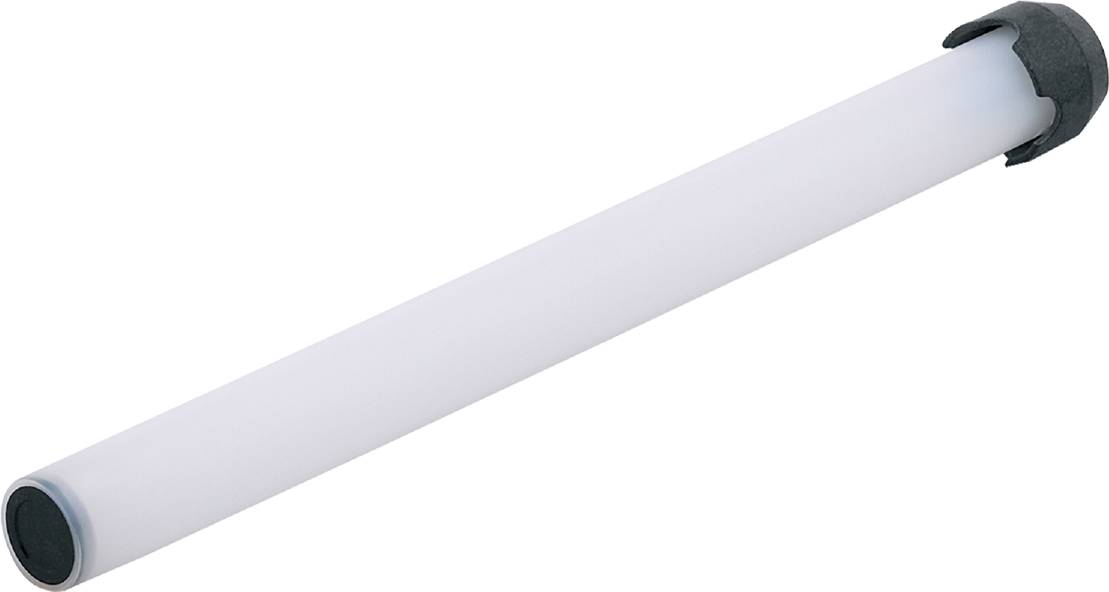

Medium temperature - cooling lubricant [°C]: 0...35; (with air-conditioning pipe E43102: 35...55 )
Medium temperature - oil [°C]: 0...70
Medium temperature - water [°C]: 0...35; (with air-conditioning pipe E43102: 35...55 )
Medium temperature short time - oil [°C]: 0...90; (< 1 h)
Measurement error: ± 5
Min Process cycle time [ms]: 3.2
MTTF: 265
Not suitable for: Highly conductive media; adhesive media; granules; bulk materials; acids; Caustics; Food and electroplating area
Parameterization options: Hysteresis/window; NO/NC; switching logic; SP/RP position; adjustment OP; Media selection; offset setting; switch/return delay
Profile: Smart sensor: Process data variable; device identification, device diagnostics
Analogue process data: 2
Binary process data: 2
Reference point OP - Adjustment range [mm]: 200 - 240 - 280 - 310 - 350 - 390 - 420 - 460 - 500 - 530 - 570 - 610- OFF
Return point RP - Setting range [mm]: 50...580
SP switch point - setting range [mm]: 60...590
IP 67 protection
Protection class III
SIO mode: Yes
Plug connection: Pin layout: 0001 - plug connection: 1 x M12; code: A; contacts: Gold-plated
Current consumption: < 50
Overload-proof: Yes
Reverse polarity protection: Yes
Materials in contact with the Medium: PP

Product type: Electronic fluid level gauge

Type: LK1024

Min. operating voltage: 18 V DC

Max. operating voltage: 30 V DC

Operating voltage: 18 - 30 V DC

Features: LED indicator

Connector: M12

Outputs: PNP
NPN

Material: PP

Enclosure material: Stainless steel V2A

Media temperature (min.): 0 °C

Max. media temperature: 70 °C

Max. operating pressure: 0.5 bar

Reading range (min.): 0.05 m

Reading range (max.): 0.636 m

Reading range: 0.05 - 0.636 m

: IP67

Weight: 0.5070 kg

Min. ambient temperature: 0 °C

Max. ambient temperature: 60 °C

(Ø): 16 mm

Dim: (Ø) 16 mm

Content: 1 pc(s)

RoHS-compliant: Yes

UKCA: yes
