Name: ifm Electronic TD2811 TD2811 PT1000 Temperature transmitter -50 up to 150 °C 0.1 %/°C Analogue
Brand: ifm Electronic
SKU: 3320726

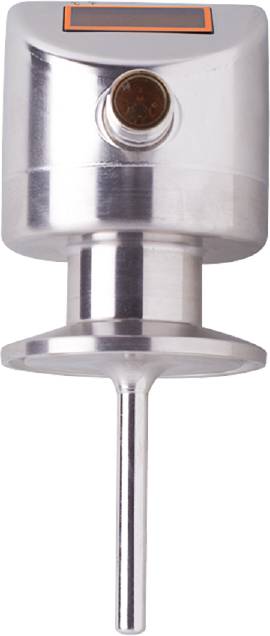

A stainless steel component with a cylindrical shape and smooth surface, mounted on a slender rod.

Image similar

Product type

Temperature transmitter

Model

PT1000

Temperature reading range (min.)

-50 °C

Temperature reading range (max.)

150 °C

Connector

M12

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Ifm TD2811 temperature transmitter

Hygienic design for the requirements of the food and beverage industry
Especially good response dynamics and very short delay time
Easy-to-read 4-digit LED display
High protection class and high pressure strength
Precise analog output and convenient communication via IO-Link

Technical specifications

Analog output current [mA]: 4...20
Response dynamics T05/T09 [s]: 1 / 3
Number of analog outputs: 1
Number of inputs and outputs: Number of analog outputs: 1
Display: 7-segment LED display, 4-digit; : display unit / status, °C / °F.
IO-Link Revision: 1.1
1 x Pt 1000; (to DIN EN 60751, Class A)
Temperature coefficient percentage range: 0.1; (If the reference condition differs from 25 °C)
Transmission type IO-Link: COM2 (38.4 kBaud)
Ambient temperature-1 [°C]: -25...80
Factory setting measuring range: -10...150 °C
Analog output resolution [K]: 0.04
Display resolution resolution [K]: 0.1
Output signal: Analog signal; IO-Link; (configurable)
Standby delay time [s]: 2
Operating voltage [V]: 18...32 DC; ("supply class 2" according to cULus)
Compressive strength [bar]: 100
Mounting length EL [mm]: 50
Analogue output accuracy [K]: ± 0.3 + (± 0.1 % MS)
Total number of outputs: 1
Weight [g]: 334,000
Communication interface: IO-Link
Short-circuit protection: Yes
Storage temperature [°C]: -40...100
MAWP for applications according to CRN [bar]: 60
Max. Burden [Ω]: 300
Media: Liquid and gaseous media
Measuring range [°C]: -50...150
Measuring range [°F]: -58...302
MTTF: 405
Surface texture Ra/Rz of surfaces in contact with the media: Ra: < 0.8
Process connection: Clamp DN25...DN40 (1...1.5") DIN 32676 (ISO 2852)
PROTECTION CLASS IP 67; IP 68; IP 69K
Protection class III
Rod diameter [mm]: 6
Plug connection: Pin layout: 0001 - plug connection: 1 x M12; coding: A.
Current consumption: < 50
Overload-proof: Yes
Vacuum strength [mbar]: -1000
Reverse polarity protection: Yes
Materials in contact with the Medium: 1.4404 (stainless steel / 316L) electropolished

Product type: Temperature transmitter

Type: TD2811

Model: PT1000

Outputs: Analogue

Output signal (min.): 4 mA

Output signal (max.): 20 mA

Temperature reading range (min.): -50 °C

Temperature reading range (max.): 150 °C

Temperature reading range: -50 up to 150 °C

Connector: M12

Enclosure material: Stainless steel V4A

Min. operating voltage: 18 V DC

Max. operating voltage: 32 V DC

Operating voltage: 18 - 32 V DC

Accuracy class: A

Contact type: Analogue

Temperature coefficient: 0.1 %/°C

Length: 50 mm

(Ø): 6 mm

Dim: (Ø x L) 6 mm x 50 mm

RoHS-compliant: Yes

Content: 1 pc(s)

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

Temperature reading range (min.)

Temperature reading range (max.)

Model

Connector

ifm Electronic TA1101 TA1101 PT1000 Temperature transmitter -50 up to 200 °C 0.1 %/°C Analogue

Item no:3320638

Unavailable

Conrad Electronic

-50 °C

200 °C

PT1000

M12

Piece(s)

Minimum order quantity: 1

Multiple: 1

ifm Electronic TA1102 TA1102 PT1000 Temperature transmitter -50 up to 200 °C 0.1 %/°C Analogue

Item no:3320639

Unavailable

Conrad Electronic

-50 °C

200 °C

PT1000

M12

Piece(s)

Minimum order quantity: 1

Multiple: 1

ifm Electronic TA1107 TA1107 PT1000 Temperature transmitter -50 up to 200 °C 0.1 %/°C Analogue

Item no:3320640

Unavailable

Conrad Electronic

-50 °C

200 °C

PT1000

M12

Piece(s)

Minimum order quantity: 1

Multiple: 1

ifm Electronic TA1321 TA1321 PT1000 Temperature transmitter -50 up to 200 °C Analogue

Item no:3320641

Unavailable

Conrad Electronic

-50 °C

200 °C

PT1000

M12

Piece(s)

Minimum order quantity: 1

Multiple: 1

ifm Electronic TA1322 TA1322 PT1000 Temperature transmitter -50 up to 200 °C 0.1 %/°C Analogue

Item no:3320642

Unavailable

Conrad Electronic

-50 °C

200 °C

PT1000

M12

Piece(s)

Minimum order quantity: 1

Multiple: 1

ifm Electronic TA1327 TA1327 PT1000 Temperature transmitter -50 up to 200 °C Analogue

Item no:3320643

Unavailable

Conrad Electronic

-50 °C

200 °C

PT1000

M12

Piece(s)

Minimum order quantity: 1

Multiple: 1

ifm Electronic TA1602 TA1602 PT1000 Temperature transmitter -50 up to 200 °C 0.1 %/°C Analogue

Item no:3320552

Unavailable

Conrad Electronic

-50 °C

200 °C

PT1000

M12

Piece(s)

Minimum order quantity: 1

Multiple: 1

ifm Electronic TA2002 TA2002 PT1000 Temperature transmitter -50 up to 200 °C Analogue

Item no:3320350

Unavailable

Conrad Electronic

-50 °C

200 °C

PT1000

M12

Piece(s)

Minimum order quantity: 1

Multiple: 1

ifm Electronic TA2012 TA2012 Temperature transmitter -50 up to 200 °C 0.1 %/°C Analogue

Item no:3320380

Unavailable

Conrad Electronic

-50 °C

200 °C

M12

Piece(s)

Minimum order quantity: 1

Multiple: 1

ifm Electronic TA2105 TA2105 PT1000 Temperature transmitter -50 up to 150 °C Analogue

Item no:3320186

Unavailable

Conrad Electronic

-50 °C

150 °C

PT1000

M12

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 3320726 ifm Electronic TD2811 TD2811 PT1000 Temperature transmitter -50 up to 150 °C 0.1 %/°C Analogue

User & Safety Instructions

User & Safety Instructions 3320726 ifm Electronic TD2811 TD2811 PT1000 Temperature transmitter -50 up to 150 °C 0.1 %/°C Analogue

Description

Ifm TD2811 temperature transmitter

This text is machine translated.

Description

Ifm TD2811 temperature transmitter

This text is machine translated.

What kind of Industrial Temperature Sensors are you looking for?

PT100 temperature sensor

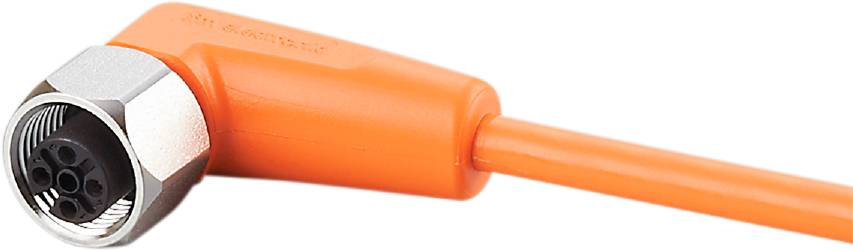

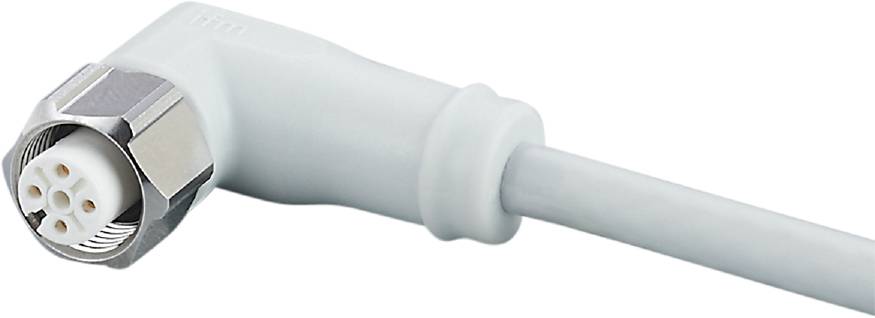

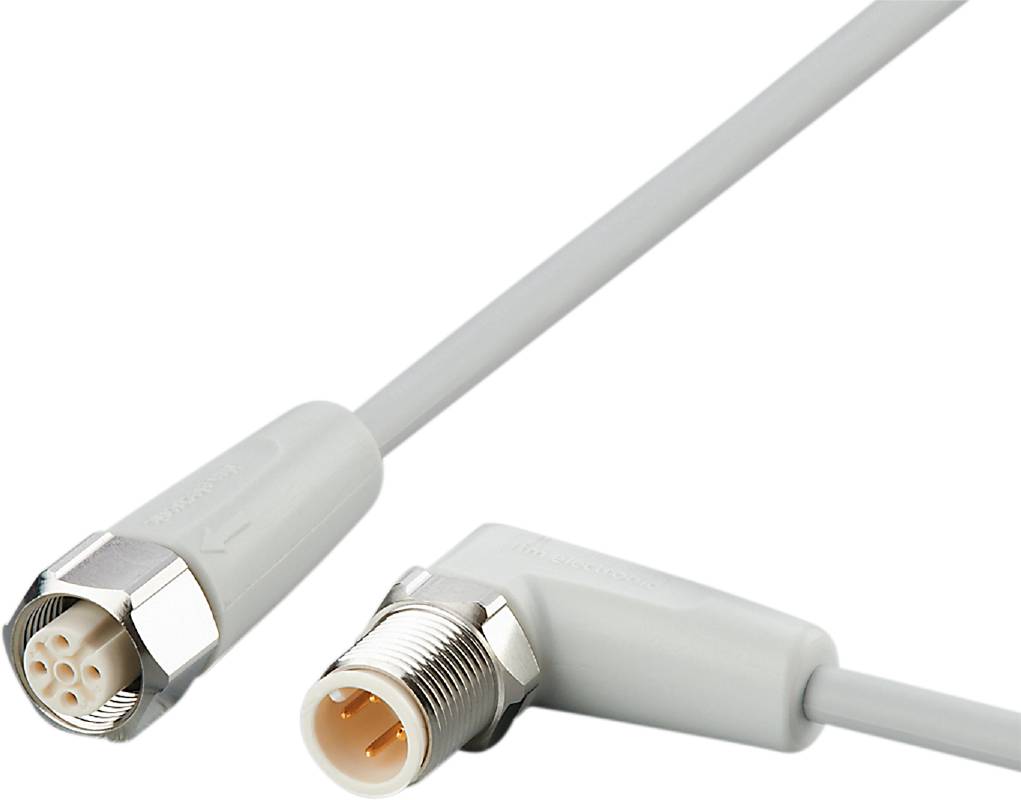

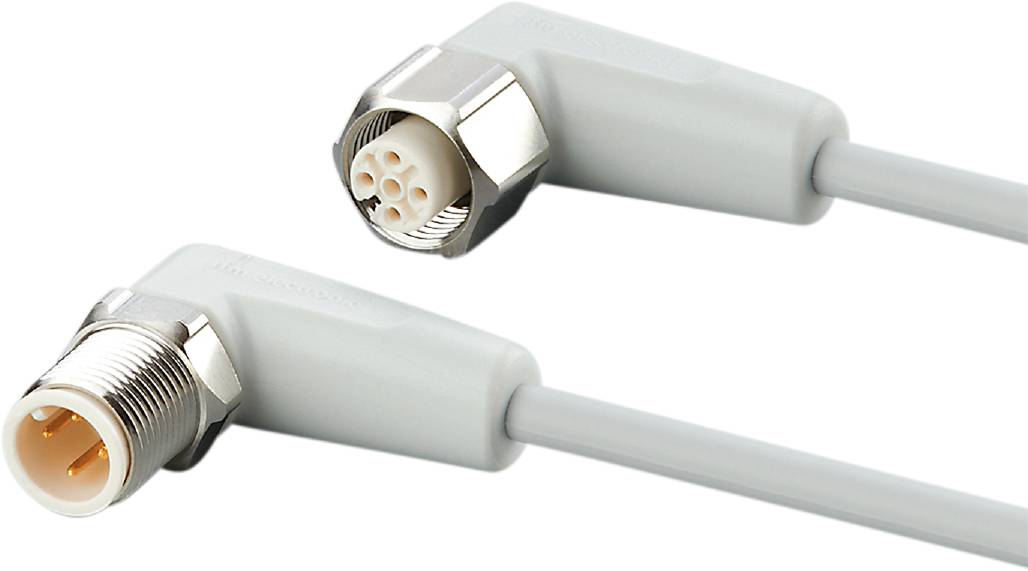

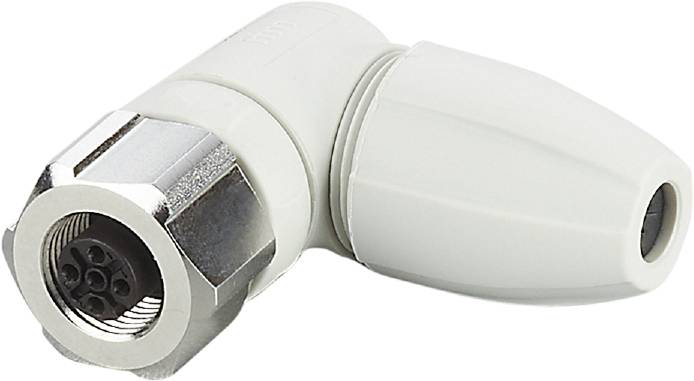

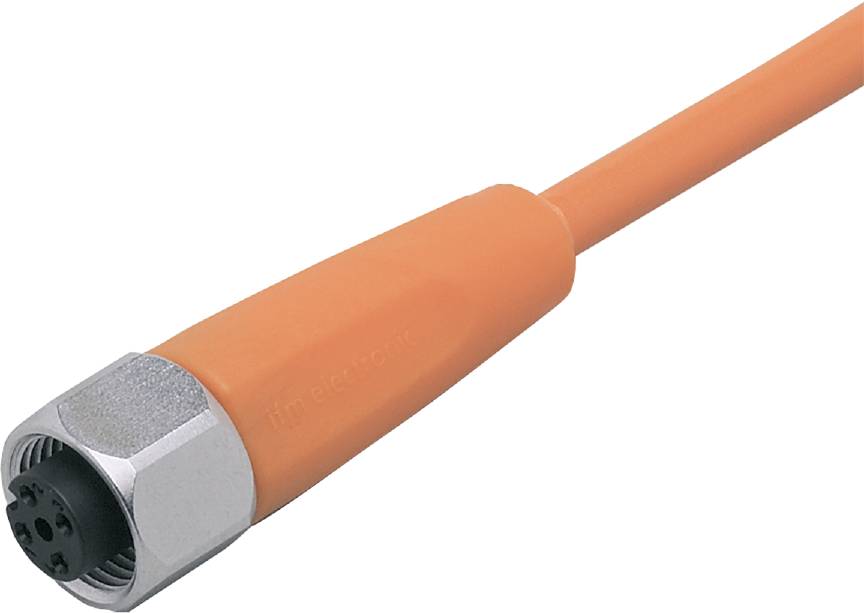

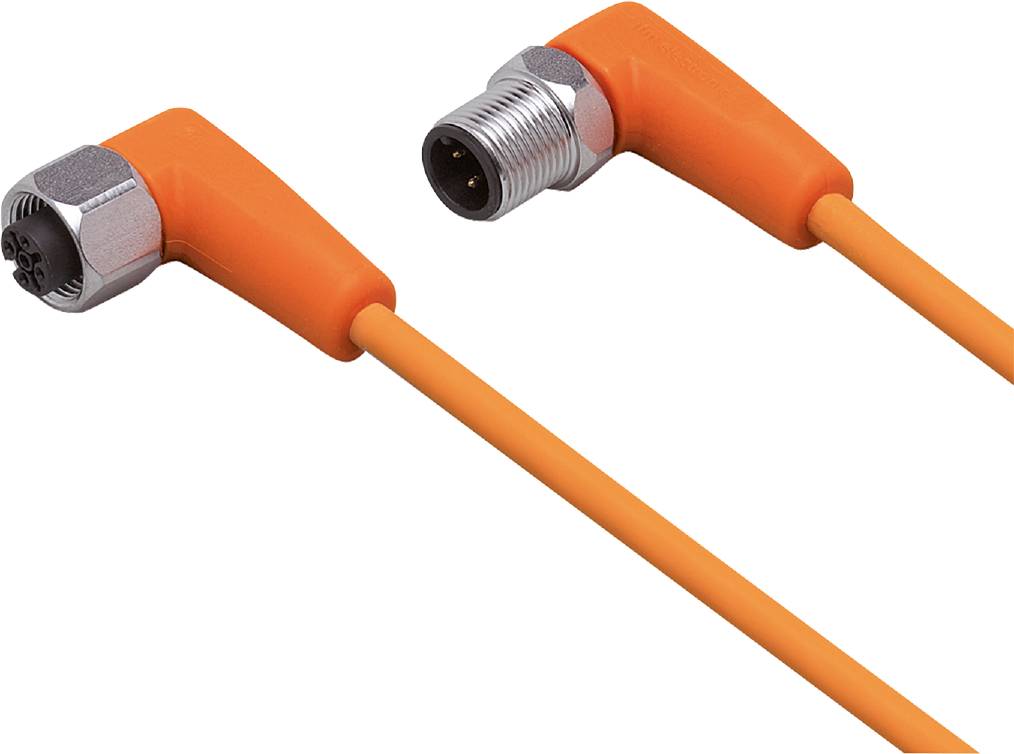

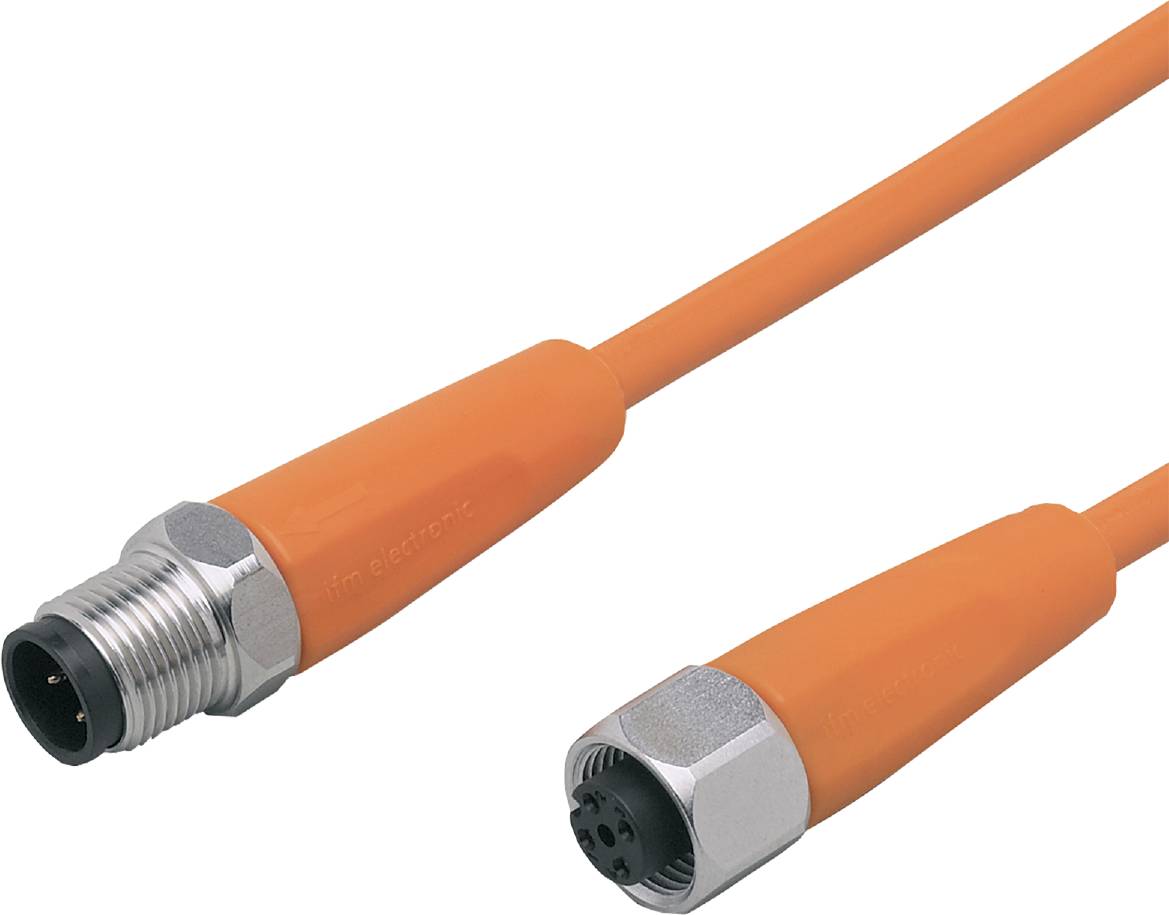

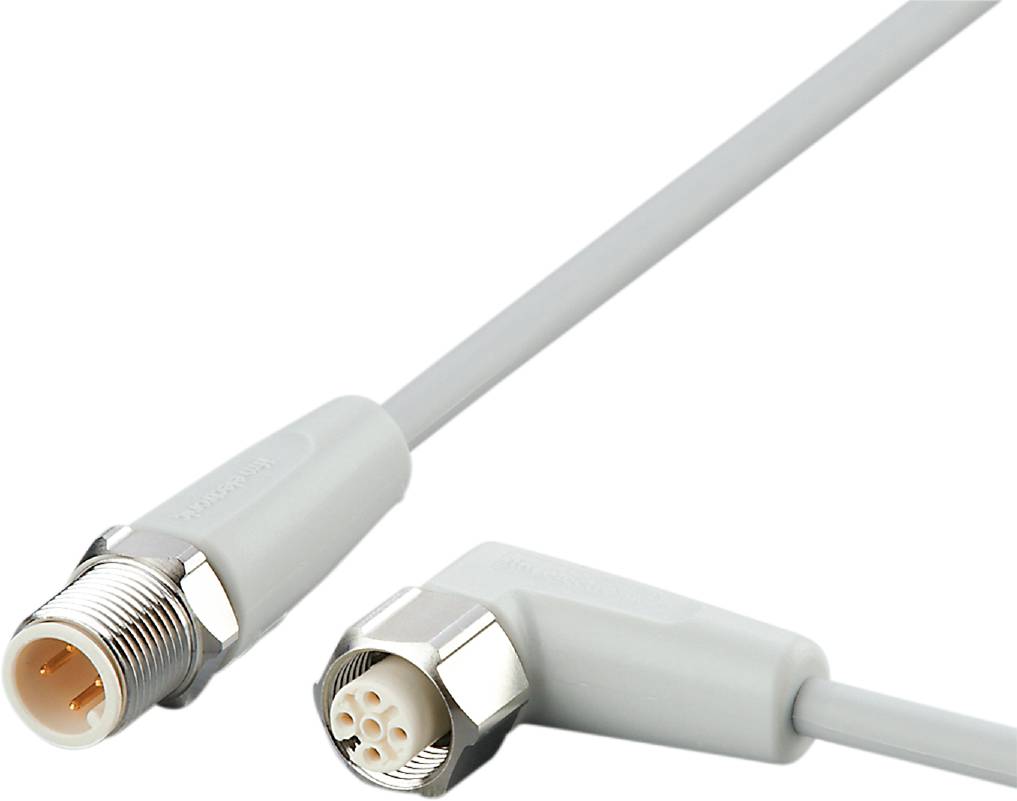

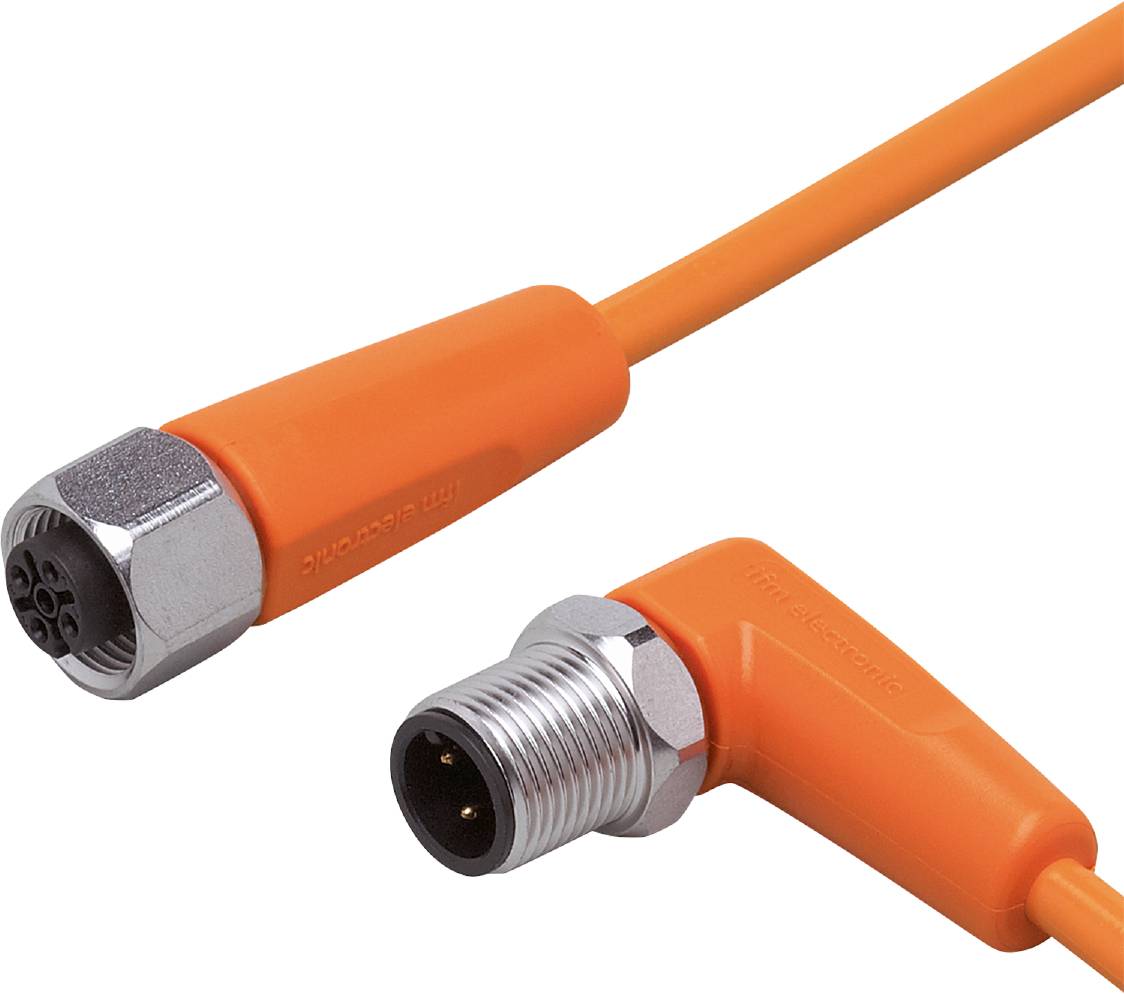

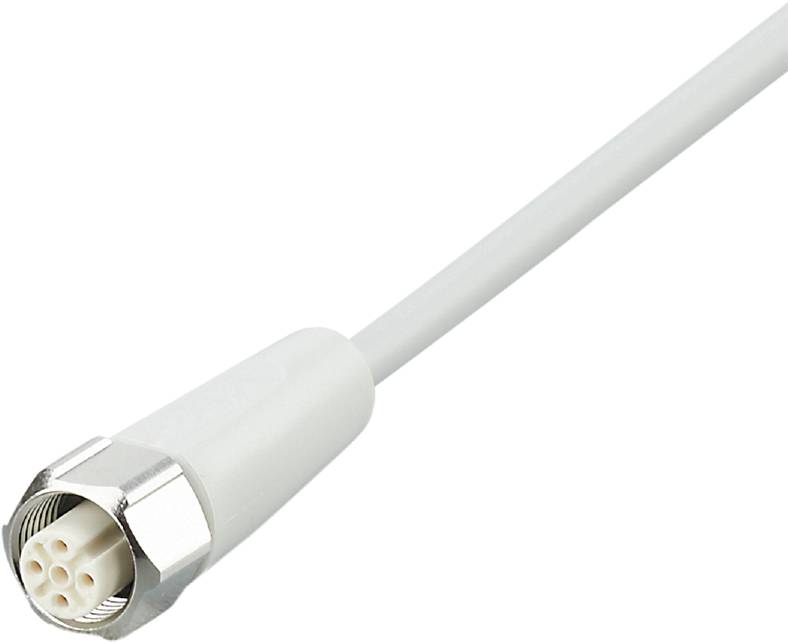

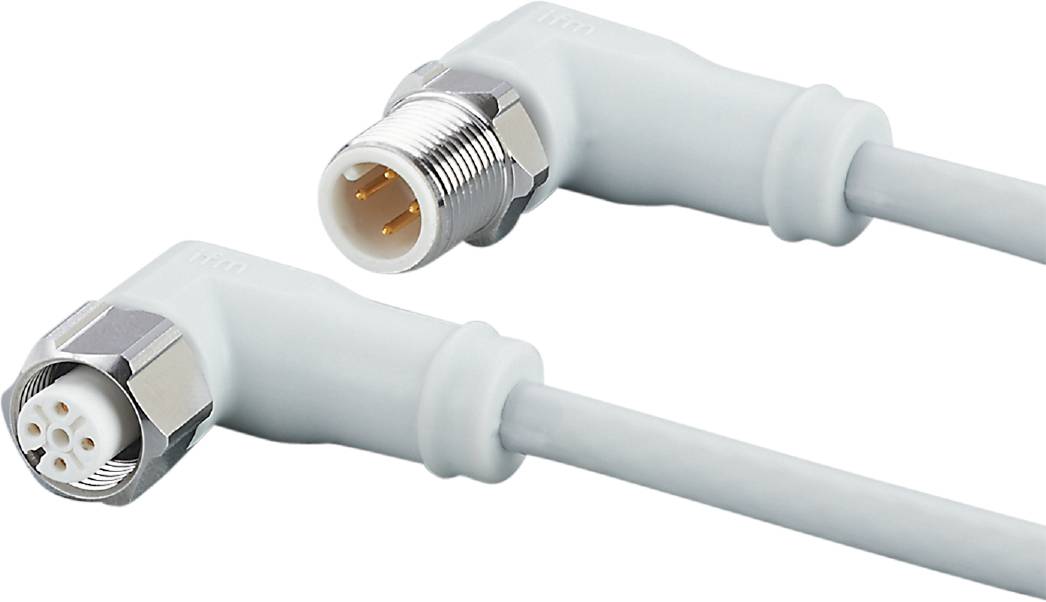

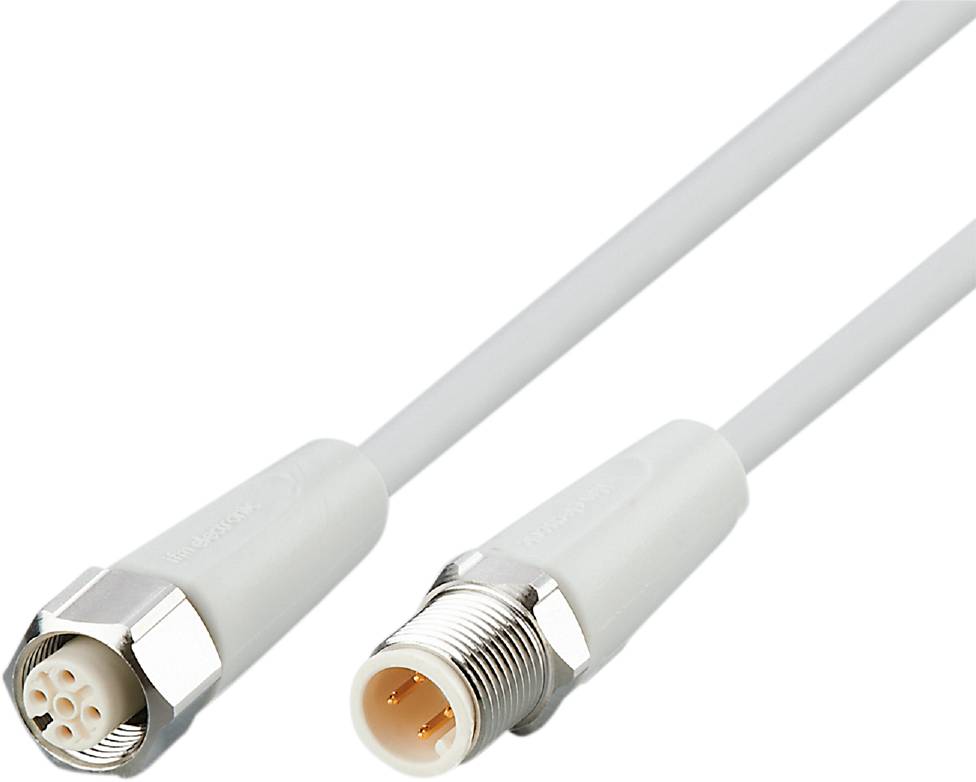

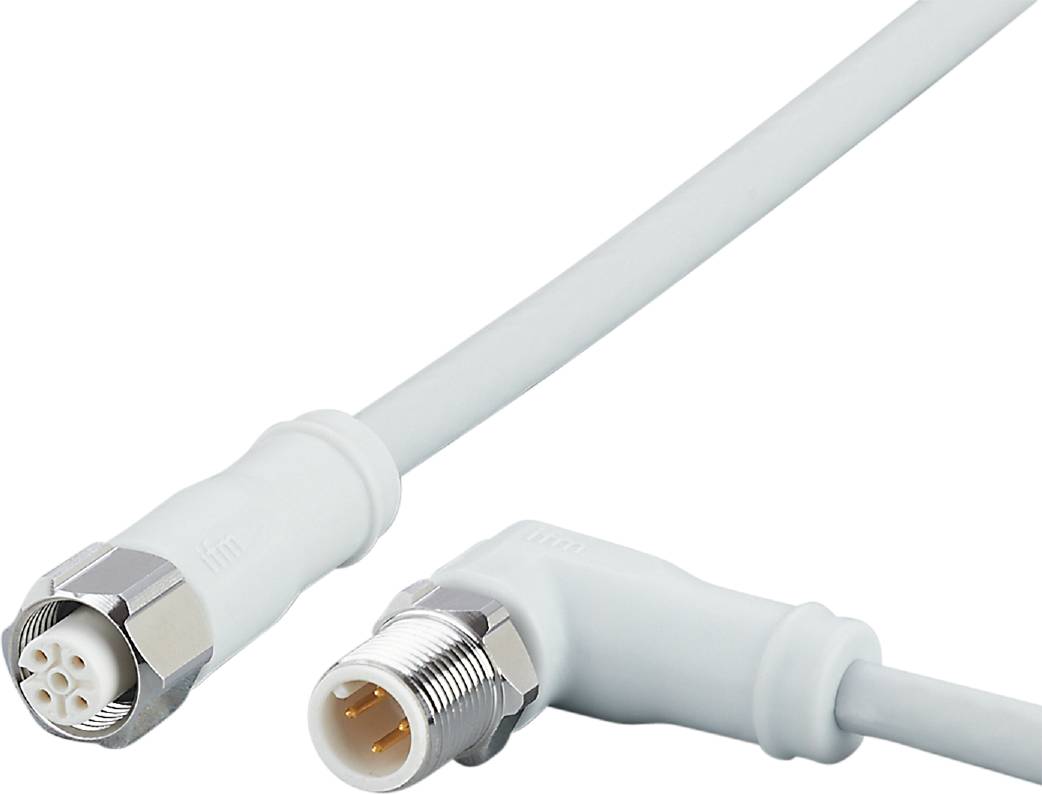

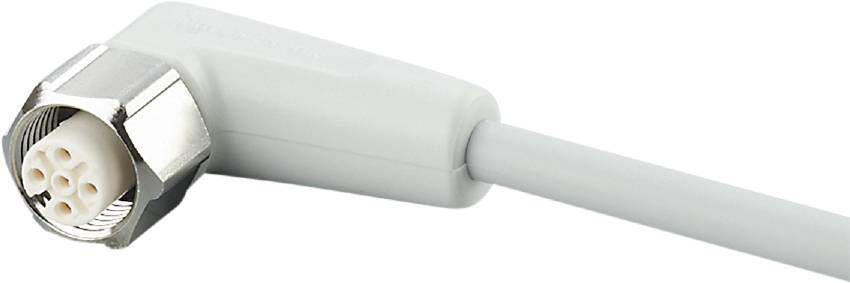

Accessories
