ORBIS Zeitschalttechnik kW-Zähler OB708100 Electricity meter (AC) Digital 63 A MID-approved: No 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electricity meter (AC)
Current load
63 A
Display
Digital
Counter type
Electronic single-phase meter (direct measurement)
Operating voltage
230 V AC
Datasheet (PDF)
Number
Total (€ 92.43 / piece)
€ 92.43
plus VAT.
14-day return policy included
Highlights & Details

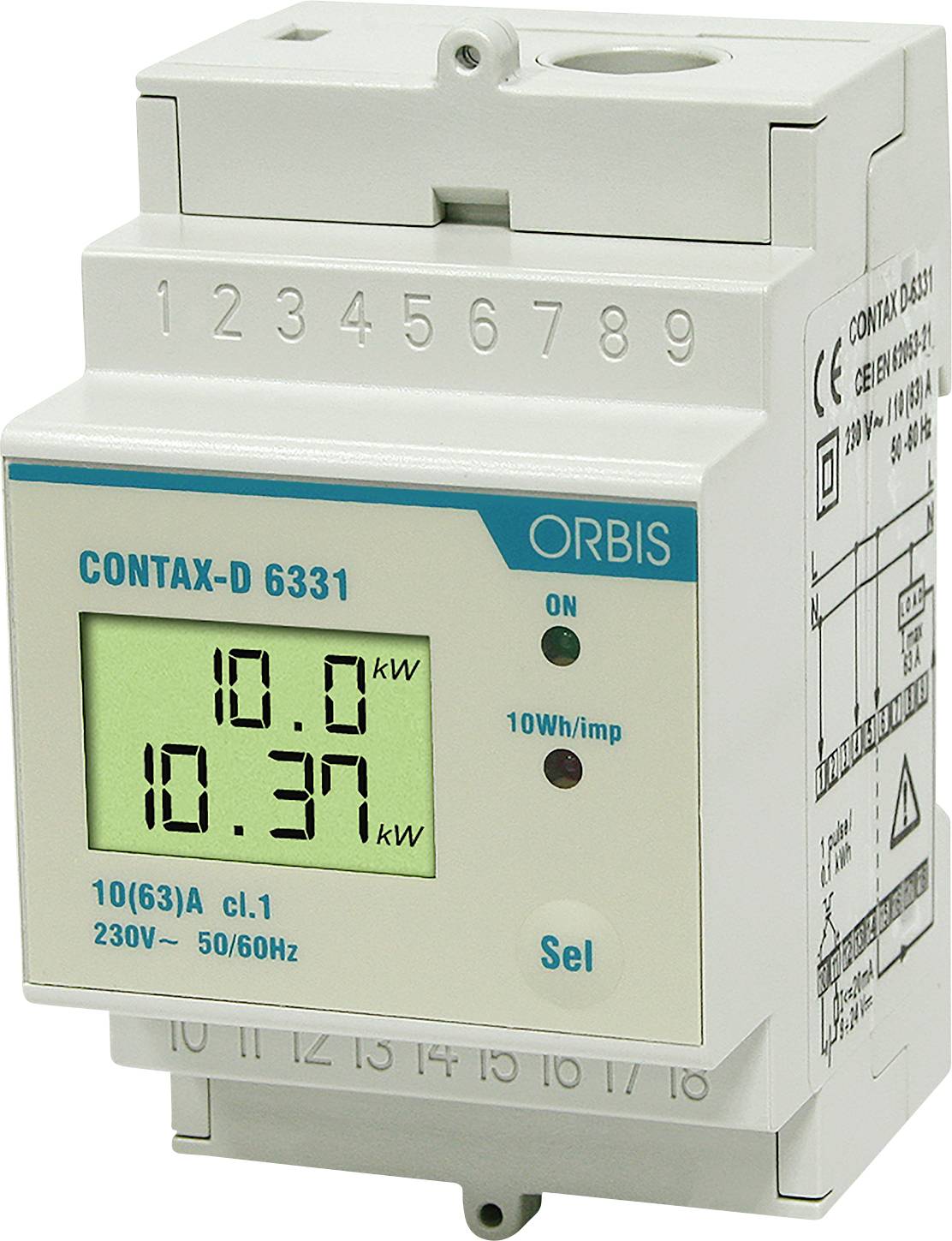

CONTAX D-6331 S0 digital AC meter 1-phase
- Alternating current for cap rail mounting (3 TE / DIN-rail 35 mm)
- Integrated S0-impulse interface (according to EN 62053-31 / DIN 43864) for energy recording
- Digital LCD display with 7 digits for total counter and 5 digits for resettable counter
- Direct measurement up to 63 A continuous current
Technical specifications
- Pulse constant S0: 100 Imp/kWh
- Pulse constant LED: 10 Wh/IMP (100 pulses/kWh)
- Protection type IP20 (casing), IP51 (front side)
- Operating temperature: -10 °C to + +45 °C.
- Mounting type: DIN-top hat rail (EN 60715)
- Counter type
Electronic single-phase meter (direct measurement)
- Product type
Electricity meter (AC)
- Current load
63 A
- Display
Digital
- Operating voltage
230 V AC
- Special feature
Integrated LCD-display with resettable counter and S0-interface for remote reading
- Factory colour
White
Grey
- Dim
(L x W x H) 45 x 54 x 90 mm
- Weight
200 g
- Starting current
0.04 A
- Starting current
40 mA bei Nennspannung
- Display
LCD display, 7 digit for total counter (not resettable) and 5 digit for time counter (resettable)
- Display range
0 to 99,999.99 kWh
- Type
Single-phase active power meter for top hat rail mounting (3 TE)
- Output
27 mA
- Operating voltage
230 V AC
- Self-consumption
2.5 W
- Recess width
54 mm
- Recess length
45 mm
- Frequency
50 Hz
- Accuracy class
Class 1
- MID-approved
No
- Reading type
Active energy
- Nominal voltage range
195 up to 253 V AC
- Mains voltage (max.)
253 V AC
- Mains voltage (min.)
195 V AC
- Width
54 mm
- Height
90 mm
- Length
45 mm
- Current (max.)
63 A
- Current (min.)
0.04 A
- Current range
0.04 up to 63 A
- Type
kW-Zähler
- Effective power range
Bis ca. 14,5 kW
- Effective current range
0,04 A bis 63 A
- Power factor Cos φ (max.)
1
- Power factor Cos φ (min.)
0.5
- Power (max.)
15.5 kW
- Active power (min.)
9.2 W
- Active power range
9.2 up to 15.5 kW
Documents & Downloads
Datasheet
Datasheet 3828168 ORBIS Zeitschalttechnik kW-Zähler OB708100 Electricity meter (AC) Digital 63 A MID-approved: No 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3828168 ORBIS Zeitschalttechnik kW-Zähler OB708100 Electricity meter (AC) Digital 63 A MID-approved: No 1 pc(s)
Description
Digital energy meter for circuits up to 63 ampere. Pulse output "S0" for connecting the device to a power monitoring system. Subcounter with reset to "0".
This text is machine translated.
This text is machine translated.
Features
- Digital LCD-display (10 mm digit height)
- Optical S0 impulse output (optocoupler)
- Integrated LED impulse indication (10 Wh/impulse)
- Resettable intermediate counter (5 digits)
- Lead-sealable terminal cover
- Top hat rail quick fastening (35 mm)
Scope of delivery
- 1x Orbis CONTAX D-6331 S0 electricity meter (item no. OB708100)
- operating and installation instructions
