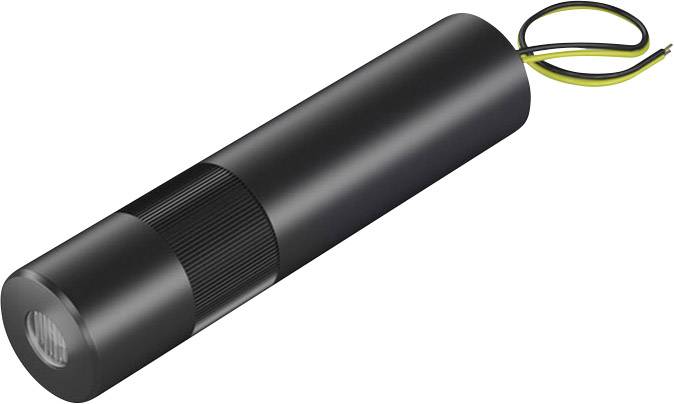

Picotronic Laser module Line Blue 10 mW LE 405-10-5-F (14x60)
Product type
Laser module
Emission characteristics
Line
Wavelength
405 nm
Power
10 mW
(Ø)
14 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 855.00 / piece)
€ 855.00
incl. VAT
Only 7 Piece(s) available
Highlights & Details
Insulated line laser, blue
- Blue
- Laser category: 1
- Emission characteristics: Line
Technical specifications
- Product type
Laser module
- Type
LE 405-10-5-F (14x60)
- Emission characteristics
Line
- Focus properties
Selectable focus
- Factory colour
Blue
- Wavelength
405 nm
10 mW

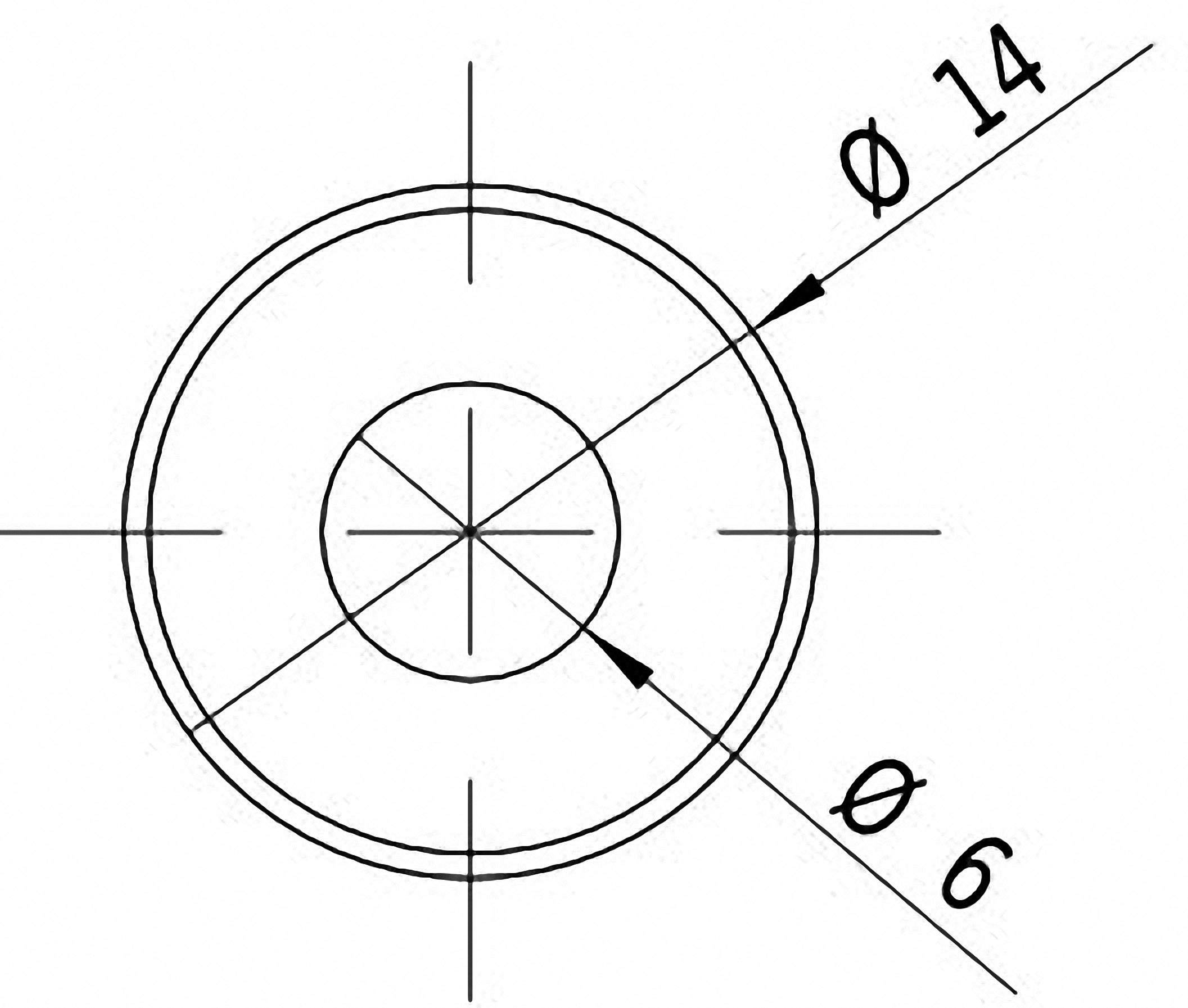

- (Ø)
14 mm
- Length
60 mm
- Laser category
1
- Angular aperture
90°
- Beam divergence
0.6 mrad
- Clearance
5 m
- Operating voltage
5 V DC
- Operating current
61 mA
- Material
Aluminium

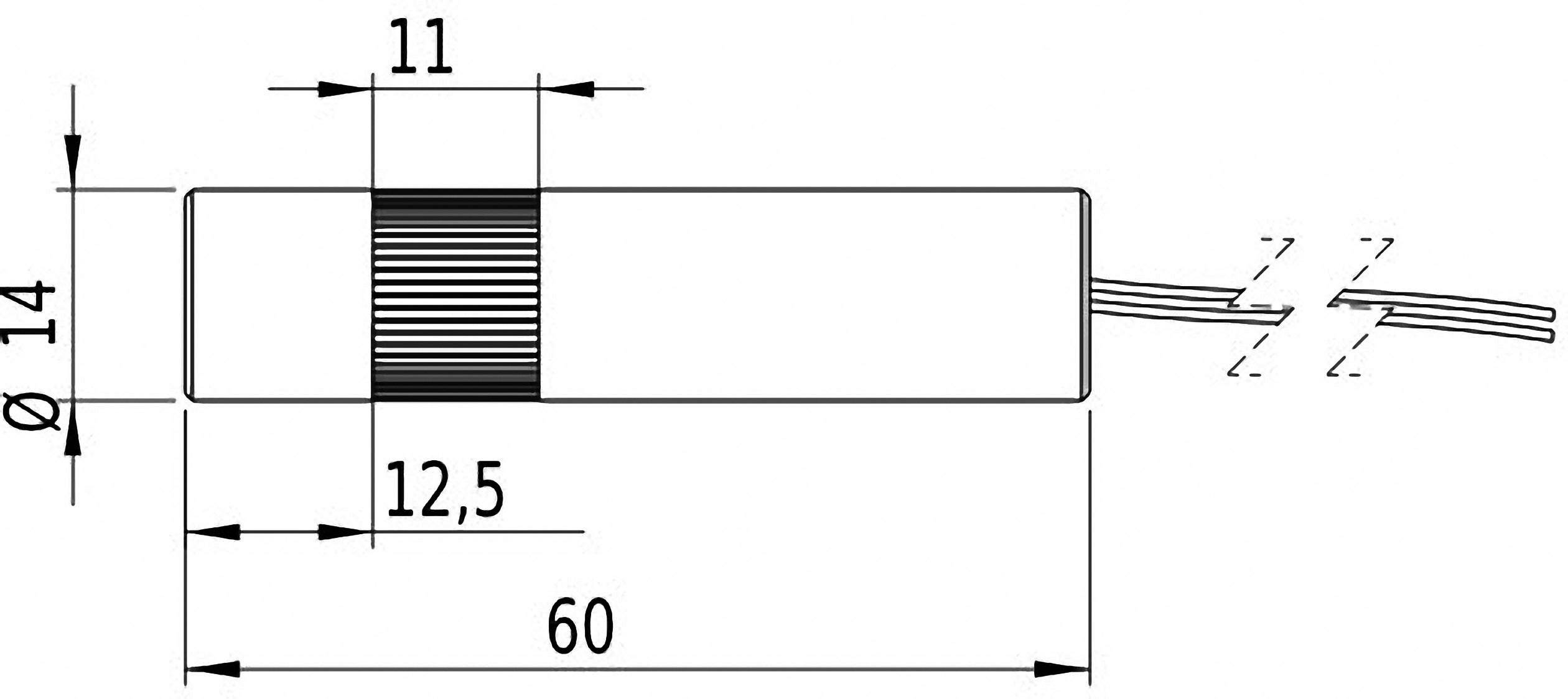

- Dim
(Ø x L) 14 mm x 60 mm
- Weight
18 g
- RoHS-compliant
Yes
- Max. temperature
50 °C
- Min. temperature
-10 °C
Documents & Downloads
Datasheet
Datasheet 1283409 Picotronic Laser module Line Blue 10 mW LE 405-10-5-F (14x60)
User & Safety Instructions
User & Safety Instructions 1283409 Picotronic Laser module Line Blue 10 mW LE 405-10-5-F (14x60)
Information
Information 1283409 Picotronic Laser module Line Blue 10 mW LE 405-10-5-F (14x60)
Conformity certificate
Conformity certificate 1283409 Picotronic Laser module Line Blue 10 mW LE 405-10-5-F (14x60)
Description
Hints
Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
