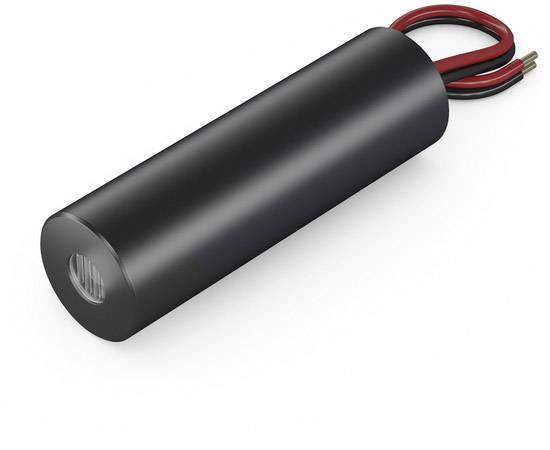

Picotronic Laser module Line Red 15 mW LH 635-15-3 (14x45)
Product type
Laser module
Emission characteristics
Line
Wavelength
635 nm
Power
15 mW
Laser category
2
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 295.00 / piece)
€ 295.00
incl. VAT
Only 10 Piece(s) available
Highlights & Details
Laser module line
- Red
- Laser category: 2
- Emission characteristics: Line
Technical specifications
- Connection cable 100 mm
- Product type
Laser module
- Type
LH 635-15-3 (14x45)
- Emission characteristics
Line
- Focus properties
3000 mm fixed-focus
- Factory colour
Red
- Wavelength
635 nm
15 mW
- Laser category
2
- Angular aperture
90°
- Beam divergence
1.0 mrad
- Clearance
3 m
- Operating voltage
3 V DC
- Operating current
65 mA
- Material
Aluminium
- RoHS-compliant
Yes
- Max. temperature
+50 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 1696003 Picotronic Laser module Line Red 15 mW LH 635-15-3 (14x45)
User & Safety Instructions
User & Safety Instructions 1696003 Picotronic Laser module Line Red 15 mW LH 635-15-3 (14x45)
Information
Information 1696003 Picotronic Laser module Line Red 15 mW LH 635-15-3 (14x45)
Conformity certificate
Conformity certificate 1696003 Picotronic Laser module Line Red 15 mW LH 635-15-3 (14x45)
Description
Hints
Class 2 laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
