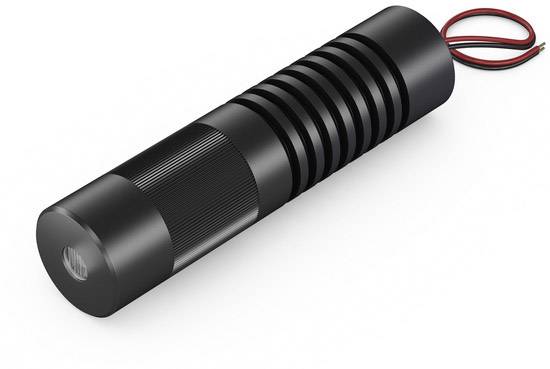

Picotronic Laser module Line Green 15 mW LC 520-15-24-F (16 x 65) - QCW
Product type
Laser module
Emission characteristics
Line
Wavelength
520 nm
Power
15 mW
Laser category
2M
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 585.00 / piece)
€ 585.00
incl. VAT
Only 6 Piece(s) available
Highlights & Details
Laser module line
- Green
- Laser category: 2M
- Emission characteristics: Line
Technical specifications
- Connection cable 100 mm
- Product type
Laser module
- Type

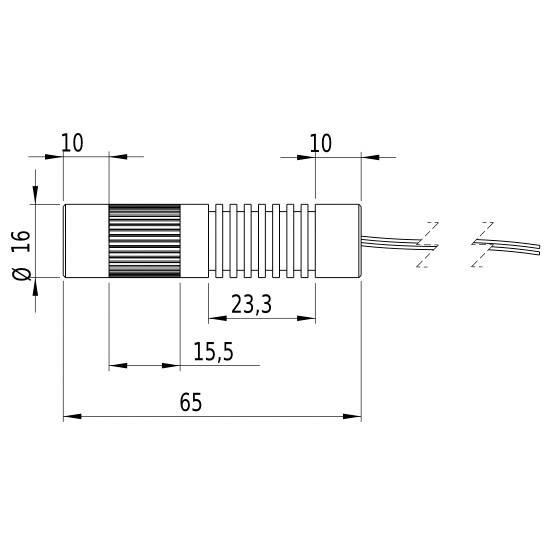

LC 520-15-24-F (16 x 65) - QCW
- Emission characteristics
Line
- Focus properties
Selectable focus
- Factory colour
Green
- Wavelength
520 nm
15 mW
- Laser category
2M
- Angular aperture
90°
- Beam divergence
0.4 mrad
- Clearance
7 m
- Operating voltage
24 V DC
- Operating current
50 mA
- Material
Aluminium
- RoHS-compliant
Yes
- Max. temperature
+60 °C
- Min. temperature
-10 °C
Documents & Downloads
Datasheet
Datasheet 1695865 Picotronic Laser module Line Green 15 mW LC 520-15-24-F (16 x 65) - QCW
User & Safety Instructions
User & Safety Instructions 1695865 Picotronic Laser module Line Green 15 mW LC 520-15-24-F (16 x 65) - QCW
Information
Information 1695865 Picotronic Laser module Line Green 15 mW LC 520-15-24-F (16 x 65) - QCW
Conformity certificate
Conformity certificate 1695865 Picotronic Laser module Line Green 15 mW LC 520-15-24-F (16 x 65) - QCW
Description
Hints
Class 2M: laser radiation! Observe safety instructions! Never look into the beam (may damage your retina).
