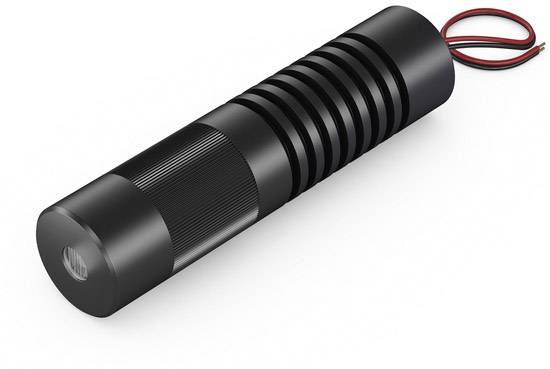

Black, cylindrical device with cables on the back, possibly an electronic component or tool.<br><br>(Note: The translation is already in English, so no substantial changes were needed. The text appears to be a neutral, descriptive statement about a device.)

Black, cylindrical device with cables on the back, possibly an electronic component or tool.<br><br>(Note: The translation is already in English, so no substantial changes were needed. The text appears to be a neutral, descriptive statement about a device.)

Technical drawing of a circle with two diameters: outer diameter Ø16 and inner diameter Ø5. Both diameters are labelled.

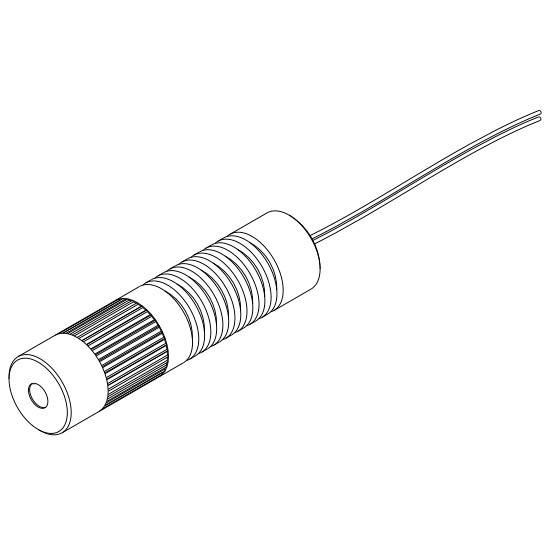

Illustration of a cylindrical microphone with cable, showing details of structure and texture.

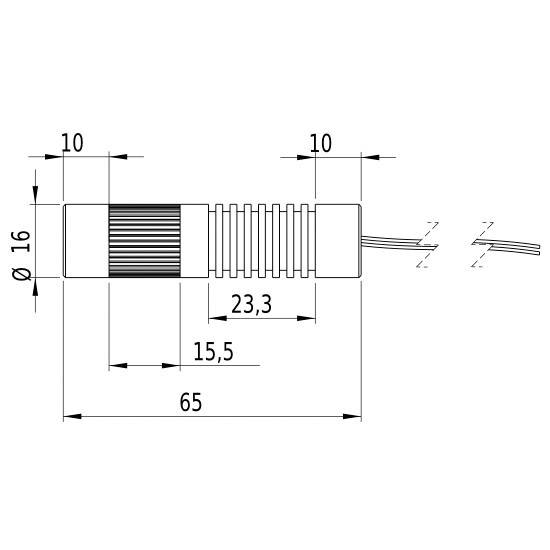

Technical drawing of a cylindrical component with a ribbed central section. Dimensions: Length 65 mm, diameter 16 mm.

1/4

Picotronic

Datasheet (PDF)

English

Dispatches on Wed, 16 Sep

5 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 550.42 / piece)

€ 550.42

plus VAT.

Only 5 Piece(s) available

Report legal concerns

Highlights & Details

Laser module line

Green
Laser category: 1
Emission characteristics: Line

Technical specifications

Connection cable 100 mm

Type: LC 520-0. 1-24-F (16x65)-MV

Emission characteristics: Line

Focus properties: Selectable focus

Factory colour: Green

Wavelength: 520 nm

: 0.1 mW

Laser category: 1

Angular aperture: 90°

Beam divergence: 0.4 mrad

Clearance: 1 m

Operating voltage: 24 V DC

Operating current: 20 mA

Material: Aluminium

RoHS-compliant: Yes

Max. temperature: +60 °C

Min. temperature: -10 °C

Product type: Laser module

Documents & Downloads

Datasheet

English

Datasheet 1695978 Picotronic Laser module Line Green 0.1 mW LC 520-0. 1-24-F (16x65)-MV

User & Safety Instructions

European union

User & Safety Instructions 1695978 Picotronic Laser module Line Green 0.1 mW LC 520-0. 1-24-F (16x65)-MV

Information

European union

Information 1695978 Picotronic Laser module Line Green 0.1 mW LC 520-0. 1-24-F (16x65)-MV

Conformity certificate

Conformity certificate 1695978 Picotronic Laser module Line Green 0.1 mW LC 520-0. 1-24-F (16x65)-MV

Description

Hints

Class 1: laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
