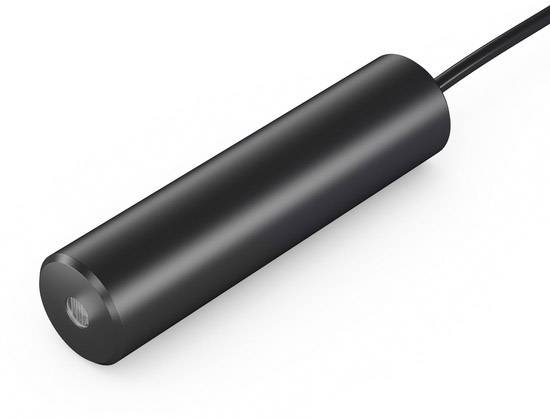

Picotronic Laser module Line Red 16 mW LH 650-16-24 (20 x 80)-C500-NT
Product type
Laser module
Emission characteristics
Line
Wavelength
650 nm
Power
16 mW
Laser category
2
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 329.00 / piece)
€ 329.00
incl. VAT
14-day return policy included
Highlights & Details
Laser module line
- Red
- Laser category: 2
- Emission characteristics: Line
Technical specifications
- Plug-in power supply 500mm
- Product type
Laser module
- Type
LH 650-16-24 (20 x 80)-C500-NT
- Emission characteristics
Line
- Focus properties
1500 mm fixed-focus
- Factory colour
Red
- Wavelength
650 nm
16 mW
- Laser category
2
- Angular aperture
90°
- Beam divergence
1.0 mrad
- Clearance
1.5 m
- Operating voltage
24 V DC
- Operating current
12 mA
- Material
Aluminium
- RoHS-compliant
Yes
- Max. temperature
+50 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 1695856 Picotronic Laser module Line Red 16 mW LH 650-16-24 (20 x 80)-C500-NT
User & Safety Instructions
User & Safety Instructions 1695856 Picotronic Laser module Line Red 16 mW LH 650-16-24 (20 x 80)-C500-NT
Information
Information 1695856 Picotronic Laser module Line Red 16 mW LH 650-16-24 (20 x 80)-C500-NT
Conformity certificate
Conformity certificate 1695856 Picotronic Laser module Line Red 16 mW LH 650-16-24 (20 x 80)-C500-NT
Description
Hints
Class 2 laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
