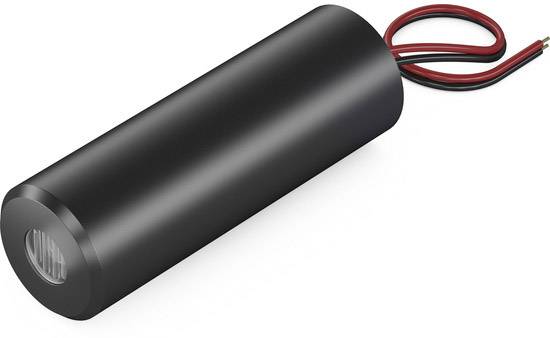

Picotronic Laser module Line Red 2.5 mW LB 650-2. 5-3 (16 x 45)
Product type
Laser module
Emission characteristics
Line
Wavelength
650 nm
Power
2.5 mW
Laser category
1
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 91.99 / piece)
€ 91.99
incl. VAT
Only 2 Piece(s) available
Highlights & Details
Laser module line
- Red
- Laser category: 1
- Emission characteristics: Line
Technical specifications
- Connection cable 100 mm
- Product type
Laser module
- Type

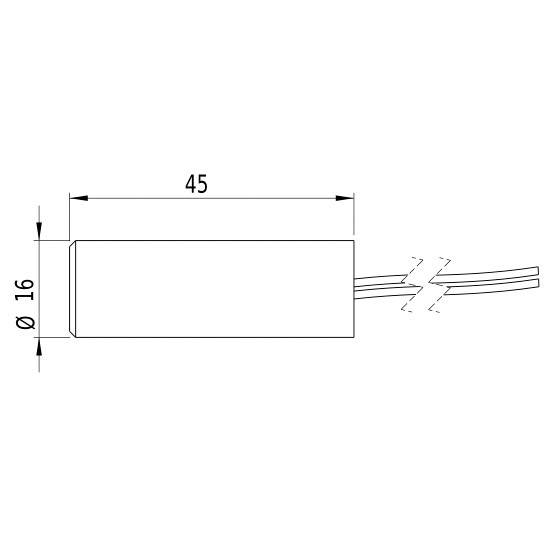

LB 650-2. 5-3 (16 x 45)
- Emission characteristics
Line
- Focus properties
2000 mm fixed-focus
- Factory colour
Red
- Wavelength
650 nm
2.5 mW
- Laser category
1
- Angular aperture
90°
- Beam divergence
0.3 mrad
- Clearance
2 m
- Operating voltage
3 V DC
- Operating current
25 mA
- Material
Aluminium
- RoHS-compliant
Yes
- Max. temperature
+50 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 1695848 Picotronic Laser module Line Red 2.5 mW LB 650-2. 5-3 (16 x 45)
User & Safety Instructions
User & Safety Instructions 1695848 Picotronic Laser module Line Red 2.5 mW LB 650-2. 5-3 (16 x 45)
Information
Information 1695848 Picotronic Laser module Line Red 2.5 mW LB 650-2. 5-3 (16 x 45)
Conformity certificate
Conformity certificate 1695848 Picotronic Laser module Line Red 2.5 mW LB 650-2. 5-3 (16 x 45)
Description
Hints
Class 1: laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
