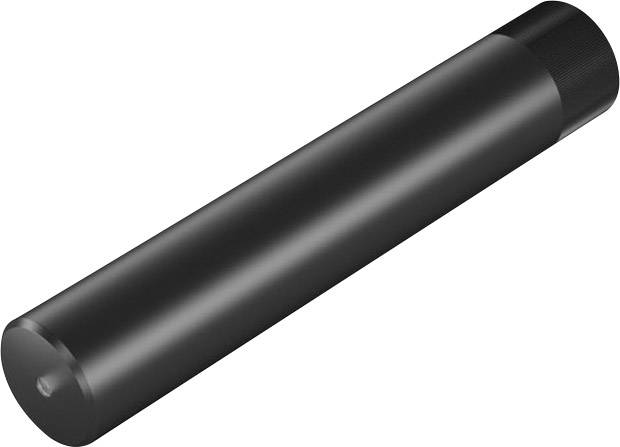

Picotronic Laser module Line Red 5 mW LB 650-5-3 (22 x 120) 10 DEG-AP
Product type
Laser module
Emission characteristics
Line
Wavelength
650 nm
Power
5 mW
(Ø)
22 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 189.99 / piece)
€ 189.99
incl. VAT
Only 7 Piece(s) available
Highlights & Details
Line laser, red
- Red
- Laser category: 2M
- Emission characteristics: Line
Technical specifications
- Line Width:< 1mm (2.4 m)
- Product type
Laser module
- Type
LB 650-5-3 (22 x 120) 10 DEG-AP
- Emission characteristics
Line
- Focus properties
2400 mm fixed-focus
- Factory colour
Red
- Wavelength
650 nm
5 mW

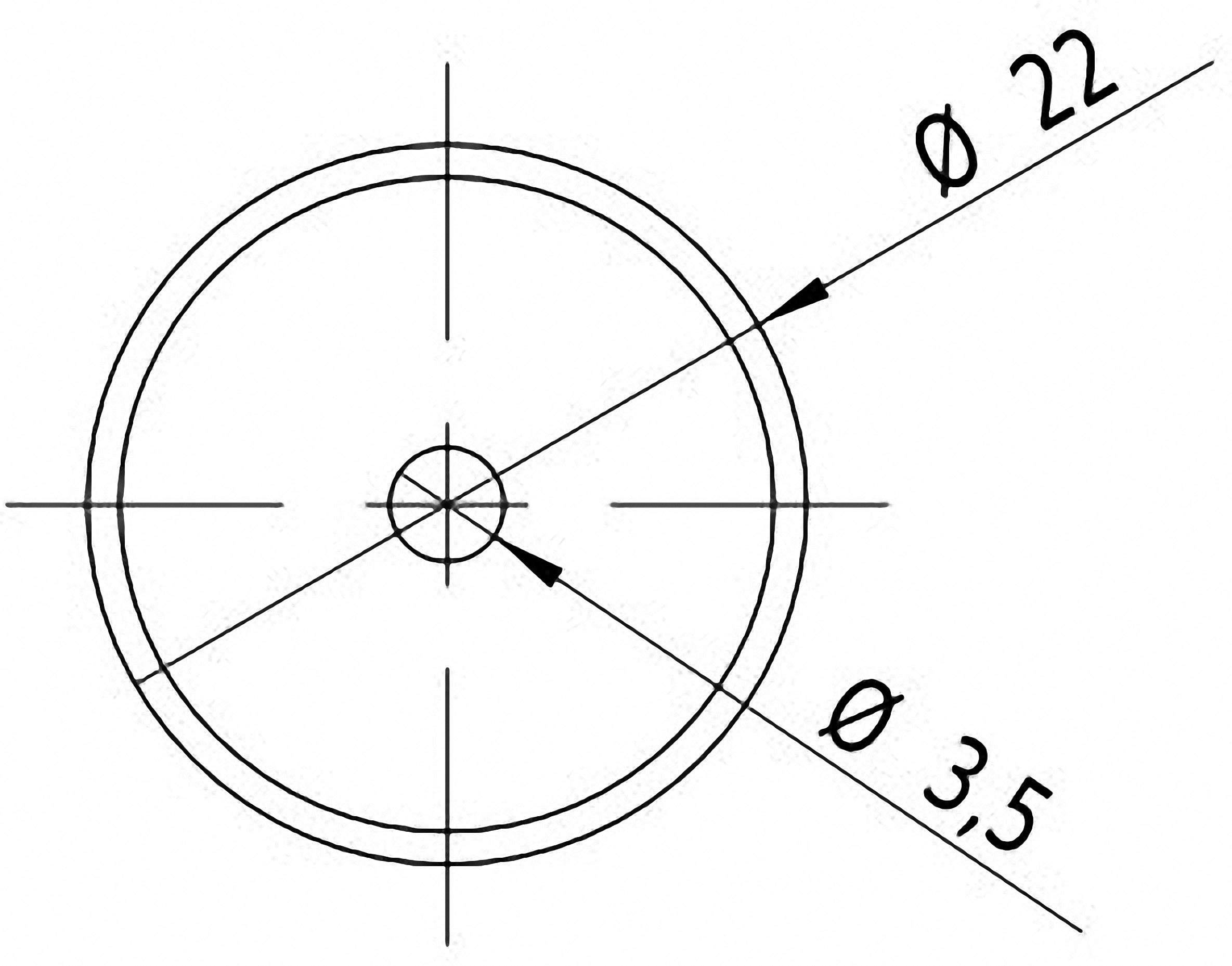

- (Ø)
22 mm
- Length
120 mm
- Laser category
2M
- Angular aperture
10°
- Beam divergence
0.3 mrad
- Clearance
2.4 m
- Operating voltage
3 V DC
- Operating current
20 mA
- Material
Aluminium

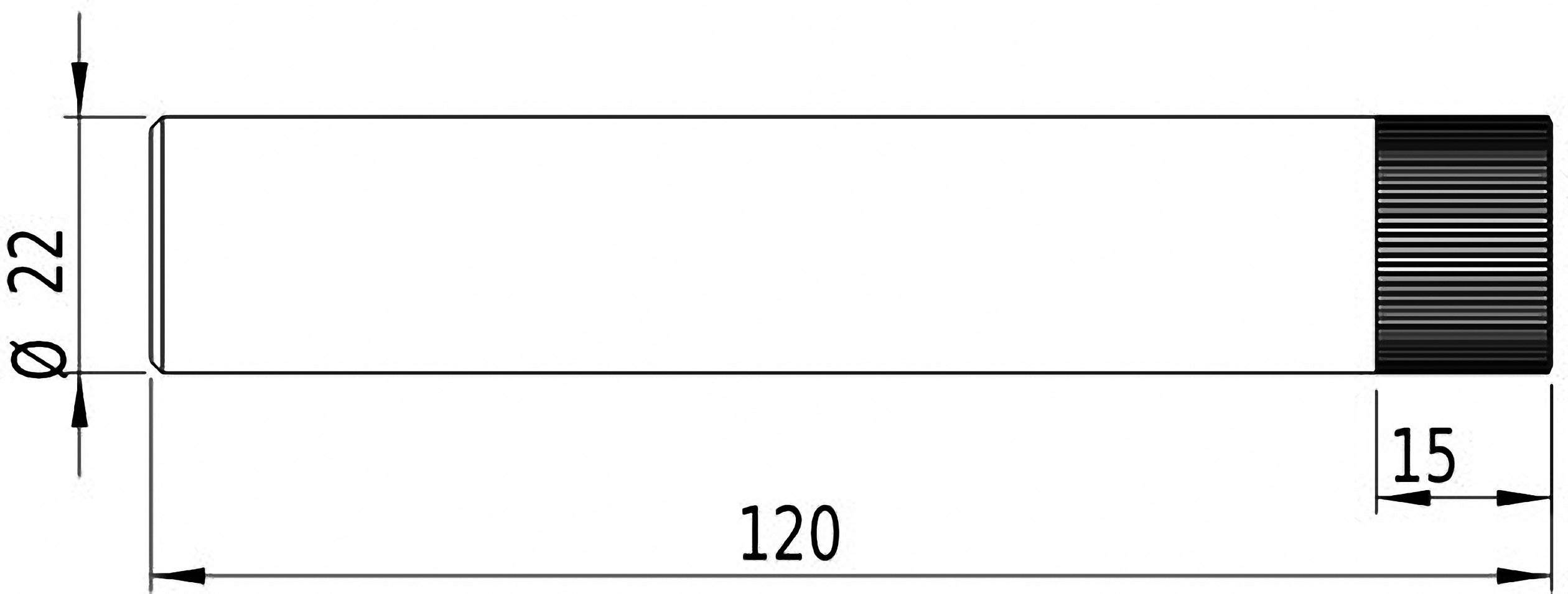

- Dim
(Ø x L) 22 mm x 120 mm
- Weight
94.6 g
- RoHS-compliant
Yes
- Max. temperature
50 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 1283437 Picotronic Laser module Line Red 5 mW LB 650-5-3 (22 x 120) 10 DEG-AP
User & Safety Instructions
User & Safety Instructions 1283437 Picotronic Laser module Line Red 5 mW LB 650-5-3 (22 x 120) 10 DEG-AP
Information
Information 1283437 Picotronic Laser module Line Red 5 mW LB 650-5-3 (22 x 120) 10 DEG-AP
Conformity certificate
Conformity certificate 1283437 Picotronic Laser module Line Red 5 mW LB 650-5-3 (22 x 120) 10 DEG-AP
Description
Scope of delivery

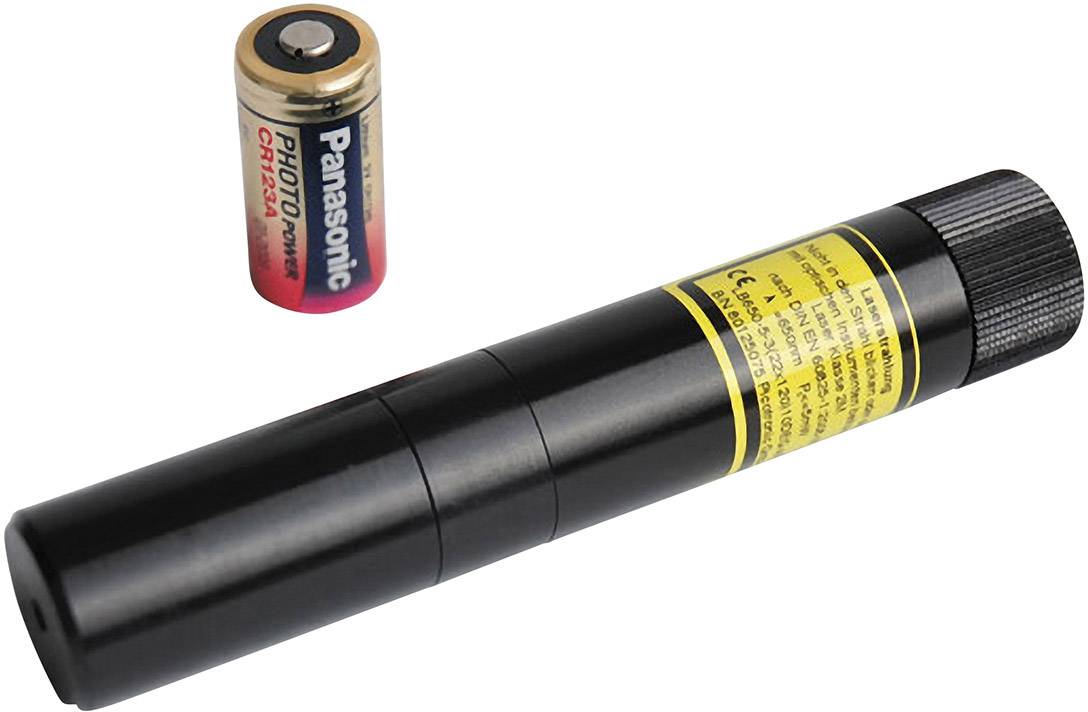

- Including batteries
- This text is machine translated.
Hints
Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
