Name: Siemens 3VA1463-4EF32-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 441 - 630 A Switching voltage (max.): 69
Brand: Siemens
SKU: 2862492

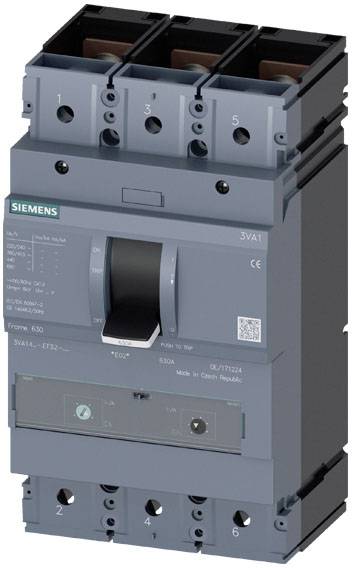

A Siemens electrical circuit breaker, Model 3VA1, grey, with product markings and technical specifications on the front.

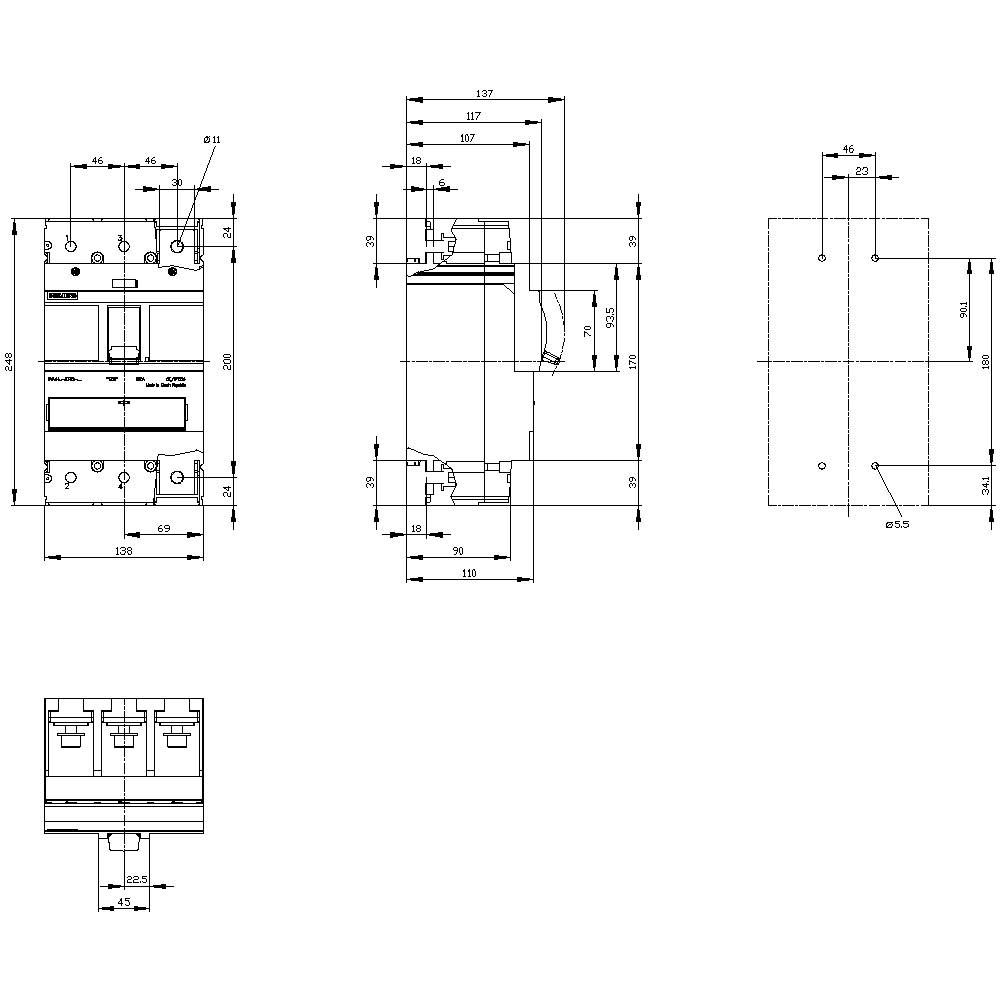

Technical drawing of a three-pole circuit breaker with dimensions in millimetres, showing front, side, and rear views.

1/2

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

630 A

Connection

Screws

Packaging type

Piece

Type

3VA1463-4EF32-0AA0

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Suitability for use: Plant protectionElectrical connection arrangement / main circuit arrangement: Front connectionActuator type: Rocker switchMechanical life (cycles) / typical: 15000Electrical life (switching cycles) / at AC-1 / at 380/415 V: 4000Electrical life (switching cycles) / at 1/2 current rating / at AC-1 / at 380/415 V: 12000Electrical life (switching cycles) / at AC-1 / at 690 V: 2700Product component / Adjustment button: YesProduct extension / optional / motor drive: YesDevice self-protection: YesDesign of surface / connections / on switch top (N, 1, 3, 5): SilverDesign of surface / connections / on switch bottom (N, 2, 4, 6): SilverInsulation voltage 800 VPower loss/maximum 192.9 W.Type of protection function / overcurrent trip: LIExecution of the ground fault monitoring: NoneType of I trigger / adjustable: YesBreaking capacity: Operating short circuit current (ICS) / at 240 V: 55 kABreaking capacity: Operating short circuit current (ICS) / at 690 V: 5 kABreaking capacity: Limit short circuit current (ICU) / at 240 V: 55 kABreaking capacity: Limit short circuit current (ICU) / at 690 V: 7 kASwitch-on capacity short-circuit current (ICM) / at 240 V: 121 kASwitch-on capacity short-circuit current (ICM) / at 690 V: 10.5 kAProduct property / for L tripping / adjustable: YesProduct property / for N-conductor protection / adjustable: YesType of connectable conductor cross-sections / for flat rail connection / minimum 20 x 1 mmType of connectable conductor cross-sections / for flat rail connections / maximum: 35 x 10 mm

Packaging type: Piece

Product type: Circuit breaker

Type: 3VA1463-4EF32-0AA0

Amperage adjustment range (min.): 441 A

Amperage adjustment range (max.): 630 A

Adjustment range (amperage): 441 - 630 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC
500 V DC

Mounting type: Fixed

Min. temperature: -25 °C

Max. temperature: +70 °C

Breaking capacity rating: S

OCR type: TM240

Connection: Screws

: IP40

Depth: 110 mm

Width: 138 mm

Height: 248 mm

Dim: (W x H x D) 138 x 248 x 110 mm

Content: 1 pc(s)

RoHS-compliant: Yes

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2862492 Siemens 3VA1463-4EF32-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 441 - 630 A Switching voltage (max.): 69

User & Safety Instructions

User & Safety Instructions 2862492 Siemens 3VA1463-4EF32-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 441 - 630 A Switching voltage (max.): 69

Description

Circuit breaker 3VA1 IEC frame 630 switching capacity class S ICU=36kA @ 415V 3-pin, system protection TM240, ATAM, In=630A overload protection IR=440A...630A short circuit protection II=4...8 x In flat screw connection compact circuit breaker 3VA1 for starter protection. The 3VA compact circuit breakers from Siemens, an important component of SENTRON protection components for industrial applications and for infrastructure applications, offer effective systems, starter and motor protection by safely shutting down in case of overload and short circuit. The 3VA compact circuit breakers set new standards in flexibility and a wide range of modular accessories. Uniform accessories for several sizes across all series of the 3VA1 and 3VA2 compact circuit breakers. This version of the 3VA compact circuit breaker is characterized above all by: 1. Compact design. 2. Available as a starter protection version to protect electric motors against short circuits. 3. Available as 3-pin version. 4. Depending on the size: Rated operating current from 32 A....200 A. 5. Switching capacity of 55 kA ... 70 kA at 415 V. 6. Fixed and plug-in mounting possible. 7. The series has a thermal/magnetic overcurrent trip unit 8. Modular, easy-to-install internal accessory with multiple functions. 9. Universal accessory platform for all 3VA compact circuit breakers.
