Name: Siemens 3VA2063-8HN36-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 25 - 63 A Switching voltage (max.): 690
Brand: Siemens
SKU: 1701376
Availability: BackOrder

A three-pole Siemens circuit breaker, Model 3VA2, grey, with a toggle lever in the centre.

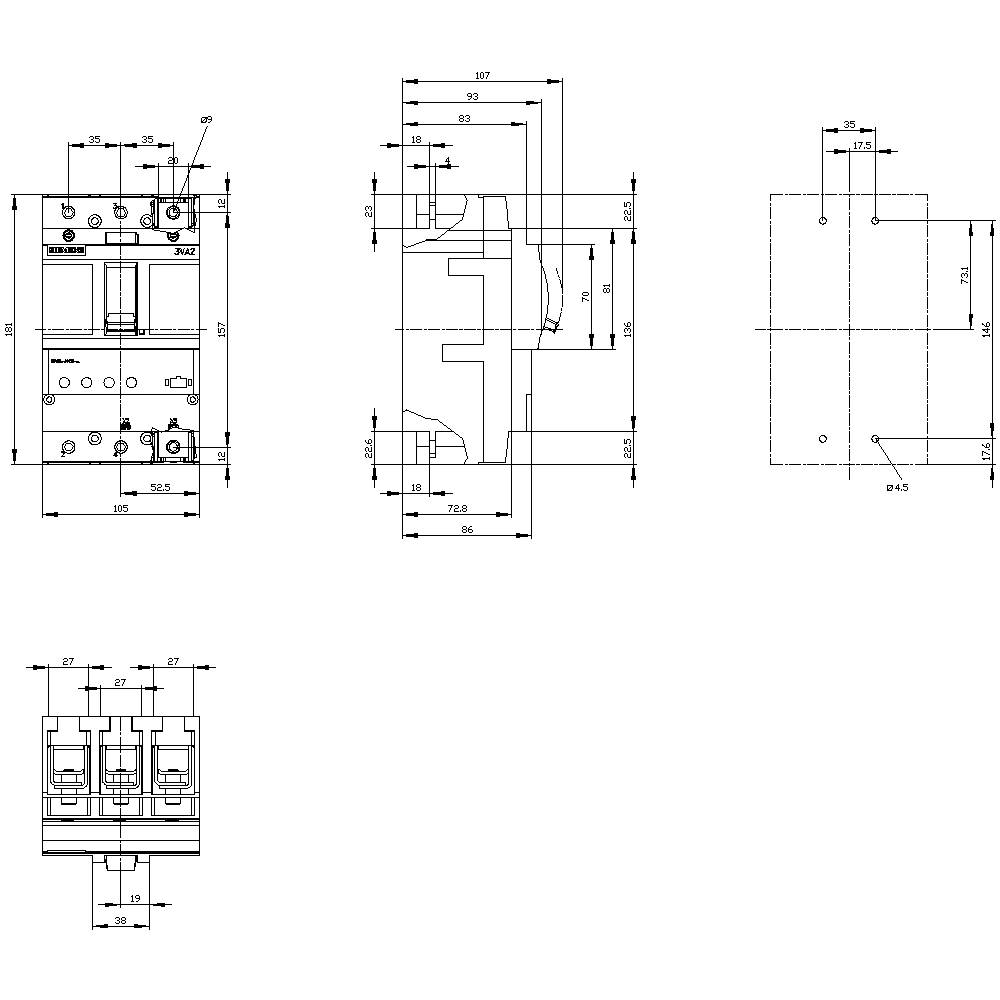

Technical drawing of an electrical component with front, side, and top views, including dimensional specifications in millimetres.

1/2

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

63 A

Connection

Clamp

Packaging type

Piece

Type

3VA2063-8HN36-0AA0

Datasheet (PDF)

Dispatches on Thu 22 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 879.00 / piece)

€ 879.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

MCCB_IEC_FS100_63A_4P_150KA_ETU8_LSIG

Our service for you

Technical specifications

Design: System Protection
Power loss: 3 W
Weight: 2.43 kg
Mechanical life: 20000
Electrical life: 14000
Isolation voltage: 800 V

Packaging type: Piece

Product type: Circuit breaker

Type: 3VA2063-8HN36-0AA0

Amperage adjustment range (min.): 25 A

Amperage adjustment range (max.): 63 A

Adjustment range (amperage): 25 - 63 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Compatible with series: Siemens 3VA series

Compatible with: Siemens

Mounting type: Fixed

Min. temperature: -25 °C

Max. temperature: +70 °C

Breaking capacity rating: L

OCR type: ETU350

Connection: Clamp

: IP40

Depth: 86 mm

Width: 105 mm

Height: 181 mm

Dim: (W x H x D) 105 x 181 x 86 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 0

: 0

: 63 A

: 3

: 0

: 3 W

: IP40

: Front side

: FALSE

: Frame clamp

: Rocker lever

: FALSE

: 150 kA

: TRUE

: FALSE

: TRUE

: Built-in device fixed built-in technique

: TRUE

: TRUE

UKCA: not relevant

Variants(All information include VAT, plus shipping costs)

Amperage adjustment range (max.)

Amperage adjustment range (min.)

Siemens 3VA1020-4ED36-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 20 - 20 A Switching voltage (max.): 690 V AC (W x H x D) 76.2 x 130 x 70 mm

Item no:1700000

Dispatches on Thu 22 Oct

Conrad Electronic

20 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 319.00^*

Siemens 3VA1025-4ED46-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 25 - 25 A Switching voltage (max.): 690 V AC (W x H x D) 101.6 x 130 x 70 mm

Item no:1705404

Dispatches on Thu 22 Oct

Conrad Electronic

25 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 399.00^*

Siemens 3VA1032-4ED32-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 32 - 32 A Switching voltage (max.): 690 V AC (W x H x D) 76.2 x 130 x 70 mm

Item no:1703153

Dispatches on Thu 22 Oct

Conrad Electronic

32 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 285.00^*

Siemens 3VA1040-2ED32-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 40 - 40 A Switching voltage (max.): 690 V AC (W x H x D) 76.2 x 130 x 70 mm Piece

Item no:1706329

Dispatches on Thu 22 Oct

Conrad Electronic

40 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 265.00^*

Siemens 3VA1040-3ED36-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 40 - 40 A Switching voltage (max.): 690 V AC (W x H x D) 76.2 x 130 x 70 mm Piece

Item no:1706146

Dispatches on Thu 22 Oct

Conrad Electronic

40 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 309.00^*

Siemens 3VA1040-3ED42-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 40 - 40 A Switching voltage (max.): 690 V AC (W x H x D) 101.6 x 130 x 70 mm Piece

Item no:1700749

Dispatches on Thu 22 Oct

Conrad Electronic

40 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 359.00^*

Siemens 3VA1050-3ED36-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 50 - 50 A Switching voltage (max.): 690 V AC (W x H x D) 76.2 x 130 x 70 mm Piece

Item no:1700397

Dispatches on Thu 22 Oct

Conrad Electronic

50 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 309.00^*

Siemens 3VA1063-2ED42-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 63 - 63 A Switching voltage (max.): 690 V AC (W x H x D) 101.6 x 130 x 70 mm Piece

Item no:1700646

Dispatches on Thu 22 Oct

Conrad Electronic

63 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 345.00^*

Siemens 3VA1063-2ED46-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 63 - 63 A Switching voltage (max.): 690 V AC (W x H x D) 101.6 x 130 x 70 mm Piece

Item no:1700894

Dispatches on Thu 22 Oct

Conrad Electronic

63 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 389.00^*

Siemens 3VA1063-3ED32-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 63 - 63 A Switching voltage (max.): 690 V AC (W x H x D) 76.2 x 130 x 70 mm Piece

Item no:1700527

Dispatches on Thu 22 Oct

Conrad Electronic

63 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 275.00^*

Documents & Downloads

Datasheet

Datasheet 1701376 Siemens 3VA2063-8HN36-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 25 - 63 A Switching voltage (max.): 690

User & Safety Instructions

User & Safety Instructions 1701376 Siemens 3VA2063-8HN36-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 25 - 63 A Switching voltage (max.): 690

Description

circuit breaker 3VA2 IEC frame 100 breaking capacity class L Icu=150kA @ 415 V 4pole, line protection ETU860, LSIG, In=63a overload protection Ir=25A ...63A short circuit protection Isd=0,6..10x In, iI=1,5..12x In neutral protection adjustable (off, upto 160%) groundfault, switchable ig=0,25...1 x In, tg=0,05-0,8s cable connection
